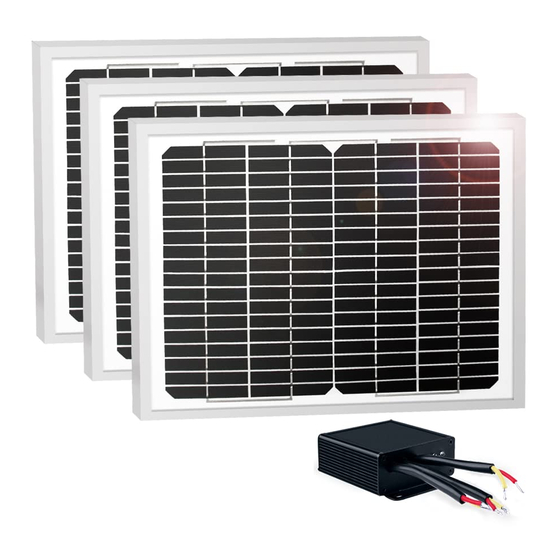

TSP30W 30W Solar Panel Charging Kit User Manual
Item No.: TSP30W

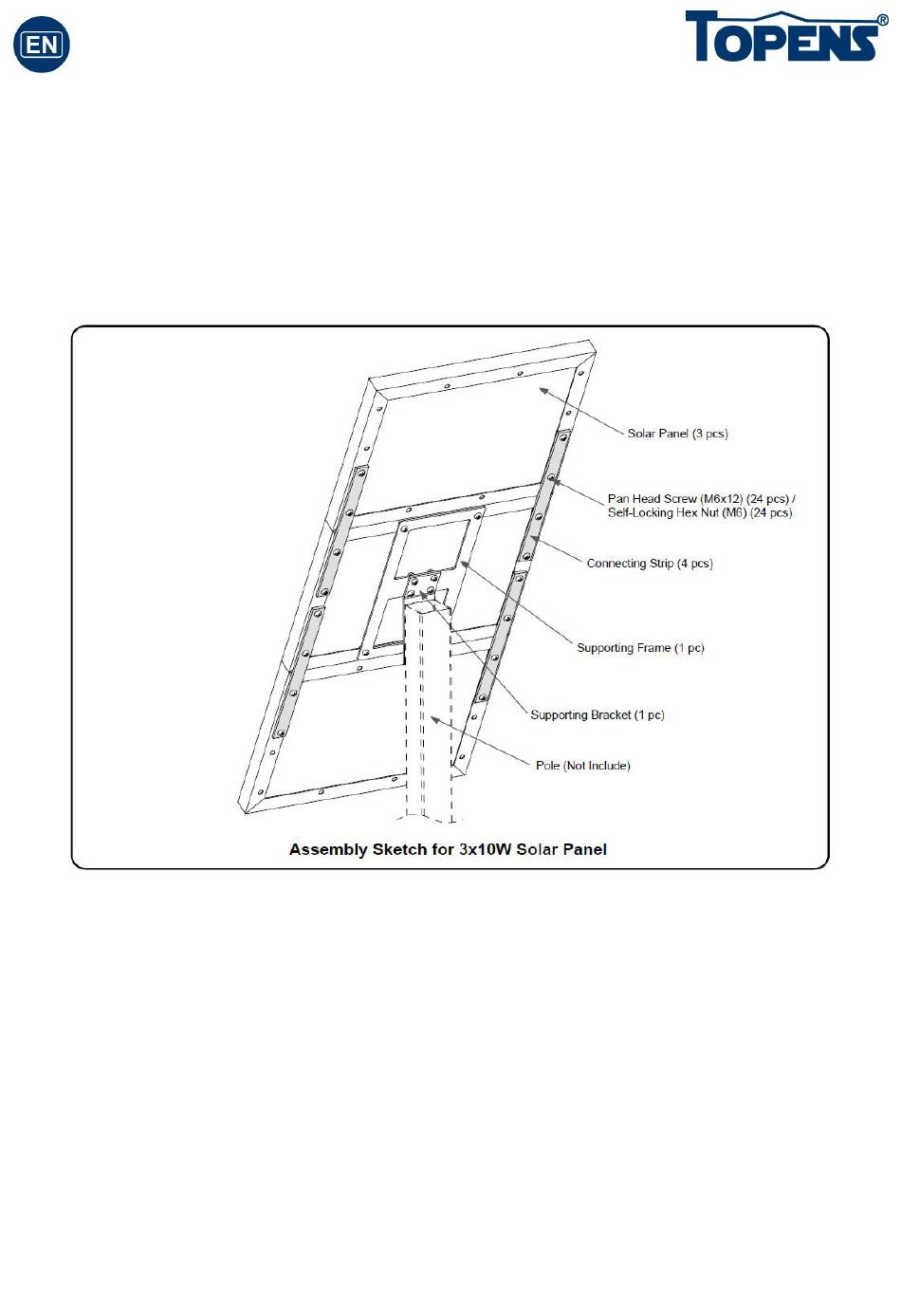

Assembly Sketch for 3×10W Solar Panel
Connection of TCS3 Solar Charge Controller
Thank you for purchasing the solar charge controller TCS3. Please confirm the voltage of the battery and the
solar panel is in accordance with the working voltage of the controller (24V) before you use the controller. The
TCS3 is specially designed for solar charge controlling and battery discharge controlling in automatic gate opener
system. It is integrated with multiple safety protection for battery, such as: over charge protection and over
discharge protection.
Capacity: 10 Amps

1. Wire connection

1.1 The battery is only charged by solar panel (the adapter is not used)
VER 21a
