CARE & MAINTENANCE
GENERAL GUIDELINES
• Do not touch the laser lens on the CD player.
• Temperature changes can cause condensation to form on the laser
lens. If condensation forms on the lens, leave the disc compartment
door open (without disc) for an hour to remove condensation.
• Exposure to direct sunlight or extreme heat (such as inside a car
parked in the sun) can cause damage or malfunction.
• To prevent dust from reaching internal parts, keep the compartment
door closed when not using (except when necessary to remove
condensation).
HANDLING THE COMPACT DISC
It's important that you periodically clean the laser lens:
1. Turn off the unit's power and disconnect the AC
power.
2. Open the CD door and remove the disc.
3. Clean the lens with a soft cloth or use an air blower
brush designed for cameras.
4. If you still are not able to remove dirt particles,
moisten a cotton swab with isopropyl alcohol and
gently apply to the face of the laser lens, rubbing
gently until all traces of dirt are removed.
Although the music tracks in the disc are covered with
a protective layer, it is still advisable to treat the disc
carefully. Always pick up discs by the edge and put
them back in their holders immediately after use.
CLEANING THE UNIT
Do not use volatile chemicals on this unit. Clean by lightly wiping with a
soft cloth.
IMPORTANT NOTICES:
• Should the CD door be opened before the reading of the CD is
completed, a jamming noise may occur. This can be resolved by closing
the CD door and then sliding the FUNCTION switch temporarily to
OFF.
• If an abnormal display indication or an operating problem occurs,
disconnect the AC power cord and remove the batteries. Wait at least
5 seconds, then reconnect the AC power cord or reinstall the batteries.
TROUBLE SHOOTING TIPS
CD
Problems
System does not turn on
Disc in place but unit
won't play
RADIO
Problems
Poor FM reception
Poor AM(MW) reception
SPECIFICATIONS
GENERAL
Power consumption: 14 W
Power source:
Specifications subject to change without notice.
Get user manuals:
See SafeManuals.com
Laser lens
Solutions
• Make sure AC power plug is secure in
the outlet and inlet has power.
• Batteries may be dead. Install new
batteries.
• Make sure the FUNCTION switch is set
to CD position.
• Make sure disc is clean and undamaged.
• Make sure printed side of disc is facing
up.
• Make sure PAUSE mode is not activated.
• Make sure the unit is on a secure spot.
Vibration or jarring can cause the disc to
skip.
Solutions
• Electrical interference in your home can
cause poor reception. Move the unit away
from them (especially those with motors
and transformers).
• Reposition or turn the unit for better
reception.
AC 120V~60 Hz (USA and Canada)
AC 220V ~50Hz (China)
AC 220V ~60Hz (Korea)
AC 230V~50 Hz (Europe and Hong Kong)
AC 240V~50 Hz (Australia)
AC 110-120V/220-240V~50/60Hz (Others)
DC 9V (6 x "C" size or UM-2 batteries)

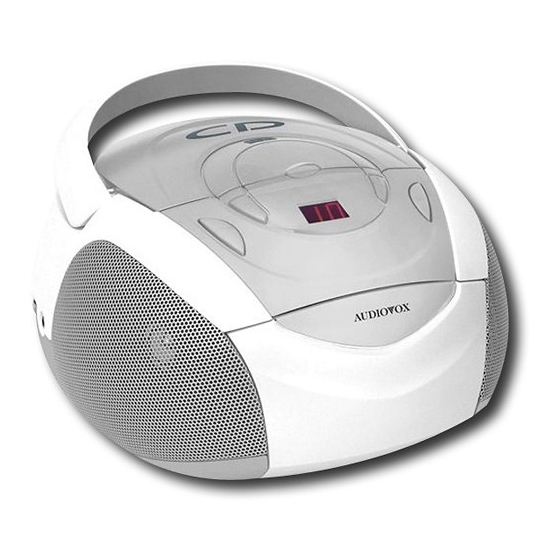

PORTABLE CD SYSTEM
OPERATING INSTRUCTION
The lightning flash
WARNING: TO REDUCE THE
and arrowhead within
RISK OF ELECTRIC SHOCK, DO
the triangle is a
NOT REMOVE COVER (OR
warning sign alerting
BACK) NO USER-SERVICEABLE
you of "dangerous
PARTS
INSIDE.
voltage" inside the
SERVICING TO QUALIFIED
product.
SERVICE PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CLASS 1 LASER PRODUCT
CAUTION
CLASS 1 LASER
INVISIBLE LASER RADIATION WHEN
PRODUCT
OPEN AND INTERLOCKS DEFEATED.
AVOID EXPOSURE TO BEAM
This product contains a low power laser device.
SAFETY PRECAUTIONS
Follow the advice below for safe and appropriate operations.
ON PLACEMENT
• Do not use the unit in places which are extremely hot, cold, dusty or
humid.
• Place the unit on a flat and even surface.
• Do not restrict the air flow of the unit by placing it in a place with poor
air flow, by covering it with a cloth, or by placing it on a carpet.
ON SAFETY
• When connecting and disconnecting the AC cord, grip the plug and not
the cord itself. Pulling the cord may damage it and create a hazard.
• When you are not going to use the unit for a long period of time,
disconnect the AC power cord.
ON AC VOLTAGE
• Before use, check that the rated voltage of your unit matches your local
voltage.
• When there is condensation inside the unit, the unit may not function
normally.
• Let it stand for 1 to 2 hours before turning the power on, or gradually
heat the room up and dry the unit before use.
FCC INFORMATION (for USA)
This device complies with part 15 of FCC Rules. Operations are subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesirable operations.
Should any trouble occur, disconnect the AC power cord and refer
servicing to qualified personnel.
811-138291-031
The exclamation point
within the triangle is a
warning sign alerting
you of important
REFER
i n s t r u c t i o n s
accompanying the
product.
Printed in China
