ELTA music POLYVOX PF3 Manual

Multi-mode sterei filter

MANUAL

Table of Contents

Need help?

Do you have a question about the POLYVOX PF3 and is the answer not in the manual?

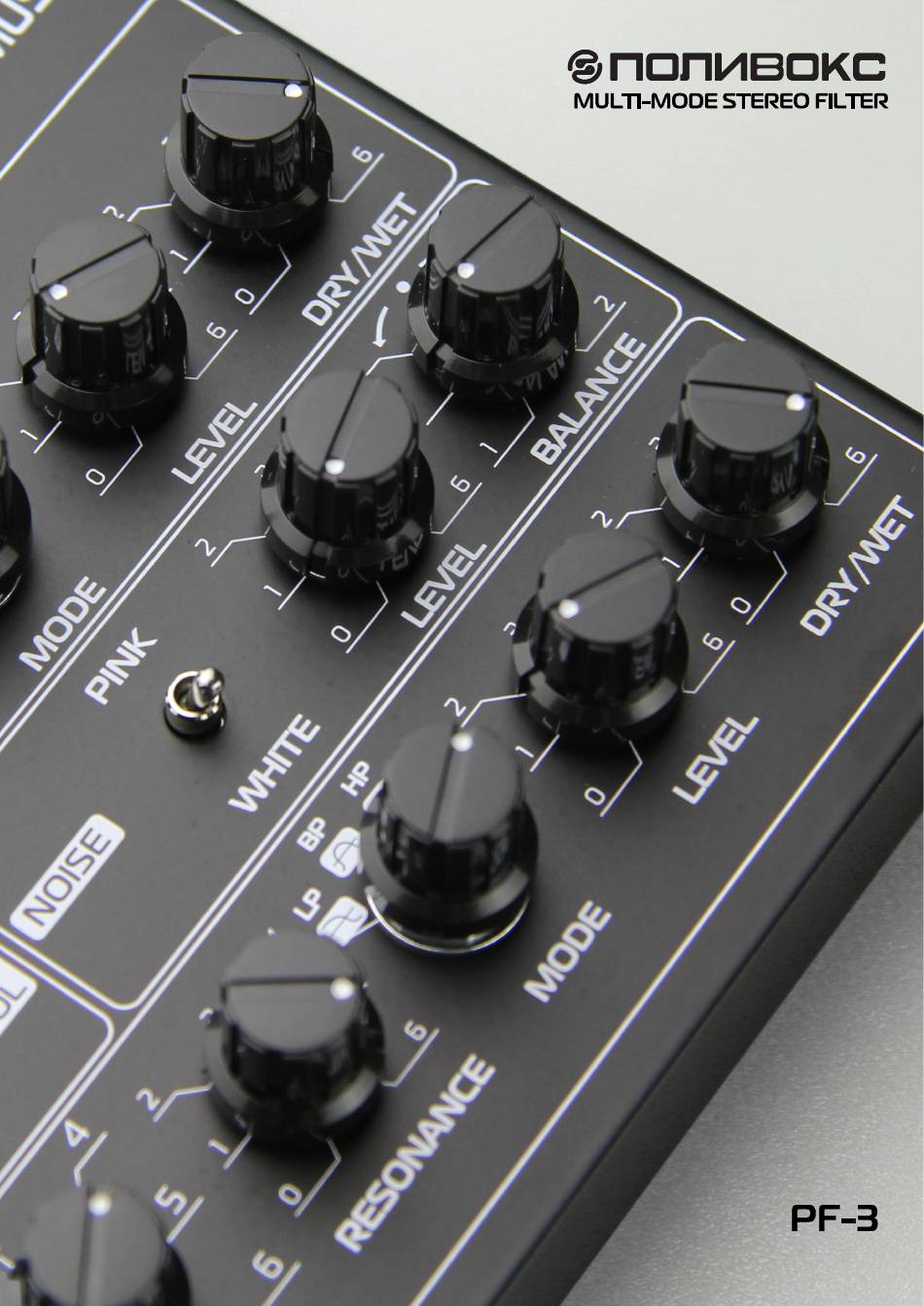

Page 1 MANUAL...
Page 2 CONTROLS FILTER 1 - MAIN LINK HARD FREQ NOISE CONTROL FREQ SOFT FILTER 2 FREQ FILTER 1 - MAIN FILTER 2 CONTROL CV - you can control/automate filter cutoff CV in - connect control voltage standart mono minijack from via CV using CV in. Led indicator mirrors the amount eurorack system of voltage in the input jack.
Page 3 DESCRIPTION POLYVOX double-stereo filter utilizes the classic Soviet filter chip for a unique and iconic filter tone. This filter will make your sound dirty and angry. With the resonance turned up, you won't lose bass frequencies. Two independent 12dB multi-mode filters that can be controlled by a single cutoff knob. Turning the filter into a 24dB filter, when connected in series.
Page 4 Please follow the instructions for use of the ELTA music POLYVOX PF3 below, cause only this will guarantee proper operation of the module and ensure warranty from ELTA music. You will find ELTA music terms of warranty at www.eltamusic.com or via e-mail info@ericasynths.lv...
Page 5 SAFETY INSTRUCTION Water is lethal for most of the electric devices, unless they are made waterproof. ELTA music POLYVOX PF3 is NOT intended for use in a humid or wet environment. No liquids or other conducting substances must get into the module. Should this happen, the POLYVOX PF3 should be disconnected from mains power immediately, dried, examined and cleaned by a qualified technician.
Page 6 RIGA, LATVIA...
