Summary of Contents for Kellfri 20-BG2000

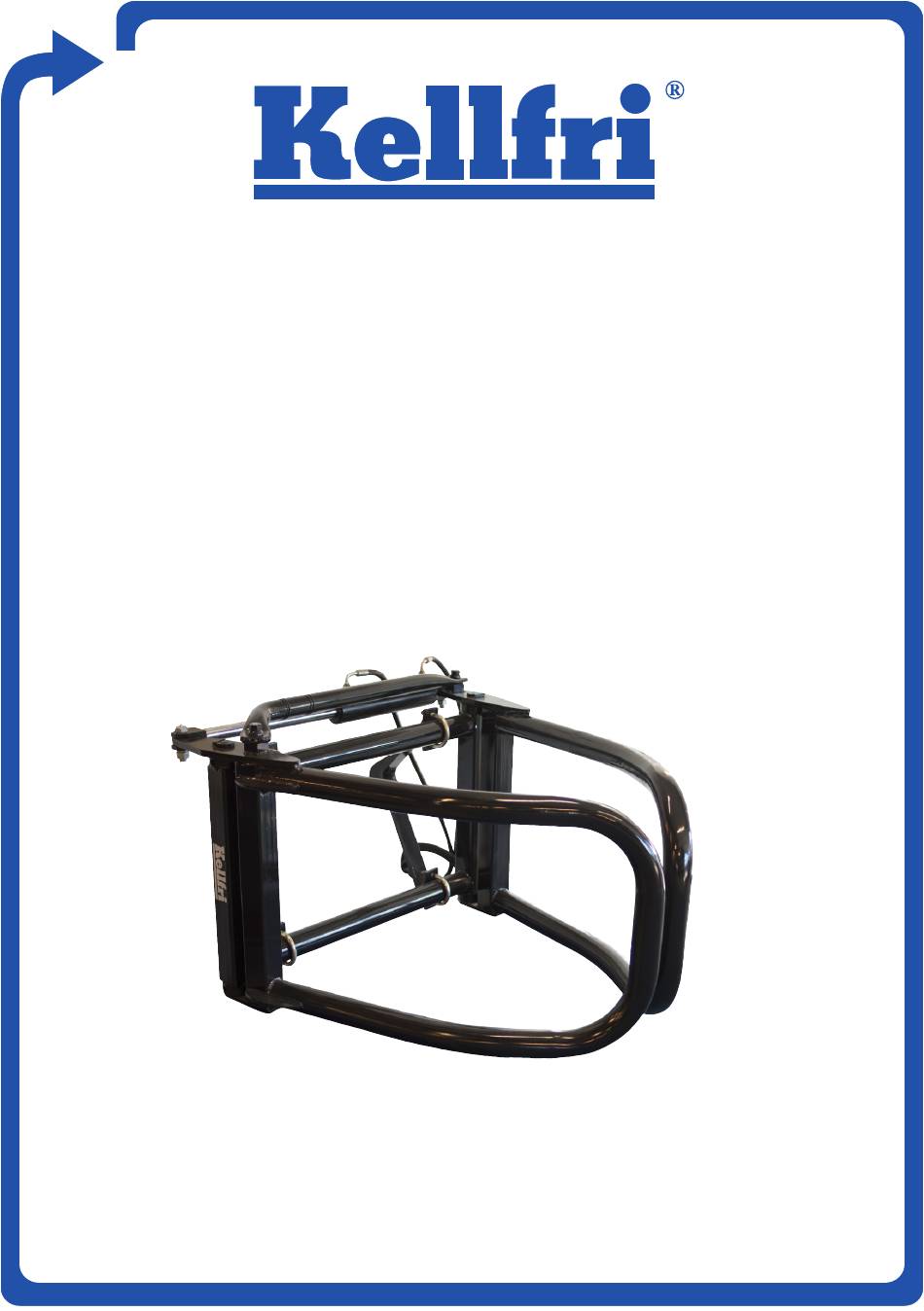

- Page 1 20-BG2000 BALE GRAPPLE READ THIS MANUAL CAREFULLY BEFORE USING THE PRODUCT !!! TRANSLATED FROM THE ORIGINAL...
-
Page 2: Product Information
INTRODUCTION Thank you for choosing a product from Kellfri AB. By following general safety information, operating instructions and common sense, you will have many years of enjoyable use of the product. Kellfris equipment and products are aimed to be use by active farmers with high demands on functionality. -
Page 3: Basic Safety Instructions
Kellfri AB, Munkatorpsgatan 6, 532 37 SKARA Sweden. Tel.: +46 (0)511 242 50 (Pls. contact the retailer) https://www.kellfri.co.uk/ Do not use the equipment or product if you feel ill, tired or are under the influence of alcohol. -
Page 4: Warning Labels
SURROUNDINGS Check and make sure that the area is clear of people, children and objects before switching on or using the equipment. Risk of serious personal injury. Be especially careful if children are in the area where the equipment is being use or stored. Check that there are no low-hanging power lines within the work area. -
Page 5: Personal Protection
PERSONAL PROTECTION Always use appropriate protective equipment. Do not wear loose clothing or jewelry when working with the equipment. Remember to put up long hair when working with equipment that rotates. BEFORE USING Read the instruction manual carefully. Be sure that you understand the safety information, instruction manual and warning labels. -
Page 6: Coupling And Uncoupling
Due to a hydraulic system is never 100% tight, a hydraulic system control should be performed before the equipment is operated. Leakage can occur due to internal leakage in the tractor’s valve, internal leakage in the equipment’s hydraulic cylinder etc. Check the extent of the leak by running the equipment’s cylinder in end position and keep up the pressure for 1 min. - Page 7 ASSEMBLY: Prepared all parts. Be careful during assembly, there is always a risk of crushing. It is recommended that installation is carried out by at least two persons due to its weight. Bracket suitable for Trima Make sure that all parts are included: 2 Grapples (left and right) 2 Welding attachment (EURO / SMS attachments) 1 Pc frame - for the installation of brackets...
- Page 8 Assemble the frame behind the grapples, when lifting, use only suitable lifting equipment. The parts are assembled with 2 shafts. Raise the frame in order to mount the bolt on the shaft. Tighten.
- Page 9 Mount brackets on the frame. Check the CC measurement CC dimensions: center to center distance between The bracket hook Bracket suitable for TRIMA CC dimensions: 690 mm EURO-mount CC dimensions: 790 mm Install the stabilizer bar as shown below.
- Page 10 Install cylinder and hydraulic hoses, sometimes it can be difficult to pull out the piston rod from the cylinder. Mount the hydraulic hoses and connect them to the tractor hydraulic outlet and then press out the piston rod. Secure with pivot pins and lubricate all lubrication points. Check and tighten all bolts.
- Page 11 DESCRIPTION QTY. DESCRIPTION QTY. Bolt Stabilizer Flat Washer Bolt Mounting plate U-bolt Square Profile Shaft Grapple Bushing Mounting Plate square Profile Bushing Mounting plate...
-
Page 12: Warranty Terms And Conditions
Other equipment must meet the hardware requirements of the Directive. Tina Baudtler, CEO 2015-09-08 Kellfri AB is constantly working on further developing their products and therefore reserves the right to modify, among other things the design and appearance without further notice.
