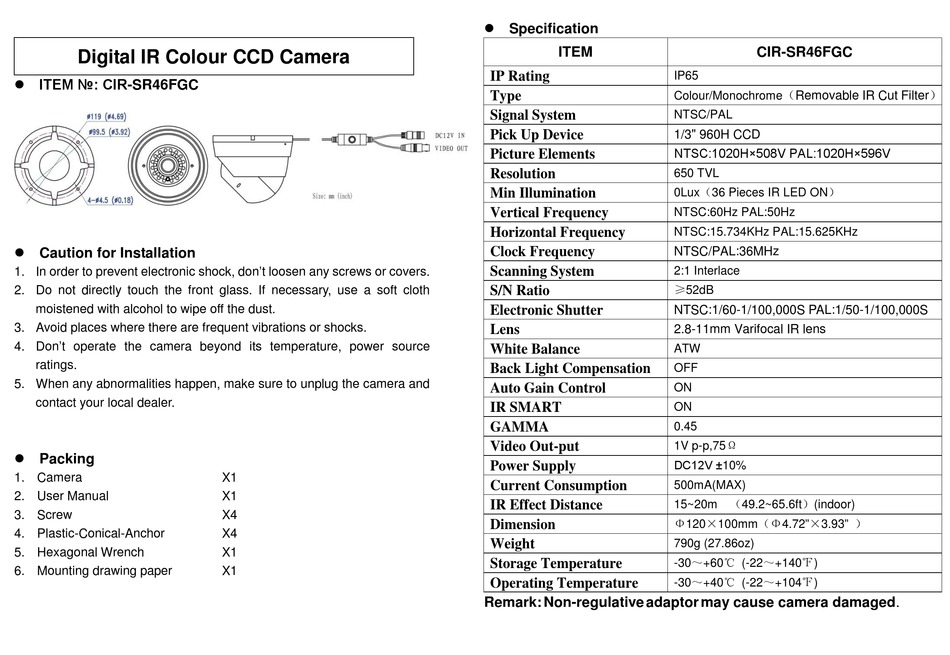

COP Security CIR-SR46FGC Quick Start Manual

Digital IR Colour CCD Camera
 ITEM №: CIR-SR46FGC
 Caution for Installation
1. In order to prevent electronic shock, don't loosen any screws or covers.
2. Do not directly touch the front glass. If necessary, use a soft cloth
moistened with alcohol to wipe off the dust.
3. Avoid places where there are frequent vibrations or shocks.
4. Don't operate the camera beyond its temperature, power source
ratings.
5. When any abnormalities happen, make sure to unplug the camera and
contact your local dealer.
 Packing
1. Camera
2. User Manual
3. Screw
4. Plastic-Conical-Anchor
5. Hexagonal Wrench
6. Mounting drawing paper
X1
X1
X4
X4
X1
X1
 Specification
ITEM
IP Rating
Type
Signal System
Pick Up Device
Picture Elements
Resolution
Min Illumination
Vertical Frequency
Horizontal Frequency
Clock Frequency
Scanning System
S/N Ratio
Electronic Shutter
Lens
White Balance
Back Light Compensation
Auto Gain Control
IR SMART
GAMMA
Video Out-put
Power Supply
Current Consumption
IR Effect Distance
Dimension
Weight
Storage Temperature
Operating Temperature
Remark: Non-regulative adaptor may cause camera damaged.
CIR-SR46FGC
IP65
（Removable IR Cut Filter）
Colour/Monochrome
NTSC/PAL
1/3" 960H CCD
NTSC:1020H×508V PAL:1020H×596V
650 TVL
0Lux（36 Pieces IR LED ON）
NTSC:60Hz PAL:50Hz
NTSC:15.734KHz PAL:15.625KHz
NTSC/PAL:36MHz
2:1 Interlace
≥52dB
NTSC:1/60-1/100,000S PAL:1/50-1/100,000S
2.8-11mm Varifocal IR lens
ATW
OFF
ON
ON
0.45
1V p-p,75Ω
DC12V ±10%
500mA(MAX)
15~20m （49.2~65.6ft）(indoor)
Φ120×100mm（Φ4.72"×3.93" ）
790g (27.86oz)
-30～+60℃ (-22～+140℉)
-30～+40℃ (-22～+104℉)
