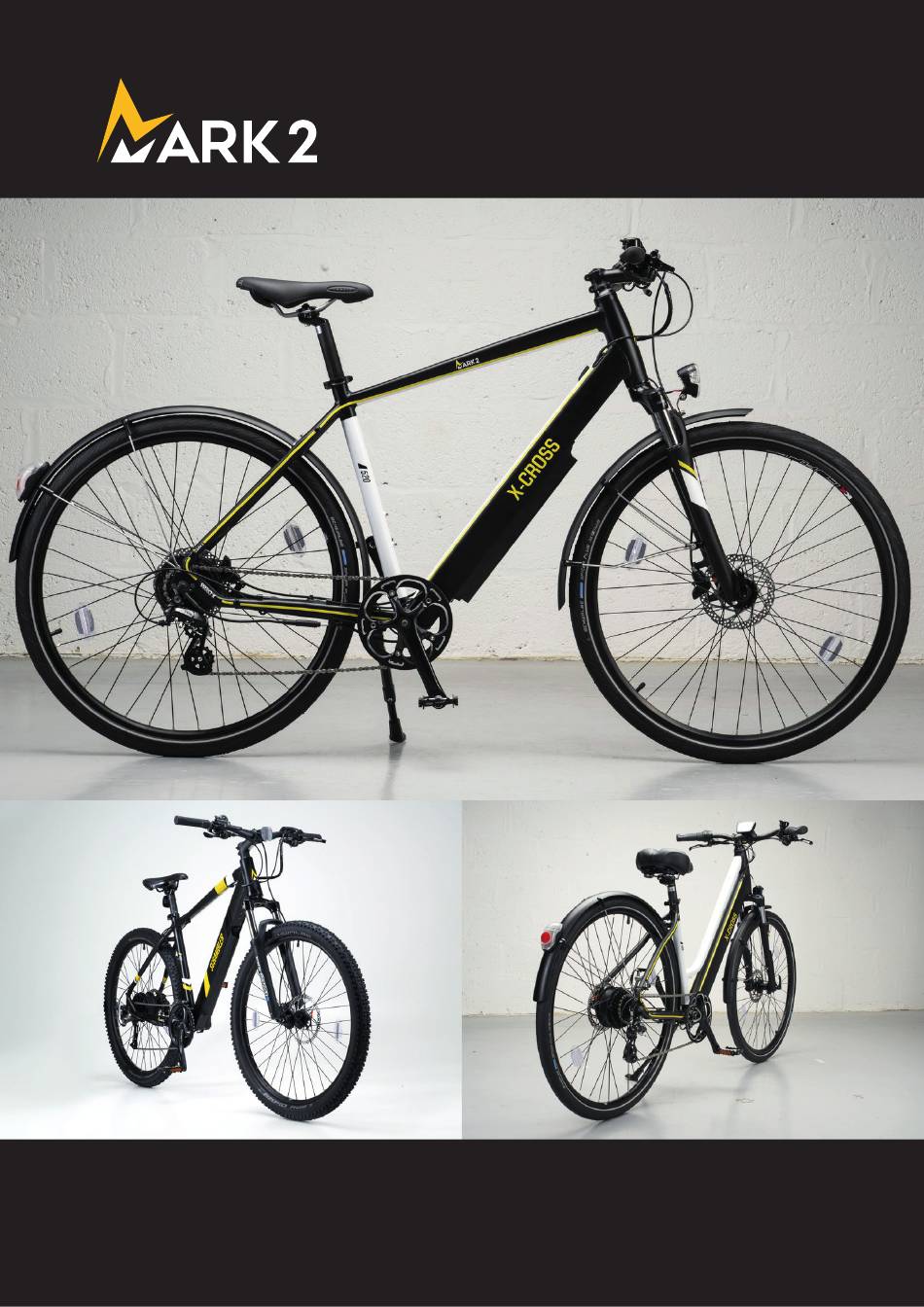

- Page 1 X-CROSS & SCRAMBLER Images in this user manual are for illustrative purposes only and subject to change. USER MANUAL Models covered: X-Cross 450, X-Cross 520, Scrambler 430, Scrambler 480...
- Page 2 Product details Type ¨ Scrambler 430 ¨ X-Cross 450 ¨ Scrambler 480 ¨ X-Cross 520 Frame number: Power Pack ¨ 10.4Ah (375Wh) Promovec Li-ion smart memory power pack ¨ 12.8Ah (460Wh) Promovec Li-ion smart memory power pack Serial number: Register your battery for warranty online at www.promovec.com/en/warrenty-and-registration (sic) Purchase date PDI carried out by:...
-
Page 3: Table Of Contents
Table of contents Warnings .................... 4 Product description ................5 Classification ..................5 Quick start ..................6 The throttle ..................7 Display functionality ................8 Troubleshooting ................10 Wheel size settings ................11 Wheel size ..................12 Optional Centre LCD display functionality ....... 13 Installing and removing the battery ..........17 Battery charger/charging options ..........17 Battery capacity and use ............... -
Page 4: Warnings
Warnings Important! Always read the safety instructions before use. If the precautionary measures described are NOT followed, the warranty is void. • To ensure that the charger and battery are handled in a safe way, and that users involved understand the danger thereby, charging of the battery must only be handled by persons aged 8 and up. -
Page 5: Product Description
Product description The Scrambler and X-Cross are the perfect choice if you want an electric bike that can be used for varied purposes, as the bike is suitable for riding on both flat and hilly terrain. The motor is integrated in the rear wheel and the battery is integrated in the frame. -
Page 6: Quick Start
Quick start 1. Mount the battery (see page 17) and press the ON/OFF button. 2. Start pedalling and the motor will start assisting according to the assist level selected. 3. Adjust the assist level with the “Up” and “Down” arrows. 4. -
Page 7: The Throttle
The Throttle When the throttle is twisted towards you then the assist functionality is bypassed and the “Booster effect“ is activated. Release the throttle and the system returns to assist mode. The throttle has several purposes, for example: • When pushing the bike up a hill, turning the throttle will activate “walk-assist”. -
Page 8: Display Functionality
Display functions Light You can manage the display from the left Arrow up side of the handlebar. There are 5 function buttons and a throttle lever. Menu Arrow down On/off Light ON/OFF Toggle the light ON/OFF by pressing the button. Note that the background light will dim down when the light is “ON”. - Page 9 Assist-level The selected assist-level is displayed in the right side of the display. It defaults to level 1 when switched on. Current speed Here the current speed is displayed. Battery indicator Here you can see the status of your battery. The indicator flashes when the minimum level is reached.
-
Page 10: Troubleshooting
Troubleshooting Errors are displayed, with a code and a description in the display info area. If an error is displayed, then it is a signal about an error in the electrical system. When an error is displayed it must be remedied before the motor is able to start. Check the table below for more information covering error codes. -
Page 11: Wheel Size Settings
Wheel size settings Setting the wheel size is done by pressing the ”up” and ”down” simultaneously. Use the arrow ”up” or ”down” to increase or decrease the wheel size. The numbers representing the wheel size are modified one by one. Accept and continue to the next number by pressing the ”menu”... -
Page 12: Wheel Size
Wheel size The speed display can be adjusted by changing the wheel circumference. Wheel circumference is found by measuring the wheel from valve to valve. (Check the table below for reference) TO (European Tyre and Rim Technical Organization): Valve outlet ETRTO TYRE SIZE LENGTH... -
Page 13: Optional Centre Lcd Display Functionality
OPTIONAL Centre LCD display Display functions You can manage the display from the left side of the handlebar. There are 5 function buttons and a twist throttle (see next page). An error indicator is integrated into the display. Read more about error codes and troubleshooting on page 15. - Page 14 The Throttle When the throttle is twisted toward you the assist function is overridden to activate “Booster effect“. Release the throttle and the system returns to assist mode. The throttle has more than one purpose, for example: • When pushing the bike up a hill, turning the throttle will activate “walk- assist”.
- Page 15 Troubleshooting - Centre display If an error code is displayed, then it is signal about an error in the electrical system. The number indicates the type of error. FLASHES MEANING SOLUTION Motor error. Check that the connectors are connected (at the front fork) or contact your retailer.
- Page 16 Wheel size settings Setting the wheel size is done by pressing the ”up” and ”down” simultaneously. Use the arrow ”up” or ”down” to increase or decrease the wheel size. The numbers representing the wheel size are modified one by one. Accept and continue to the next number by pressing the ”menu”...
-
Page 17: Installing And Removing The Battery
Installing and removing the battery Push the battery all the way into the downtube and lock the battery by turning the key to the right. You can only remove the key if the battery is properly mounted and locked in place. When the key is turned to the right, press the battery button that is highlighted on the photo to release the battery. -
Page 18: Battery Capacity And Use
Battery capacity and use Your Mark2 bike uses maintenance-free Li-ION batteries. The battery delivered with your bike is about 40-60% charged at the factory. Before using the battery, it must be fully charged with the supplied charger (Green LED lights). -
Page 19: Disposing Of Battery
Disposing of battery Batteries contain substances that can be harmful to human health and the environment if not handled properly. Batteries are marked with the crossed-out rubbish bin icon. It symbolizes that wasted batteries must not be disposed of with normal household waste but must be collected separately. -
Page 20: Battery Registration
Promovec.com and obtain a 2-year capacity guarantee with a third year backed by Mark2. In addition to the prevailing sale of goods act, 2-year guarantee/warranty provider Promovec A/S offers a 2-year capacity warranty on all batteries for electric bikes equipped with Promovec’s electrical system, purchased from Mark2, and used for private... -
Page 21: Transportation Of E-Bike
Transportation of e-bike If the electric bike is due to be transported, this must be carried out in a responsible manner. We recommend that the bike is transported with an approved bicycle carrier marked with TÜV and is specially made for electric bike. -
Page 22: Battery Specifications
UK - Declaration of conformity This declaration is issued at the responsibility of the manufacturer. In case the product is modified in any kind or way which is not coordinated with Mark2 Bikes and Promovec A/S this declaration of conformity is no longer valid. -
Page 23: Technical Data
Technical data - Scrambler 430 / 480 Shimano, 27 speed Shimano Gear: 250 W rear wheel motor Motor: PAS (Pedal Assist System) Mode: (EU standard EN EPAC 15194) User Weight: Max. 120kg Pictures is for illustrative purpose and subject to change... - Page 24 Technical data - X-Cross 450 Shimano, 10 speed Shimano Gear: 250 W rear wheel motor Motor: PAS (Pedal Assist System) Mode: (EU standard EN EPAC 15194) User Weight: Max. 120kg Pictures is for illustrative purpose and subject to change...
- Page 25 Technical data - X-Cross 520 Shimano, 10 speed Shimano Gear: 250 W rear wheel motor Motor: PAS (Pedal Assist System) Mode: (EU standard EN EPAC 15194) User Weight: Max. 120kg Pictures is for illustrative purpose and subject to change...
-
Page 26: Notes
Notes... -
Page 27: Service Record
The inspection should include a check of brakes, tyres, steering and cables. A service check can be ordered at your dealer or directly with Mark2 Bikes by visiting mark2.co.uk. - Page 28 1 Hunting Gate East Portway Business Park Andover, Hampshire SP10 3SJ 01264 316100 mark2.co.uk BICYCLE ASSOCIATION February, 2022...
