Blupont DVR-4CH-H265-BP Quick Start Manual

Hide thumbs

Advertisement

Table of Contents

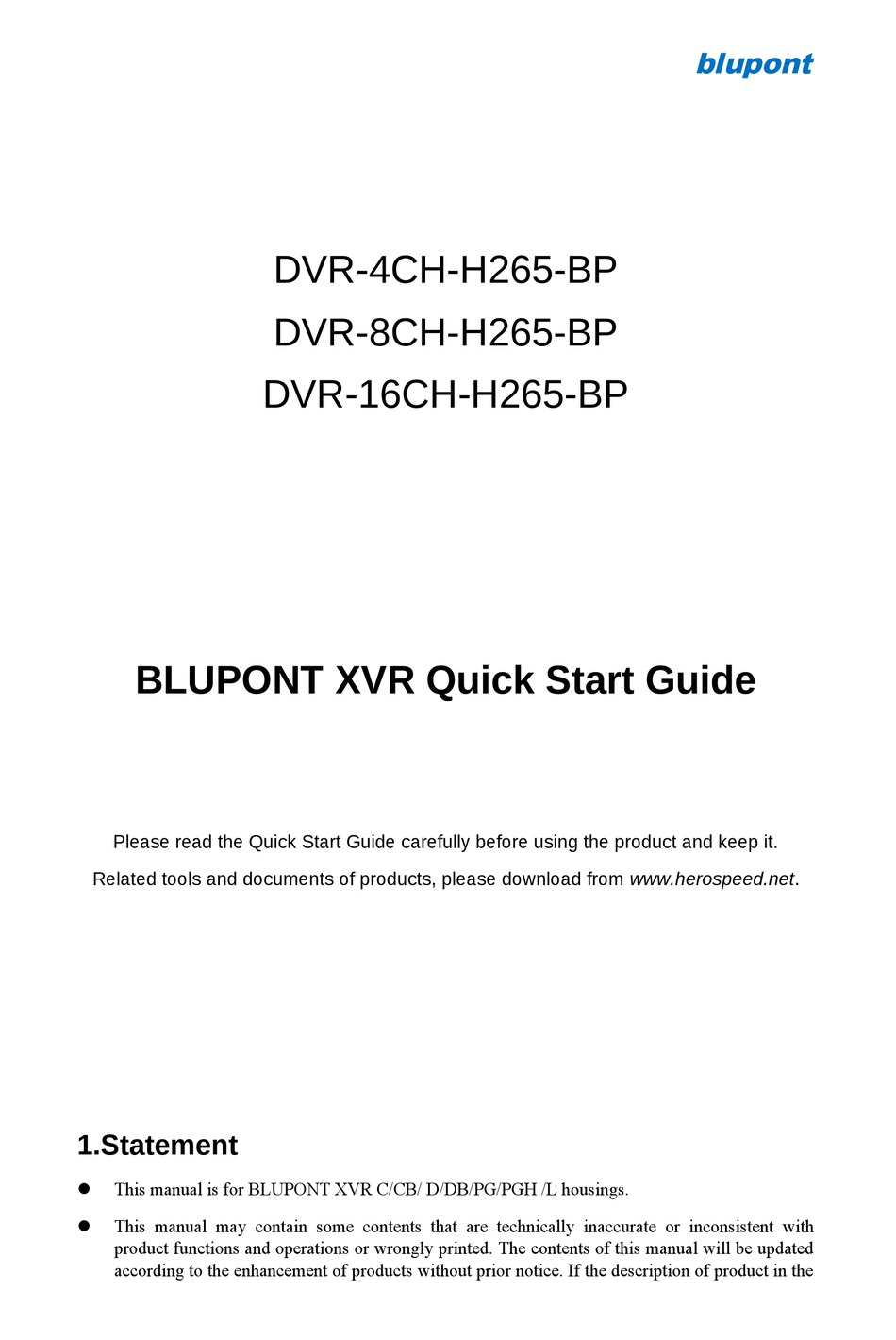

BLUPONT XVR Quick Start Guide
Please read the Quick Start Guide carefully before using the product and keep it.
Related tools and documents of products, please download from www.herospeed.net.
1.Statement
This manual is for BLUPONT XVR C/CB/ D/DB/PG/PGH /L housings.
This manual may contain some contents that are technically inaccurate or inconsistent with
product functions and operations or wrongly printed. The contents of this manual will be updated
according to the enhancement of products without prior notice. If the description of product in the
DVR-4CH-H265-BP
DVR-8CH-H265-BP
DVR-16CH-H265-BP
blupont

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVR-4CH-H265-BP and is the answer not in the manual?

Questions and answers

Related Manuals for Blupont DVR-4CH-H265-BP

Summary of Contents for Blupont DVR-4CH-H265-BP

  • Page 1 Related tools and documents of products, please download from www.herospeed.net. 1.Statement  This manual is for BLUPONT XVR C/CB/ D/DB/PG/PGH /L housings.  This manual may contain some contents that are technically inaccurate or inconsistent with product functions and operations or wrongly printed. The contents of this manual will be updated...

  • Page 2: Safety Instructions

    3.Hard disk installation NOTE: 1) Please use the BLUPONT XVR dedicated SATA hard disk recommended by the device manufacturer. Make sure the power is off before installation. 2) The following pictures and installation diagrams for reference only, subject to the available products.
  • Page 3 4）Install the cover and fix it by screws 3.2 Hard disk installation guide for BLUPONT XVR CB /C / DB / D series 1) Unscrew the screws on the back and sides of the chassis and remove the cover.
  • Page 4 4) Install the cover and fix it by screws 3.3 Hard disk installation guide for BLUPONT XVR L series 1) Unscrew the back panel screws and take off the cover 2) Remove the hard disk rack. 3) Install the hard disk to the rack from top to bottom.

  • Page 5: Rear Panel Interface Description

    4.Rear panel interface description 4.1 BLUPONT XVR rear panel interface description...
  • Page 6 4.2 8 Channels D series BLUPONT XVR rear panel interface description...

  • Page 7: Local Basic Operation

    4.3 32 Channels L series BLUPONT XVR rear panel interface description NOTE: BLUPONT XVR rear panel interface is similar with above picture, but the product appearance, including interfaces and layout, for reference only, please prevail in kind. 5.Local Basic Operation 5.1 Boot up...
  • Page 8 Make sure the input voltage matches the BLUPONT XVR consumption. Connect the device to the monitor and to the power adapter (if available). Plug in the power, switch on the power button (if available), then the device boot up.
  • Page 9 Network parameters must be properly configured before operating the device over the network. Procedure: Choose “Menu > Configuration > Network”. The system displays the IP/Port interface. Modify the IP address of the device according to the actual network plan. (The default IP address of the BLUPONT XVR is 192.168.1.88.).
  • Page 10 5.4 Channel Configuration Step 1: Choose “Menu> Configuration> Channel Config”. Step 2: Select the signal access type of each channel as required. Step 3: Click “Apply>Confirm”, the device restarts and the modified Channel configuration takes effect. NOTE: 1. Single channel select signal access mode to follow certain rules, the interface will be...
  • Page 11 “NO VIDEO”. 5.5 Add IP device Before accessing and configuring the IP channel, make sure that the BLUPONT XVR network connection is correct and valid. Step 1: Choose "Menu> Camera> Add Camera" to enter the Add Camera interface.

  • Page 12: Web Operation

    BLUPONT XVR LAN login(the PC and the device are in the same router) Step 1: Make sure the BLUPONT XVR and PC are in same network segment. If not, the network segment of PC need to be set up to the same segment with BLUPONT XVR , such as "192.168.1.99".
  • Page 13 6.2 Preview In the preview interface, click the play button at the bottom. For the first time connecting, you have to download and install the plugin before previewing. NOTE: The Web-side can also perform the operations such as system, network, storage, playback, download, upgrade, maintenance, and factory reset on the Web.
  • Page 14 Run BitVision App, click " " in the sliding sidebar, enter the account name and password, and click “Login” ( Note: no account is required to register first ). Step 3: Add device , click "Device manage" , " " and " Add device"...
