Mount Plus 1095-31 Installation Instruction

1095-31 Wall Mount INSTALLATION INSTRUCTION
1. Technical Parameter
Max VESA:200×200; Maximum load: 44lbs.

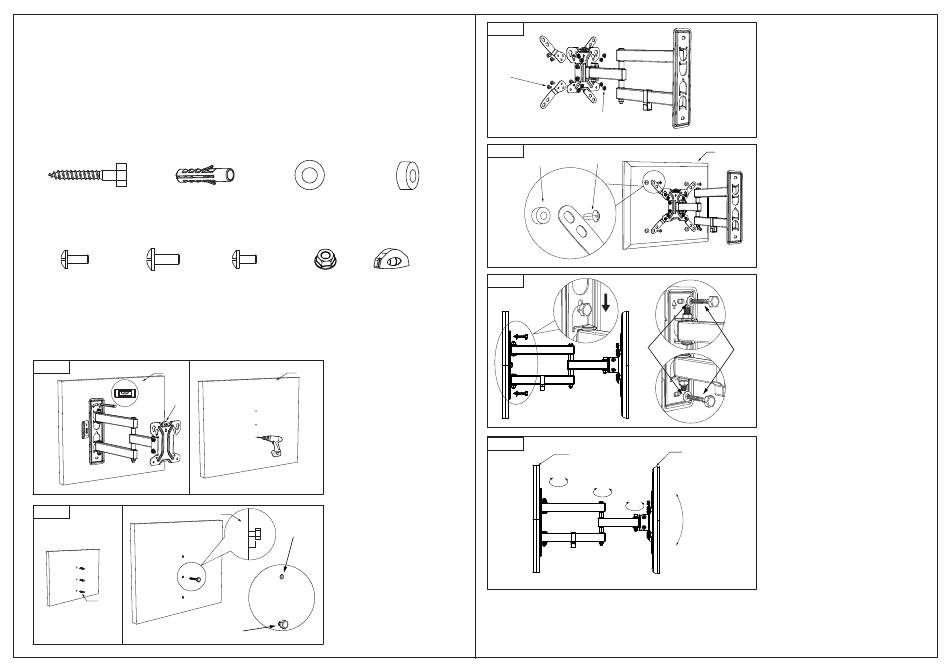

2. Parts List
Please check the parts in the package in comparison with the following list,make sure all of
the parts are in the package. Never use defective parts, never replace part with different specification.
(A)M6x60 Self-tap Screw (3) (B)8x40 Plastic Anchor (3)
(E)M6x14 screws(4) (F)M8x20 screws(4) (G)M6x12 screws(8) (H)M6 nut(8)
3. Installation and operation instructions
Note: please read the instructions carefully before installation!
STEP1
WALL
I
a
STEP2
WALL
B
b
a
(C)M6×15 washer (2) (D)5mm Plastic Sleeve (4)
(I) Level (1)
Step 1:
WALL
a.Use the wall plate as a
template to draw three holes.
b.Drill holes of dia 8mm and
60mm depth in the wall.
b
Step 2:
B
a.Wedge three plastic anchors
into the holes.
3mm
b. Screw one self-tap screw into
the middle plastic anchor,and
keep the screw away from wall
3mm.
A
STEP3
G
H
STEP4
E/F
D
STEP5
C
STEP6
WALL
180°
180°
180°
Step 3:
Install the adapter.
TV
Step 4:
Install the monitor/TV to the front plate
with suitable screws selected from the
parts bag.
Step 5：
Install the wall plate.Screw the other
two self-tap screws into the holes.
Move the wall plate to keep it level
A
and tighten the self-tap screws.
Step 6:
TV
Loosen the screws to adjust the angle
of monitor/TV 15° up and down,then
screw the screws firmly.
+15°
-15°
