Summary of Contents for AMASE AUDIO 1028

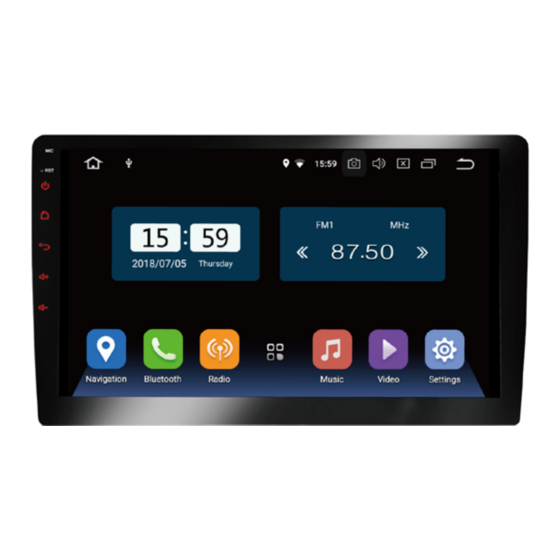

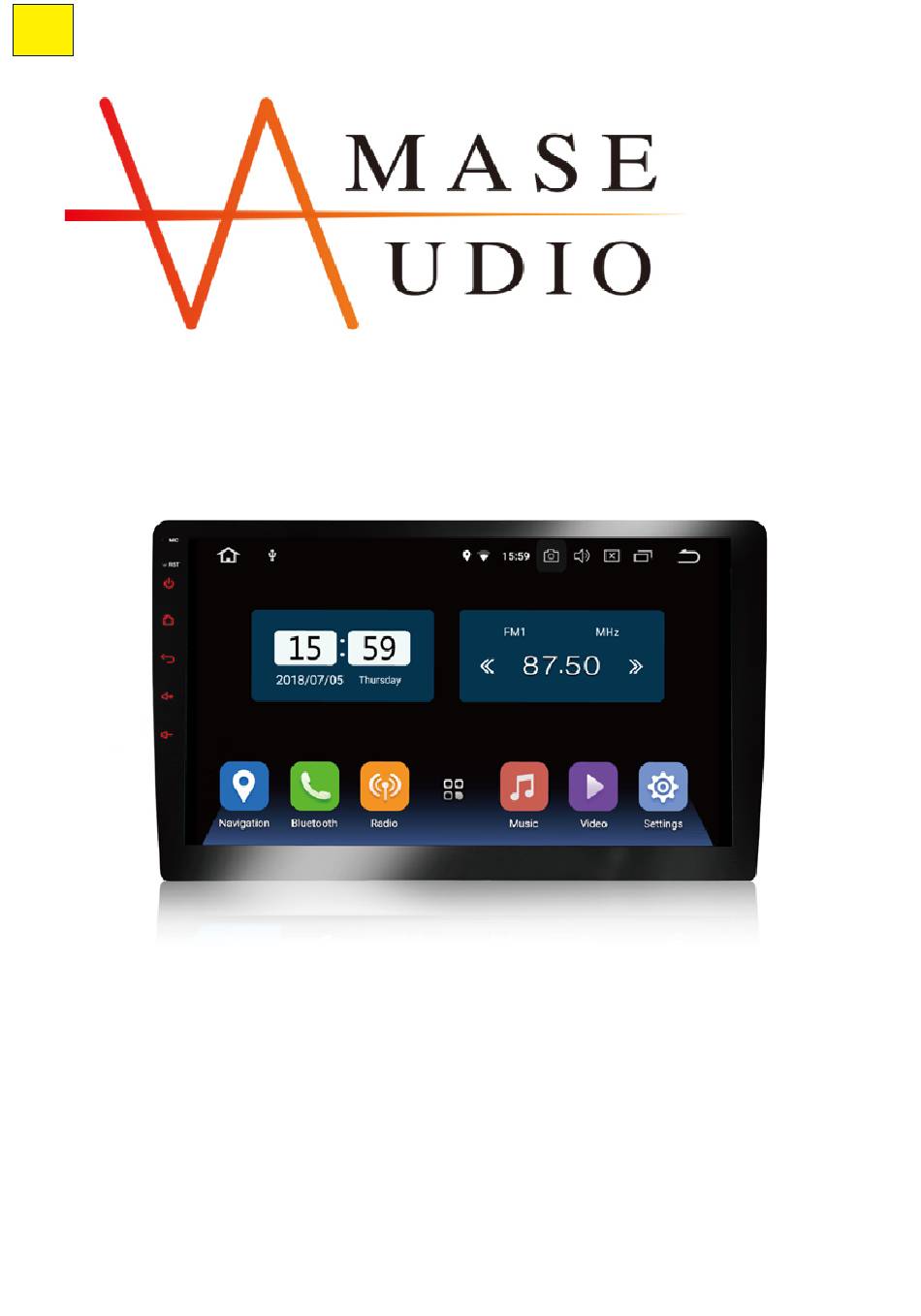

- Page 1 Installation manual Universal 10.1inch Deckless Android (1028) Are you ready to install our unit? Let's go >>>...
- Page 2 4 steps to install Accessories STEP Double check if has any missing before installation. STEP Check 1) Do the screen is broken ? 2) Do the accessories have missing ? Test your unit before a full STEP installation. (Connect the power cable to your car) STEP Do the full installation.
- Page 3 Test your unit before a full STEP installation. (Connect the power cable to your car) After you remove the factory radio, you can take out the power cable to connect the head unit and casually connect the screen cable to the screen, then try to turn it on.
- Page 4 Wiring diagram 4. Install the screen and plug the head unit into the center console, then place the GPS antenna and microphone as shown. The wires are hidden in the side of pillar trim and led to the head unit. STEP Test the head unit functions.
- Page 5 About the screen rotated features Wire connection for the amplifier, the subwoofer and the headset monitors Top right Top left Bottom left Bottom right Right rotate Left rotate 90°C a little bit...
- Page 7 System Initial setup Optional : Install a rear camera Below is our rear camera. This will be a reference to teach Set radio location you how to connect a rear camera to our head unit. The default radio country in the unit is Europe, if you are from other country, you need to access the "factory mode (PW: 126) >...
- Page 8 Set the unit language Please go to setting > Languages & input, then you can add the desirable language you need. About after sales service Q: Do my head unit has one year maintanence? A: Definitely yes, you will have our commitment after you purchase.
