Activates the triac output while the phone bell rings.
230V direct operation without using power.
Suitable for connecting high-power ring or indicator lights in factories and local noise environment.
CONNECTIONS
Phone line
IMPORTANT: Do not touch the circuit being connected to the mains as there 230V at various points of it.
www.cebek.com
-
sat@cebek.com
SUPPLEMENTARY
RING to 230V

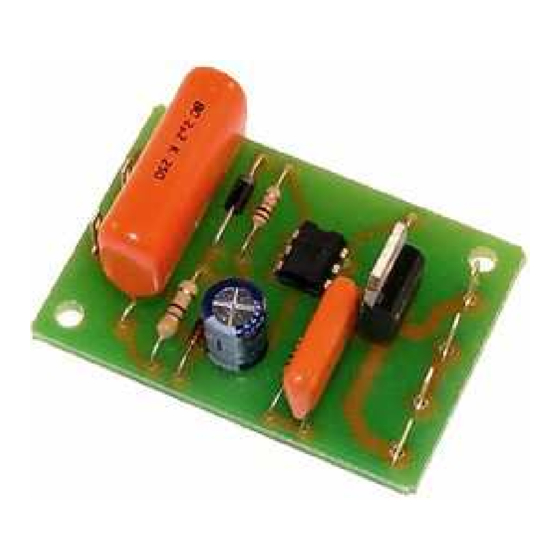

TF-3
TECHNICAL CHARACTERISTICS
Voltage...........................................230V AC.
Maximum power..............................250W AC.
Minimum power...............................50W AC.
Interference protection....................Yes
charge
Output 230V
Input 230V
Advertisement
Table of Contents
Summary of Contents for Fadisel cebek TF-3

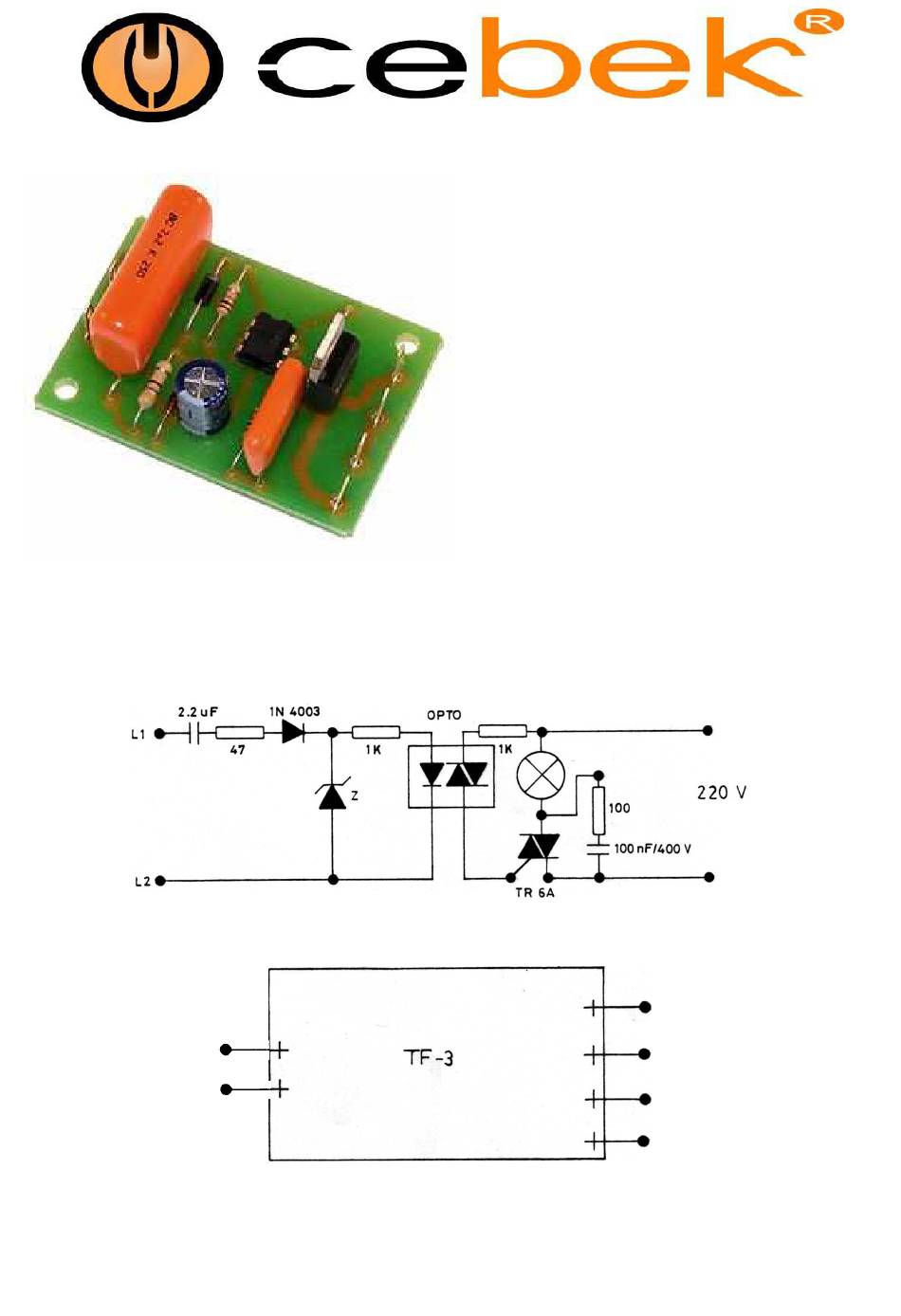

- Page 1 SUPPLEMENTARY RING to 230V TF-3 TECHNICAL CHARACTERISTICS Voltage...........230V AC. Maximum power......250W AC. Minimum power.......50W AC. Interference protection....Yes Activates the triac output while the phone bell rings. 230V direct operation without using power. Suitable for connecting high-power ring or indicator lights in factories and local noise environment. charge CONNECTIONS Output 230V...
- Page 2 TF-3 EXAMPLE OF INSTALLATION Then we put a practical example of a supplementary installation of the phone ringing. In the drawing is represented a bulb but can connect any type of warning either acoustic or light as long as consumption is in the 50W and 250 as minimum and maximum Phone box Output max 250W...
