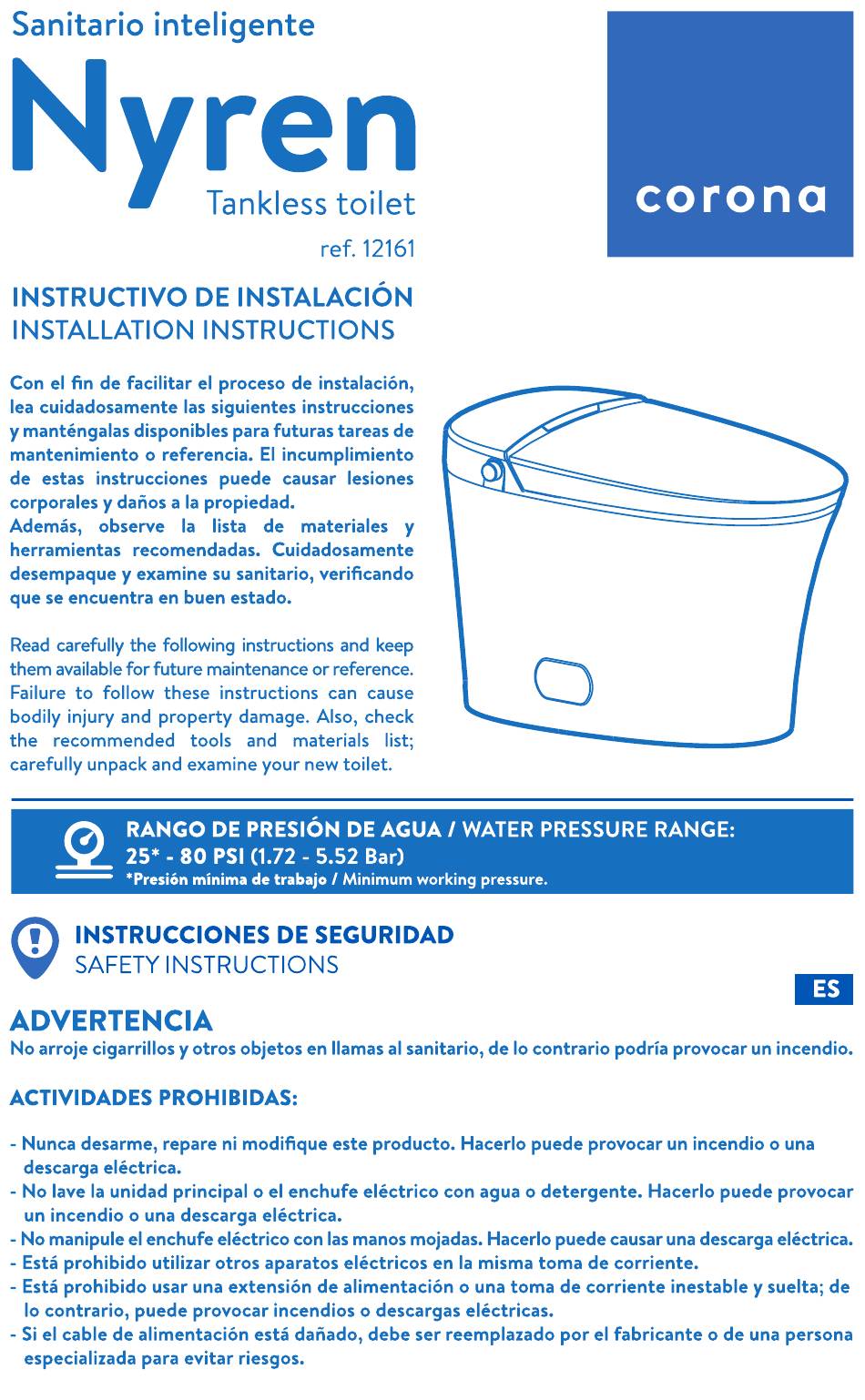

CORONA Nyren 12161 Installation Instructions Manual

Tankless toilet

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the Nyren 12161 and is the answer not in the manual?

Questions and answers

Summary of Contents for CORONA Nyren 12161

  • Page 2 corona.co...
  • Page 4 30.5 cm Rough-in 12 in SANITARIO TOILET Diámetro externo de salida 88 mm Outer outlet diameter 3.5 in Método de drenaje Sifónico Drainage method Siphonic Rango de presión 25 - 80 PSI Water pressure range 1.72 - 5.52 Bar corona.co...
  • Page 5 Modo de calentamiento Calentamiento instantáneo Heating mode Instant heating Potencia de calentamiento 1400W Heating power Temperatura del agua 3 niveles diferentes ajustables Water temperature 3 different adjustable levels Niveles de presión del agua 3 niveles diferentes ajustables Water pressure levels 3 different adjustable levels Lavado posterior / Lavado con masaje, Modo de limpieza...
  • Page 6 DISPOSITIVOS ANTIBACTERIALES Asiento, boquilla rociadora ANTI-BACTERIAL DEVICES Seat, spray nozzle Válvula reguladora3 Angle valve3 Brida sanitaria4 Anillo de cera Closet flange⁴ Wax ring Manguera de suministro Plantilla de instalación Instructivo de instalación Supply hose Installation instructions Installation template corona.co...
  • Page 8 LADO DERECHO / RIGHT SIDE: corona.co...
  • Page 9 UBICACIÓN / LOCATION INTERNO / INTERNAL 76.2 mm (3") 76.2 mm (3") EXTERNO / EXTERNAL 228.6 mm (9") 203.2 mm (8") ENCHUFE / SOCKET 228.6 mm (9") 203.2 mm (8")
  • Page 10 La brida sanitaria debe estar a 305 mm (12”) desde su centro hacia la pared terminada. The closet flange must be 305 mm (12”) PARED TERMINADA / FINISHED WALL from its center to the finished wall. 305 mm (12") Brida sanitaria Closet flange corona.co...
  • Page 11 PARED TERMINADA / FINISHED WALL Use la plantilla de instalación INCLUIDA en el empacado y complete las instrucciones paso a paso enunciadas en la plantilla. Using the INCLUDED installation template complete the step-by-step instructions on the template.
  • Page 12 corona.co...
  • Page 13 CLICK CLICK...
  • Page 14 RESET TEST CLICK corona.co...
  • Page 16 Válvula reguladora Angle valve Red de filtrado Filter net Válvula reguladora Angle valve corona.co...
  • Page 17 Perilla Knob...
  • Page 18 corona.co...
  • Page 20 corona.co...
  • Page 21 PROBLEMA CAUSA SOLUCIÓN PROBLEM CAUSE SOLUTION 1. El doblez de la manguera de suministro de 1. Desdoble la manguera / agua provoca un bloqueo / Straighten the hose Water supply hose bending causes a block No hay 2. Abra la valvula de llenado / descarga / 2.
  • Page 22 LÍNEAS DE ATENCIÓN AL CLIENTE según su región. If the leakage circuit breaker often trips off, it means the products has electricity leakage, so please shut-off the power, and contact the CUSTOMER SERVICE of each region. corona.co...
  • Page 23 REAR / MOVE PRESSURE POSITION FRONT / MOVE STOP HOLD TO ECO WATER TEMP DRYER TEMP SEAT TEMP LIGHT HALF FLUSH FULL FLUSH...
  • Page 24 - Align the holes in the hanger with the plastic anchors, then insert and tighten the screws, next cover them with silicone caps. Chazos plásticos x 2 Plastic anchors x 2 Soporte Hanger Topes de silicona x 2 Silicone caps x 2 Tornillos x 2 Screws x 2 corona.co...
  • Page 25 Área seleccionada Selected area...
  • Page 26 corona.co...
  • Page 27 REAR/MOVE PRESSURE POSITION FRONT/MOVE STOP HOLD TO ECO...
  • Page 28 NOTA: Si la temperatura del asiento antes del ahorro de energía es neutral, permanecerá neutral después del ahorro de energía. · Under energy-saving mode, seat temperature will be low (level 1) to achieve energy saving. NOTE: lf the seat temperature before energy saving is neutral, it will remain neutral after energy saving. corona.co...
  • Page 29 REAR / MOVE PRESSURE POSITION FRONT / MOVE STOP HOLD TO ECO LIMPIEZA POSTERIOR AUTOMÁTICA / AUTO REAR CLEANING WATER TEMP DRYER TEMP SEAT TEMP Limpieza Posterior Limpieza Masaje Limpieza Posterior Secado PARO Auto Rear cleaning Massage cleaning Rear cleaning Auto STOP (20 s) (20 s)
  • Page 30 Short press "LIGHT" button to turn on/turn off night light, long press "LIGHT" button to enter into intelligent mode (Night light will turn on or off by detecting the lightness of surroundings). lf the product is on intelligent mode, short press "LIGHT" button to exit intelligent mode. corona.co...
  • Page 31 STOP D TO ECO STOP ER TEMP SEAT TEMP HOLD TO ECO F FLUSH FULL FLUSH TER TEMP DRYER TEMP SEAT TEMP LIGHT HALF FLUSH FULL FLUSH...
  • Page 32 La boquilla continuará rociando mucho 1-2 segundos después de que el usuario se levante durante la operación de rociado, por lo tanto, presione el botón "STOP" antes de ponerse de pie. LINEAS DE ATENCIÓN AL CLIENTE / CUSTOMER SERVICE: corona.co...
