ROBB Smarrt Rgbw Led Strip Manual

DIY ZigBee RGBW Light Strip Kit
Important: Read All Instructions Prior to Installation

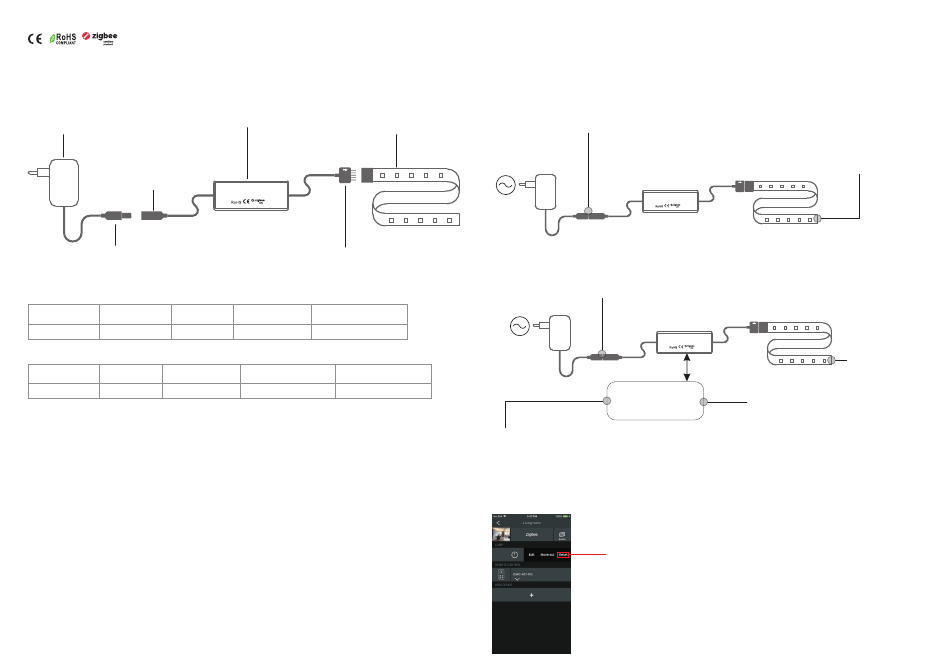

Function introduction

Power adapter, available in
EU, US, Australia versions
Power input female connector,
connect to power adapter's power
output connector
Power output male connector,
connect to LED controller's power
input connector

Power Adapter Data

Input Voltage Output Voltage Output Current
100-240VAC, 50/60Hz 24VDC 1.5A

RGBW LED Controller Data

Input Voltage Output Current Output Power
72W@12V, 144W@24V
12/24VDC 4CH, 1.5A/CH
Note: 1) W channel can be turned on through Gateway's color temperature control interface which will mix RGB
channels as 1 channel white and then make color tuning with the 4th channel white. Once turned on, the brightness of
white channel will be controlled together with RGB channels.
2) W channel can be controlled separately from RGB channels through RGBW zigbee remote or touch panel's W button,
please refer to their manuals.
• DIY Zigbee RGBW light strip kit based on latest ZigBee 3.0 protocol
• Power adapter, RGBW LED controller, RGBW strip all included
• Power adapter for different countries available: EU, US, Australia etc.
• Plug and Play, no wiring required
• Place anywhere and bend to any shape, free to shape your lighting style
• Enables to control ON/OFF, light intensity and RGB color of connected RGBW LED lights
• W channel can be controlled through Gateway's color temperature control interface
• W channel can be controlled separately from RGB channels through RGBW zigbee remote or touch panel's W button
• ZigBee end device that supports Touchlink commissioning
• Supports self-forming zigbee network without coordinator
• Supports find and bind mode to bind a ZigBee remote
• Supports zigbee green power and can bind max. 20 zigbee green power remotes
• Compatible with universal ZigBee gateway products
• Waterproof grade: IP20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
09.ZGDIYRGBWKIT.04282
RGBW LED controller 2-meter RGBW light strip, 3-
meter available upon request
ZigBee RGBW LED Controller
Input Voltage:DC 12-24V
Output Current:4x1.5A max.
DC INPUT Max Output Power:72-144W LED OUTPUT
5 pin male connector, connect to the light strip female
connector, please make sure the pin with the arrow mark
is connected to the common anode DC24V+ on the strip
Output Power Output Type
36W Constant voltage
Dimension (LxWxH)
Output Type
Constant voltage
84x20x14mm
Operation
1. Plug the connectors correctly and plug the adapter to a socket, then power on.
2.This ZigBee device is a wireless receiver that communicates with a variety of ZigBee compatible systems. This
receiver receives and is controlled by wireless radio signals from the compatible ZigBee system.
3. Zigbee Network Pairing through Coordinator or Hub (Added to a Zigbee Network)
Step 1: Remove the device from previous zigbee network if it has already been added to, otherwise pairing will
fail. Please refer to the part "Factory Reset Manually".
Step 2: From your ZigBee Controller or hub interface, choose to add lighting device and enter Pairing mode as
instructed by the controller.
Step 3: Reset power of the device to set it into network pairing mode (connected light flashes twice slowly), 15
seconds timeout, repeat this step.
AC Power
50/60Hz
ZigBee RGBW LED Controller
Input Voltage:DC 12-24V
Output Current:4x1.5A max.
DC INPUT Max Output Power:72-144W

4. TouchLink to a Zigbee Remote

Step 1: Method 1: Reset power of the device 4 times to start Touchlink commissioning immediately under any
circumanstances, 180S timeout, repeat this step.
Method 2: Reset power of the device, Touchlink commissioning will start after 15S if it's not added to a zigbee
network, 165S timeout. Or start immediately if it's already added to a network, 180S timeout. Once timeout,
repeat this step.
AC Power
50/60Hz
ZigBee RGBW LED Controller
Input Voltage:DC 12-24V
Output Current:4x1.5A max.
DC INPUT Max Output Power:72-144W
< 10cm
Zigbee Remote
Step 3: Set the remote or touch panel into Touchlink commissioning,
please refer to corresponding remote or touch panel manual to learn how .
Note: 1) Directly TouchLink (both not added to a ZigBee network), each device can link with 1 remote.
2) TouchLink after both added to a ZigBee network, each device can link with max. 30 remotes.
3) To control by both gateway and remote, add remote and device to network first then TouchLink.
4) After TouchLink, the device can be controlled by the linked remotes.

5. Removed from a Zigbee Network through Coordinator or Hub Interface

From your ZigBee controller or hub interface, choose to delete or reset the lighting
device as instructed. The connected light blinks 3 times to indicate successful reset.
Step 4: Connected light will blink 5 times and
then stay solid on, then the device will
appear in your controller's menu and can be
controlled through controller or hub interface.
LED OUTPUT
Step 4: There shall
LED OUTPUT
be indication on the
remote for successful
link and connected
light will flash twice.
Step 2: Bring the remote or touch
panel within 10cm of the lighting
device.
