Assembly Instructions
Model: PT172

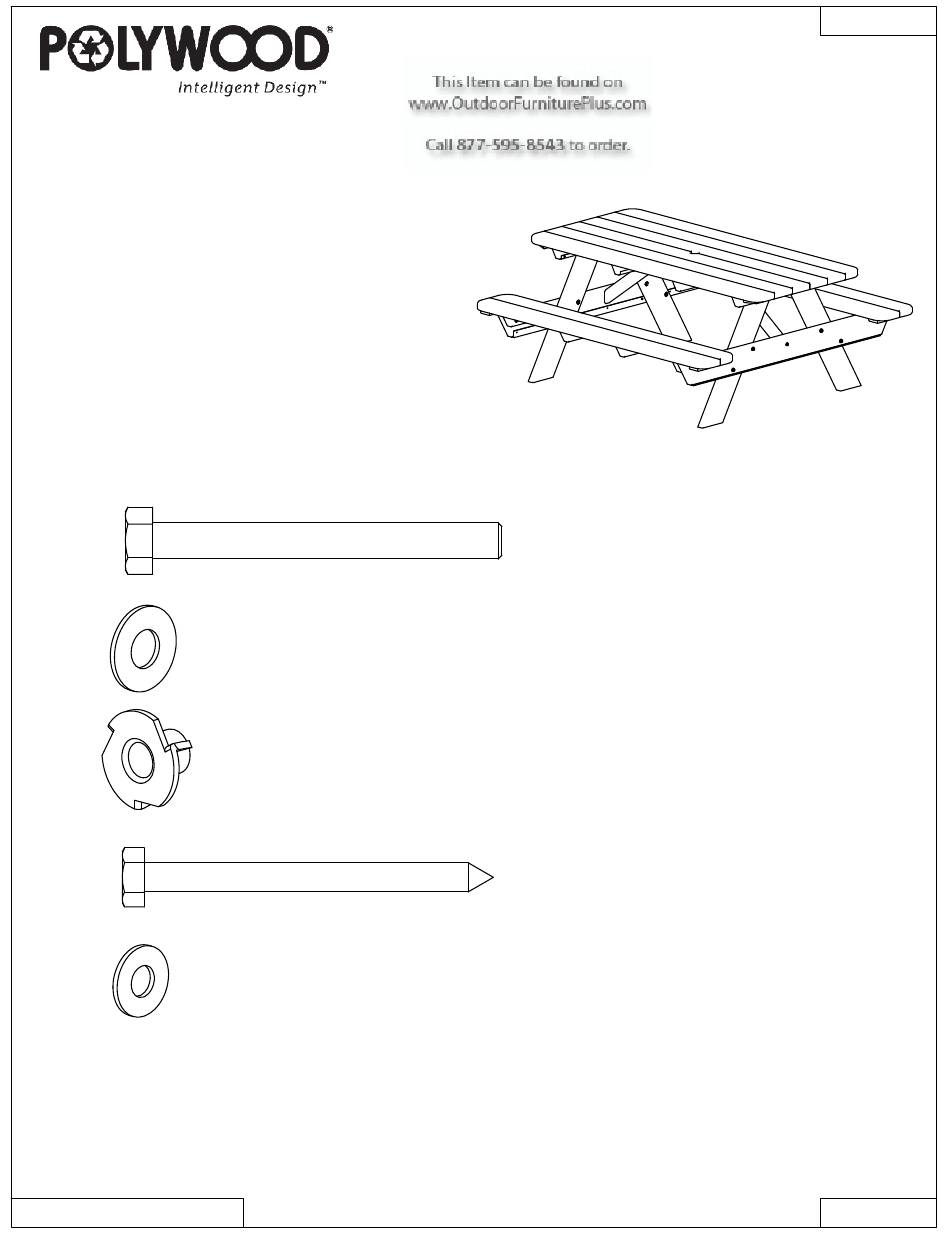

Layout Parts
(2) Seat
(1) Table top
(4) Legs
(2) Seat support
(2) Angle brace
Layout Hardware
Qty
5/16-18 X 3 HEX CAP SCREW
24
24
5/16 X 3/4 OD FLAT WASHER
24
1/4 X 3 HEX LAG SCREW
4
4
1/4 FLAT WASHER
ASSEMBLY INSTRUCTIONS
5/16-18 X 3/8 T-NUT 3 PRONG SS
ALL HARDWARE IS STAINLESS STEEL
Tools Needed
1/2" Socket drive
7/16 Socket drive
Hammer
PG 1 OF 3
12/3/2012
Advertisement
Table of Contents
Related Manuals for Polywood PT172
Summary of Contents for Polywood PT172
- Page 1 PG 1 OF 3 Assembly Instructions Model: PT172 Layout Parts (2) Seat (1) Table top (4) Legs (2) Seat support (2) Angle brace Layout Hardware 5/16-18 X 3 HEX CAP SCREW 5/16 X 3/4 OD FLAT WASHER 5/16-18 X 3/8 T-NUT 3 PRONG SS...
- Page 2 PG 2 OF 3 Assembly Insert 8 T-nuts into all benches Insert 16 T-nuts into all legs Attach legs to table using (8) 5/16x3" Hex bolts and washers 12/3/2012...
- Page 3 PG 3 OF 3 Attach seat supports to table using (8) 5/16x3" Hex bolts and washers Attach angle braces to table using (4) 1/4x3" Lags and washers angle brace Attach seats to table using (8) 5/16x3" Hex bolts and washers 12/3/2012...
