Summary of Contents for arboga POP 310

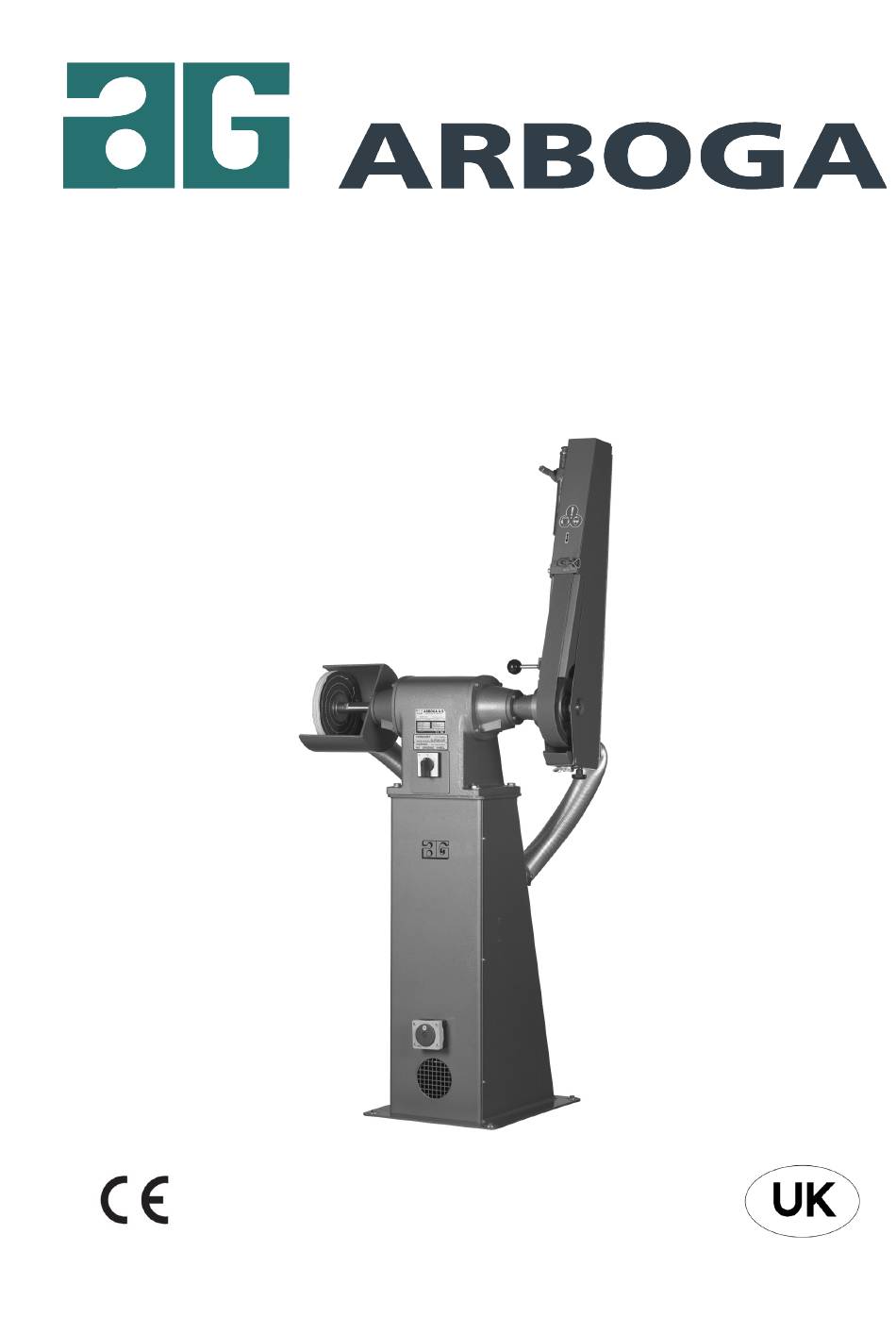

Page 1 26.04.19 Manual POP 310 Industrial polishing machine...
Page 2 READ THIS MANUAL BEFORE USE...
Page 3 Tel. + 45 98 23 60 88 Fax: + 45 98 23 61 44 hereby declares that ARBOGA POP 310 Industrial polishing machine are manufactured in accordance with the provisions of the European Parliament and Council Directive 2006/42 / EC of 17 May 2006 And also in accordance with: •...
Page 4: Table Of Contents
PERATING THE BELT ARM KU-EXHAUST SYSTEM SSEMBLING AND MOUNTING OF EXHAUST SYSTEM KU-- AINTENENCE OF EXHAUST SYSTEM SPARE PARTS LIST POP 310 PLIT DRAWING OF BASIC MODEL POP 310 PARE PARTS LIST FOR POP 310 PLIT DRAWING OF WITH POLISHING MOPS...
Page 5: Transport And Handling
POP 310 polishing machine is delivered mounted to a pallet packed in protective packing. Handling POP 310 polishing machine can easily be ported within the packing it is delivered in. If the polishing machine is mounted to a pedestal, please make sure the pedestal is safely bolted to the pallet.
Page 6: Operator's Manual
2 Operator’s manual Operation After wiring and adjusting the machine it is now ready for use. Slowly lead the work piece towards the polishing disc and avoid strokes and heavy pressure against the polsihing disc. Use a light pressure to avoid destroying the polishing disc and overloading the motor.
Page 7 9. Do not overload the machine. It can carry out the job better and more safely if you use it for the purpose it was designed for. 10. Use the right tool. Do not force the tool or unit to carry out a job it was not designed to 12.
Page 9: Maintenance
Maintenance The polishing machine must be placed at a dry spot to make sure the polishing discs do not get wet because of damp or rain. When the polishing disc must be changed simply unscrew nut (A) (see fig.: 2.1) first then dismount the flange (B).
Page 10: Beltarm
3 Belt arm Assembling and mounting the belt arm Mount the telescope arm (A) to the box cover (B) by using the fittings for the telescope arm (C) and securing the box cover (B) by screwing the screw through the side plate into the holder for the telescope arm (D).
Page 11: Changing The Grinding Belt
Changing the grinding belt When the grinding belt is worn out it must be replaced which is done as follows: The lid plate (A) (see fig.: 3.2) on the box cover is opened and the handle (B) is pulled downwards. This way the tension is released from the grinding belt (C) to be able to dismount it and replace it with a new one to be mounted in reverse order.
Page 12: Maintenance Of Belt Arm
There are many kinds of grinding belts. Therefore, it is important to choose the correct belt type and grit. Pay attention to the material the work piece is made of. You can then vary the grit size grinding belt material and glue. In this connection we inform that there are also different contact wheels with various softness and shape for different purposes.
Page 13: Assembling And Mounting Of
4 EX16-exhaust system Assembling and mounting of EX16-exhaust system To mount the double ended grinder on the EX-16 exhaust unit, mount the suction hoses (12) to the exhaust pipes (15), cork washers (16) and then to the holes of wheel shields of the machine.
Page 14: Spare Parts List
5 Spare parts list Split drawing of POP 310 basic model Fig.: 6.2 Spare parts list for POP 310 Pos.no. Description Item no. Unbraco bolt M6x20 4345678 Spring disv 6mm 1323060 End cover POP 310 0747246 Unbraco bolt M8x25 0123226...
Page 15 Split drawing of POP 310 with polishing mops Fig.: 6.4 Spare parts list for POP 310 with polishing mops Pos.no. Description Item no. Nut M20 Right 0932302 Nut M20 Left 0932299 Flange 1105183 Polishing mop ø200x20xø20 1531506 Distance pipe ø30/ø20x15...
Page 16 Split drawing of POP 310 with belt arm Fig.: 6.5...
Page 17 Spare parts list for POP 310 belt arm Item no. Pos. no. Description RIGHT LEFT Top screw 2078212 2078212 Draw pipe for belt arm 9480687 9480687 Machine screw M4x4 Z 0737618 0737618 Lock ring DIM 42, DIN 472 7655123 7655123...
Page 18 Split drawing of EX-16 exhaust unit for POP 310 Fig.: 6.7 Spare parts list for EX-16-exhaust unit for POP 310 Pos. No. Description Item no. Screw M12x40 Z 7654320 Disc ø13x24x2,5 0105167 Water cup 0771333 Table 0771330 Tap-tite M4x8 1242946...
Page 19: Technical Data
Technical data Technical specifications Model POP 310 Motor output in Watt 1400 rpm 2000 Motor output in Watt 2800 rpm 2200 IP class Class Amp v/ 1400 rpm 4,2/7,3 Amp v/ 2800 rpm 4,8/8,3 Cos ϕ v/ 1400 rpm 0,83 0,86 Cos ϕ...
Page 20: Wiring Diagramme
Wiring diagram POP 310 polishing machines can be delivered wired as 3 x 400/440V - 50/60 Hz or as 3 x 230V - 60 Hz. See wiring diagrams below. Max. Voltage Min. Voltage...
Page 21 Wiring diagram, the polishing machines POP 310, polishing machines can also be delivered with two-speed 1400/2800 rpm 3 x 400/440V - 50/60 Hz or 3 x 230V - 50/60 Hz. See the wiring diagrams below. Can NOT be re-wired from min. voltage to max. voltage.
Page 22 Wiring diagram for polishing machines w / EX-16 Exhaust The polishing machines are supplied with 1400/2800 rpm and an extraction base 3 x 400/440 V, 50/60 Hz or as 3 x 230 V 50/60 Hz. See the wiring diagrams below. Cannot be switched from min.
Page 23 7 Brake B Circuit diagram For UA electronic brake and external on-off...
Page 24: Warranty
8 Warranty If within 2 years of purchase this machine supplied by ARBOGA A/S becomes defective due to faulty materials or workmanship we guarantee to repair or replace the machine or defective part or parts free of charge provided that: 1.
