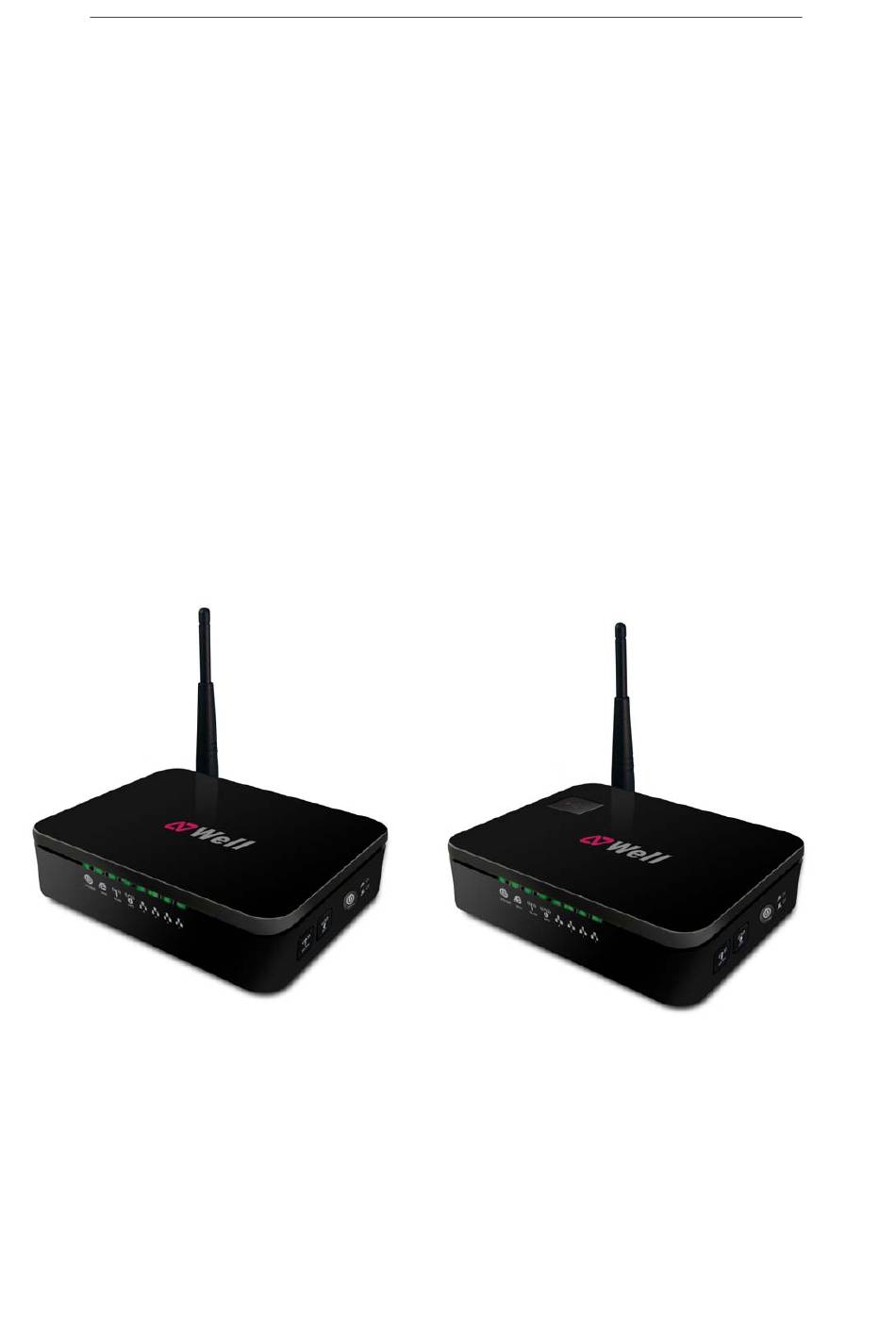

- Page 1 WELL WRC500N / WRC5010N / WRC5010NU User’s Manual WRC5000N WRC5010N WRC5010NU WiFi GW/AP/klient/bridge/repeater 150Mb/s, switch...
-
Page 2: Table Of Contents
WELL WRC500N / WRC5010N / WRC5010NU Table of Contents Introduction............7 Features ................7 Device Requirements ............7 Using this Document.............8 Notational conventions ..........8 Typographical conventions..........8 Special messages............8 Getting Support..............8 Getting to know the device........9 Computer / System requirements ........9 Package Contents ..............9 LED meanings &... - Page 3 WELL WRC500N / WRC5010N / WRC5010NU WAN Interface Setup............46 Static IP ................47 DHCP Client..............48 PPPoE................49 PPTP ................50 L2TP................51 USB3G (only for WRC5010NU)........52 Wireless Basic Setup............53 AP (Access Point) ............54 Client ................55 WDS (Wireless Distribution System)......56 WDS (Wireless Distribution System) only....59 AP (Access Point) + WDS (Wireless Distribution System) ..........60...
- Page 4 WELL WRC500N / WRC5010N / WRC5010NU Access Control..............85 Allow Listed ..............85 Deny Listed ..............87 WDS settings ..............88 Configure WDS (Wireless Distribution System) only.............89 Configure AP (Access Point) + WDS (Wireless Distribution System).........94 Site Survey................99 Configure Wireless ISP + Wireless client + Site Survey .............100...
- Page 5 WELL WRC500N / WRC5010N / WRC5010NU Port filtering for TCP port 80..........157 Port filtering for UDP port 53..........158 IP Filtering ............160 IP filtering for TCP with specified IP .........161 IP filtering for UDP with specified IP.........163 IP filtering for both TCP and UDP with specified IP ..............165...
- Page 6 WELL WRC500N / WRC5010N / WRC5010NU Password............203 Setting your username and password ......203 Logout .............205 Logout................205 Configuring your Computers ......206 Configuring Ethernet PCs..........206 Before you begin............206 Windows® XP PCs............206 Windows 2000 PCs ...........206 Windows Me PCs ............208 Windows 95, 98 PCs ..........208 Windows NT 4.0 workstations........209...
-
Page 7: Introduction
WELL WRC500N / WRC5010N / WRC5010NU Introduction Congratulations on becoming the owner of the Wireless Gateway. You will now be able to access the Internet using your high-speed xDSL/Cable modem connection. This User Guide will show you how to connect your Wireless Gateway, and how to customize its configuration to get the most out of your new product. -
Page 8: Using This Document
WELL WRC500N / WRC5010N / WRC5010NU • For system configuration using the supplied a. web-based program: a web browser such as Internet Explorer v4 or later, or Netscape v4 or later. Note that version 4 of each browser is the minimum version requirement –... -
Page 9: Getting To Know The Device
WELL WRC500N / WRC5010N / WRC5010NU Getting to know the device Computer / System requirements 1. Pentium 200MHZ processor or above 2. Windows 98SE, Windows Me, Windows 2000, Windows XP, Windows Vista and Windows 7 3. 64MB of RAM or above 4. -
Page 10: Led Meanings & Activations
WELL WRC500N / WRC5010N / WRC5010NU LED meanings & activations Front Panel The front panel contains lights called Light Emitting Diodes (LEDs) that indicate the status of the unit. Figure 1: Front Panel and LEDs Label Color Function POWER green... -
Page 11: Rear And Right Panel And Bottom Side
WELL WRC500N / WRC5010N / WRC5010NU Rear and Right Panel and bottom Side The rear and right panel and bottom side contains a Restore Defaults button, the ports for the unit's data and power connections. * Actual ANTENNA may vary depending on model. - Page 12 WELL WRC500N / WRC5010N / WRC5010NU Label Function ANTENNA 1 fixed ANTENNA ON/OFF Power on/off the device SWITCH POWER Connects to the supplied power adaptor LAN 4/3/2/1 Connects the device via LAN Ethernet to up to 4 PCs Connects the device via WAN Ethernet to xDSL /...
-
Page 13: Computer Configurations Under Different Os, To Obtain Ip Address Automatically
WELL WRC500N / WRC5010N / WRC5010NU Computer configurations under different OS, to obtain IP address automatically Before starting the 802.11n WLAN Router configuration, please kindly configure the PC computer as below, to have automatic IP address / DNS Server. For Windows 98SE / ME / 2000 / XP 1. - Page 14 WELL WRC500N / WRC5010N / WRC5010NU 2. Single RIGHT click on "Local Area connection", then click "Properties".
- Page 15 WELL WRC500N / WRC5010N / WRC5010NU 3. Double click on "Internet Protocol (TCP/IP)".
- Page 16 WELL WRC500N / WRC5010N / WRC5010NU 4. Check "Obtain an IP address automatically" and "Obtain DNS server address automatically" then click on "OK" to continue. 5. Click "Show icon in notification area when connected" (see screen image in 3. above) then Click on "OK" to...
-
Page 17: For Windows Vista- 32 / 64
WELL WRC500N / WRC5010N / WRC5010NU For Windows Vista- 32 / 64 1. Click on “Start” -> “Control Panel” -> “View network status and tasks”. - Page 18 WELL WRC500N / WRC5010N / WRC5010NU 2. In the Manage network connections, click on “Manage network connections” to continue.
- Page 19 WELL WRC500N / WRC5010N / WRC5010NU 3. Single RIGHT click on "Local Area connection", then click "Properties".
- Page 20 WELL WRC500N / WRC5010N / WRC5010NU 4. The screen will display the information "User Account Control" and click "Continue" to continue. 5. Double click on "Internet Protocol Version 4 (TCP/IPv4)".
