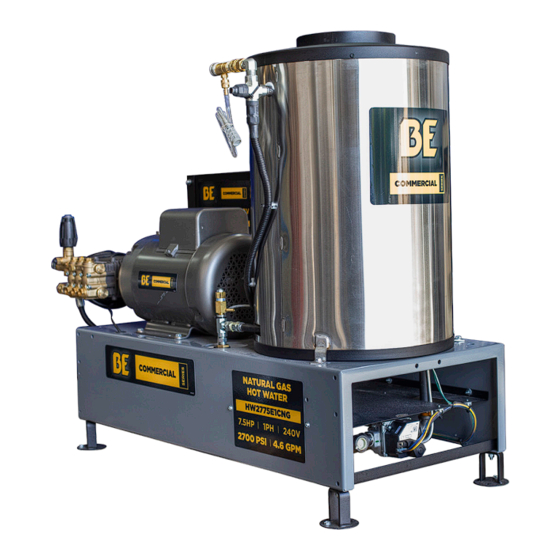

- Page 1 COMMERCIAL NATURAL GAS HOT WATER WASHER HW255E1CNG HW255E3CNG HW2775E1CNG HW2775E3CNG User Manual 85.610.594...
- Page 2 TABLE OF CONTENTS Introduction & Product Info Parts Breakdown Introduction & Production info 5 HP units Breakdown Important Safety Warnings 5 HP Phase units Parts Reference List Important Safety Warnings & Symbols 7 HP units Breakdown 7 HP Phase units Parts Reference List Product Specifications Electrical Box Assembly Specifications Chart...
- Page 3 Product Registration Please register your product online to get the maximum benefit from your warranty. Use the QR code below or register online at: bepowerequipment.com/product-registration It is recommended that you record the product identification numbers in this manual. These numbers are important to have on hand if you need to contact technical support (1-866-850-6662).
- Page 4 IMPORTANT SAFETY WARNINGS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. This is indicates a hazard which, if not avoided, will result in serious injury or DANGER death.
- Page 5 IMPORTANT SAFETY WARNINGS WARNING Serious injury or death may occur from a fire caused by a muffler spark. Serious injury or death may occur if system safety’s are not properly maintained. • A spark arrester must be added to the muffler of this engine when using on land covered with any flammable agricultural crop (hay and grain), and if they are used in or near brush or forested areas.
- Page 6 IMPORTANT SAFETY WARNINGS WARNING Serious injury may occur from touching the gasoline engine, muffler, or heat exchanger. These areas can remain hot for some time after the pressure washer is shutdown. • Never allow any part of your body to contact the gasoline engine, muffler, or heat exchanger. WARNING Serious injury may occur from a pressure washer malfunction or exploding accessories if incorrect system components, attachments, or accessories are used.
- Page 7 UNIT SPECIFICATIONS MODEL HW255E1CNG HW255E3CNG HW2775E1CNG HW2775E3CNG 2700 @4.6 2700 @4.6 PSI & GPM 2500 @3.5 GPM 2500 @3.5 GPM HEATER BTU’s 345,500 345,500 345,500 345,500 INPUT PRESSURE 7 INCHES 7 INCHES 7 INCHES 7 INCHES MANIFOLD PRESSURE 2.6 INCHES 2.6 INCHES 2.6 INCHES 2.6 INCHES...
- Page 8 BEFORE STARTING THE UNIT When unpacking the unit, if you find damage due to shipping, contact your dealer or BE Power FUEL SUPPLY Equipment immediately. For stationary installations, have the gas piping installed by a licensed gas fitter. This must be done ELECTRICAL SUPPLY in accordance with the gas codes;...
- Page 9 PRE-OPERATING INSTRUCTIONS COMBUSTION AIR SUPPLY OUT DOOR ROOF STACK SPACING RE- QUIREMENTS The 5004N/P heater is comprised with an Atmospheric burner and requires air for Must Conform to local standards. Below combustion and ventilation. drawing is a Guide. The appliance installer will know how and where to place a supply air duct.
- Page 10 STARTING & SHUTTING DOWN THE PRESSURE WASHER CHANGING PRESSURE WARNING The variable Unloader Valve is already set Never run the washer without water. to full pressure. Do not adjust the Unloader past the maximum pressure, as this will not STARTING THE MACHINE increase the performance, and the excessive 1) Turn gas supply valve “ON”...
- Page 11 SAFETY COMPONENTS FLOW SWITCH THERMOSTAT The flow switch prevents the burner from being The built-in thermostat stops the unit from turned on if there is insufficient water. Proper overheating. Maximum temperature of the unit water flow causes the magnetic core to be is 230°F.
- Page 12 MAINTENANCE SCHEDULE PROCEDURE DAILY 3 MONTHS 6 MONTHS 9 MONTHS 12 MONTHS Check engine oil level (ONLY use the type and grade of oil specified for this pump.) Change engine oil***** Check water pump oil level Change water pump oil ** Oil leak inspection Fuel leak inspection Water leak inspection...
- Page 13 STORAGE & WINTERIZING STORAGE & WINTERIZING When storing the unit for winter, it is • Put the other end of the hose into a container of windshield washer or antifreeze. important to ensure it is stored in the right • Turn on Cleaner and open gun until liquid environment.
- Page 14 UNIT BREAKDOWN HW255E1CNG HW2775E1CNG...
- Page 15 PARTS REFERENCE LIST HW255E1CNG HW2775E1CNG ITEM PART NUMBER DESCRIPTION QTY. HE X44-65 BURNER RING HE X44-53 BURNER RING HE 36C68-423B GAS VALVE ELECTRONIC IGNITION- PILOT RELIGHT HE S861041003 ELECTRONIC IGNITION MODULE Q3451ASSY PILOT BURNER ASSEMBLY 36H32-423 24V ELECTRONIC IGNITION GAS VALVE S8610H3018 IGNITION MODULE RU500B-1T...
- Page 16 UNIT BREAKDOWN HW255E3CNG HW2775E3CNG...
- Page 17 PARTS REFERENCE LIST HW255E3CNG HW2775E3CNG ITEM PART NUMBER DESCRIPTION QTY. HE X44-65 BURNER RING HE X44-53 BURNER RING HE 36C68-423B GAS VALVE ELECTRONIC IGNITION- PILOT RELIGHT HE S861041003 ELECTRONIC IGNITION MODULE Q3451ASSY PILOT BURNER ASSEMBLY 36H32-423 24V ELECTRONIC IGNITION GAS VALVE S8610H3018 IGNITION MODULE RU500B-1T...
- Page 18 ELECTRICAL BOX ASSEMBLY BREAKDOWN HW255E1CNG HW2775E1CNG CONTACTOR (REFER TO CHART ON PAGE 19) OVERLOAD RELAY (REFER TO CHART ON PAGE 19)
- Page 19 PARTS REFERENCE LIST HW255E1CNG HW2775E1CNG ITEM PART NUMBER DESCRIPTION QTY. ELCA7 ROTARY SWITCH PUMP/BURNER EL345603 SHOCKSAFE FUSEHOLDER 1/4x1.25 ELGGC5 1/2 AMP GLASS FUSE ELTR86 OFF-120 DEGREES THERMOSTAT ELCT1S30 CT1S30 OFF DELAY TIMER SSAC ELMH50AG 600/24V 50A TRANSFORMER EL6M30A2SQ 600V 30A 2POLE FUSE HOLDER ELATDR1/2 TIME DELAY FUSE 600V 1/2A ELECTRICAL CONTACTOR AND OVERLOAD PARTS LIST...
- Page 20 ELECTRICAL BOX ASSEMBLY BREAKDOWN HW255E3CNG HW2775E3CNG CONTACTOR (REFER TO CHART ON PAGE 21) OVERLOAD RELAY (REFER TO CHART ON PAGE 21)
- Page 21 PARTS REFERENCE LIST HW2775E3CNG HW255E3CNG ITEM PART NUMBER DESCRIPTION QTY. ELCA7 ROTARY SWITCH PUMP/BURNER EL345603 SHOCKSAFE FUSEHOLDER 1/4x1.25 ELGGC5 1/2 AMP GLASS FUSE ELTR86 OFF-120 DEGREES THERMOSTAT ELCT1S30 CT1S30 OFF DELAY TIMER SSAC ELMH50MG 50VA 240-24V 60Hz TRANSFORMER ELMH50CG 480-24V 50VA TRANSFORMER ELMH50AG 600-24V 50VA TRANSFORMER EL6M30A2SQ...
- Page 22 WIRING DIAGRAMS HW255E1CNG HW2775E1CNG...
- Page 23 WIRING DIAGRAMS HW255E3CNG HW2775E3NG...
- Page 24 COIL SERVICE CLEAN HEATING COIL DESCALING Remove burner from coil by removing the four If pressure drop in the coil is over 50 psi - flange mount nuts. Inspect inside of combus- descaling is recommended. Descaling requires tion chamber and if it is heavily sooted so that that use of highly corrosive chemicals.
- Page 25 WARRANTY All parts manufactured by BE Power Equipment FOB our factory or at any BE Power Equipment are warranted against defects and construction authorized depots, without charge, providing for 1 year and covered for 1 year labour. permission is first obtained from our factory and the part(s) returned prepaid.
- Page 26 MAINTENANCE NOTES...
- Page 27 MAINTENANCE NOTES...
- Page 28 THE POWER YOU NEED if you need assistance with the assembly or operation of your pressure washer please call 1-866-850-6662 or visit our website...
