Summary of Contents for Zap LINN LOW DRESSER

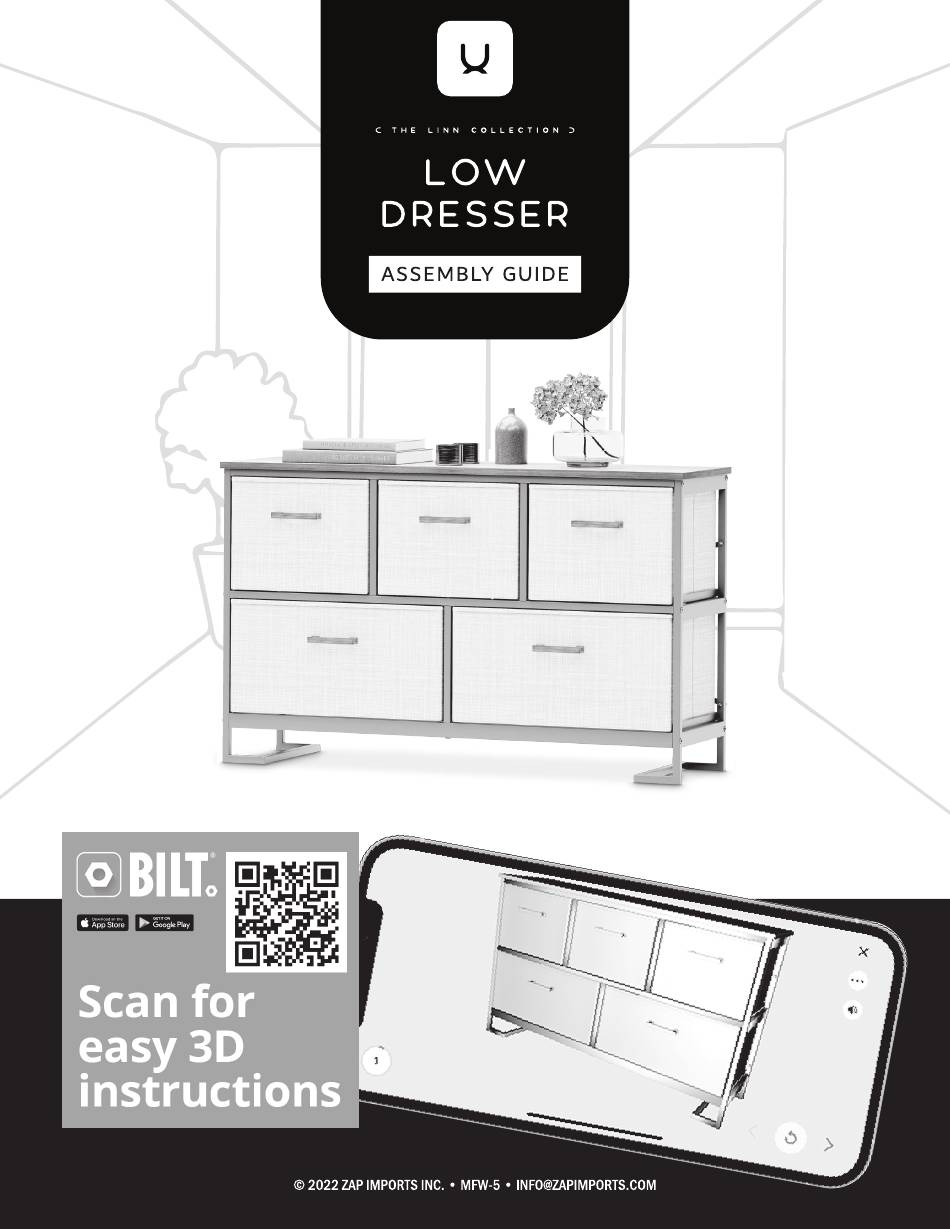

  • Page 1 - 1 -...
  • Page 2 COMPONENTS...
  • Page 3 STEP 1 Determine the top and bottom of the Bottom Rails (D). The top of the rails will have a smooth pilot hole, while the bottom of the rails will have a countersunk pilot hole (pilot hole with a circular cavity designed to seat the cone-shaped head of the screw) STEP 2 NOTE: Ensure that the back metal plates on...
  • Page 4 STEP 3 NOTE: Ensure that the back metal plates on the Middle Panel face the same way as the back metal plates on the rear side of the Side Panels. Attach one Middle Panel (F) to the Bottom Rails using 2 Screws (#2) STEP 4 STEP 5 Determine the top and bottom of the Middle...
  • Page 5 STEP 6 Secure the Middle Rails to the Side Panels using 4 Screws (#1) STEP 7 NOTE: Ensure that the back metal plates on the Middle Panels face the same way as the back metal plates on the rear side of the Side Panels. Attach 2 Middle Panels (F) to the Middle Rails using 4 Screws (#2) - 3 -...
  • Page 6 STEP 8 STEP 9 Determine the top and bottom of the Top Rails Attach 2 Top Rails (B) to the Middle Panels (B). The top will have countersunk pilot holes using 4 Screws (#1) closer to the center and the bottom will have NOTE: Ensure that the outer countersunk pilot outer countersunk pilot holes holes on the Rails are facing the floor...
  • Page 7 STEP 12 STEP 13 Secure the Top to the side of the assembly using 2 Screws (#2) Tighten all 6 Screws NOTE: The screws should be lightly tightened STEP 14 STEP 15 Attach the Brace Bars to the assembly using 4 Attach the two Brace Bars (L) at the center using Screws (#3) and 4 Capped Nuts (#3) 1 Hex Bolt (#4) and 1 Capped Nut (#4)
  • Page 8 STEP 16 STEP 17 Insert a Bin Bottom (H & I) into each Attach 1 Handle (G) to each Bin using 2 Handle corresponding Bin (H & I) for a total of 5 bins Screws STEP 18 Slide each Bin into place in the assembly - 6 -...
  • Page 9 STEP 19 NOTE: Adjust the rear Adjustable Screws first, and if the wobble persists, adjust the front Adjustable Screws as well Place the unit in its designated spot and level the unit if the floor is uneven. Turn the Adjustable Screws at the base of the Side Panels to level the assembly - 7 -...
