Push Compatible WiFi AC Phase Cut Dimmer
Important: Read All Instructions Prior to Installation

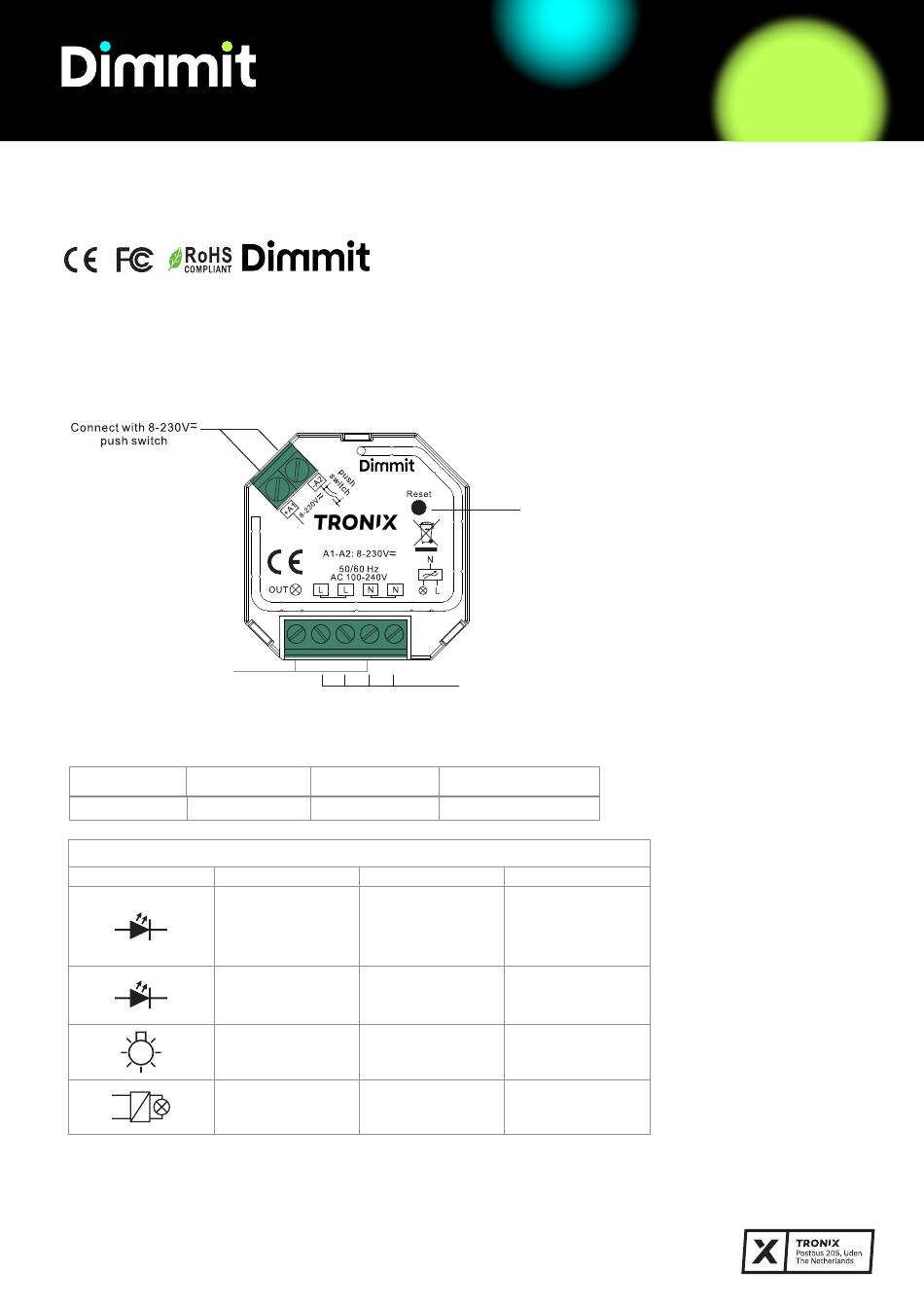

Function introduction
Article 214-300
1 CH 100-240VAC output
Product Data
Input Voltage
Output Voltage
100-240VAC
100-240VAC
Load Symbol
Incandescent lighting,
HV Halogen lamps
Low voltage halogen
lighting with electronic
transformers
• 100-240VAC Wide Input and Output Voltage
• WiFi control through smart phone APP
• 1 Channel Output, Up to 400W
• Input and Output with Screw Terminals,
• Safe and Reliable
• Trailing edge dimming
• Supports resistive loads and capacitive loads
USER MANUAL
Art. 214-300
Tronix Lighting | 5406XP 41 | Netherlands
Output Current
1.8A max
Compatible Load Types
Load Type
Maximum Load
200W @ 220V
Dimmable LED lamps
100W @ 110V
200W @ 220V
100W @ 110V
Dimmable LED drivers
400W @ 220V
200W @ 110V
200W @ 220V
100W @ 110V
• Single Wire Push Switch Input for Push Dim Function
• Great Compatibility with Universal 8V-230V~ Input Push Switches
• Works with Amazon Alexa and Google Home
• To dim and switch single color dimmable LED lamps,
traditional incandescent and halogen lights
• Mini Size, Easy to be Installed into a standard 86*86mm wall box
• Waterproof grade: IP20
Reset key:press and hold for over 10
seconds to reset the WiFi dimmer
AC 100-240V power input
Size(LxWxH)
Allowed Inrush Current
Cold Start 75A max.
45.5x45x20.3mm
Remarks
Due to variety of LED lamp
designs, maximum number
of LED lamps is further
dependent on power factor
result when connected to
dimmer.
Maximum permitted number
of drivers is 200W divided
by driver nameplate power
rating.
70020069
