SYNERGY MEDIA DRAWER - SA/MD

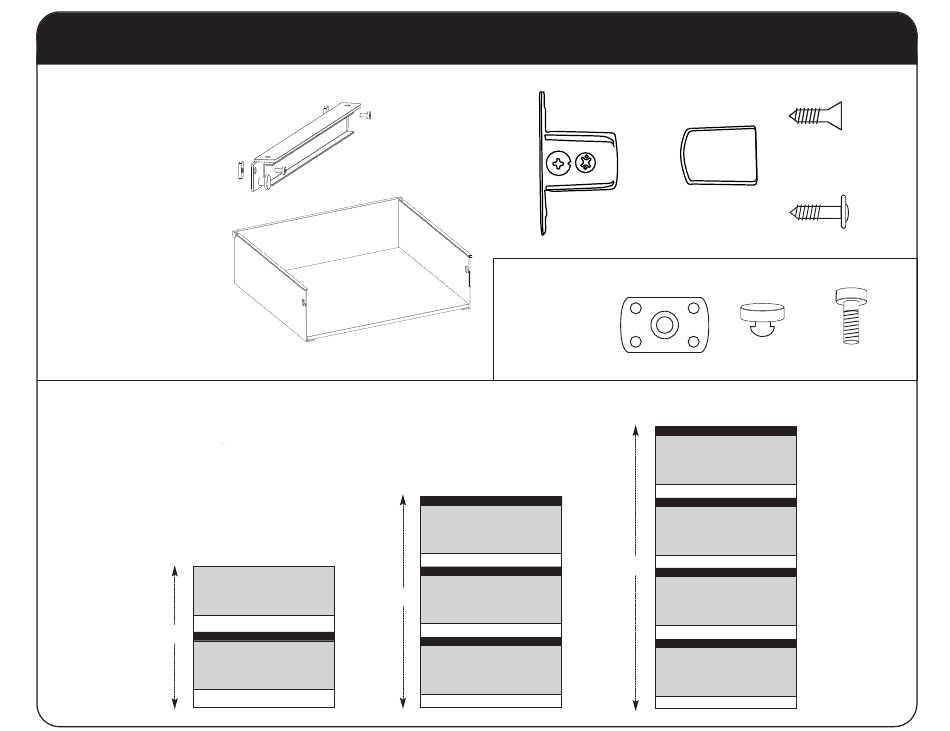

Parts
1 - Drawer Face (200-630)
2 - Metal Drawer Slides
1 - Bottom Panel (200-640)
1 - Drawer Back (200-650)
2 - Drawer Brackets (300-640)
6 - C/S Rivets
6 - Backup Washers
Drawer Side
Drawer Spacer Tool
Use the Spacer Tool
(included with base unit) for reference when
Refer to these measurements when installing
spacing drawers.
2 drawers on a SU20, 3 drawers on an SU30 or 4 drawers
on a SU40.
SU20
MAX DRAWERS=2
*No Adjustable Shelf on Top
DRAWER 1
GAP = 1.5"
17.75"
GAP = 1.5"
Metal Drawer Slides
Drawer Back
Drawer Side
Bottom Panel
Drawer
27.75"
SHELF
2x
(300-665)
Fixing Hook
Shelf Bracket Bag
PHK-150
(300-560) - Flat Nut
SU30
MAX DRAWERS=3
SHELF
DRAWER 1
GAP = 1.5"
37.75"
SHELF
GAP = 1.5"
SHELF
GAP = 1.5"
5x
2x
(300-110)
No. 6 Screw
11x
(300-685)
Cover Cap
(300-115)
Black Screw
4x
4x
(300-610)
Rubber Tab
Low Head Screw
SU40
MAX DRAWERS=4
SHELF
DRAWER 1
GAP = 1.625"
SHELF
GAP = 1.625"
SHELF
GAP = 1.625"
SHELF
GAP = 1.625"
4x
(300-490)
Advertisement
Summary of Contents for Salamander Designs SYNERGY SA/MD
- Page 1 SYNERGY MEDIA DRAWER - SA/MD Parts 1 - Drawer Face (200-630) (300-110) 2 - Metal Drawer Slides No. 6 Screw Metal Drawer Slides 1 - Bottom Panel (200-640) 1 - Drawer Back (200-650) (300-685) (300-665) 2 - Drawer Brackets (300-640) Cover Cap Fixing Hook 6 - C/S Rivets...
- Page 2 Limited Warranty For ve full years Salamander Designs Ltd will repair or replace, at our option, any product defective in materials or craftsmanship. Salamander Designs Ltd. will not be responsible for any damage to or destruction of other equipment consequential to our equipment failure. Defective product must be given Return Authorization and is to be returned to the factory prepaid, in the original carton and packing material. Any damage incurred in a shipment not in original packaging shall be the responsibility of the owner.
- Page 3 Insert Drawer Slides Insert the weld nuts into the channels Insert the Rubber Tabs into the 2 holes Place the low heads in the 2 holes of each making sure that the rollers face the front of on the shorter part of the bracket with the drawer slide and attach loosely.
- Page 4 Insert Back Panel Add Fixing Hooks to Drawer Face Adjustment screws on the xing hook should face outside of the drawer box. Drop the back panel into place, rounded edge up, matching pilot holes with holes on the brackets and attach black screws from behind. NOTE: The two xing hooks that attach to the front panel are di erent.
