Summary of Contents for Sirclecorp SircleBind CB-230

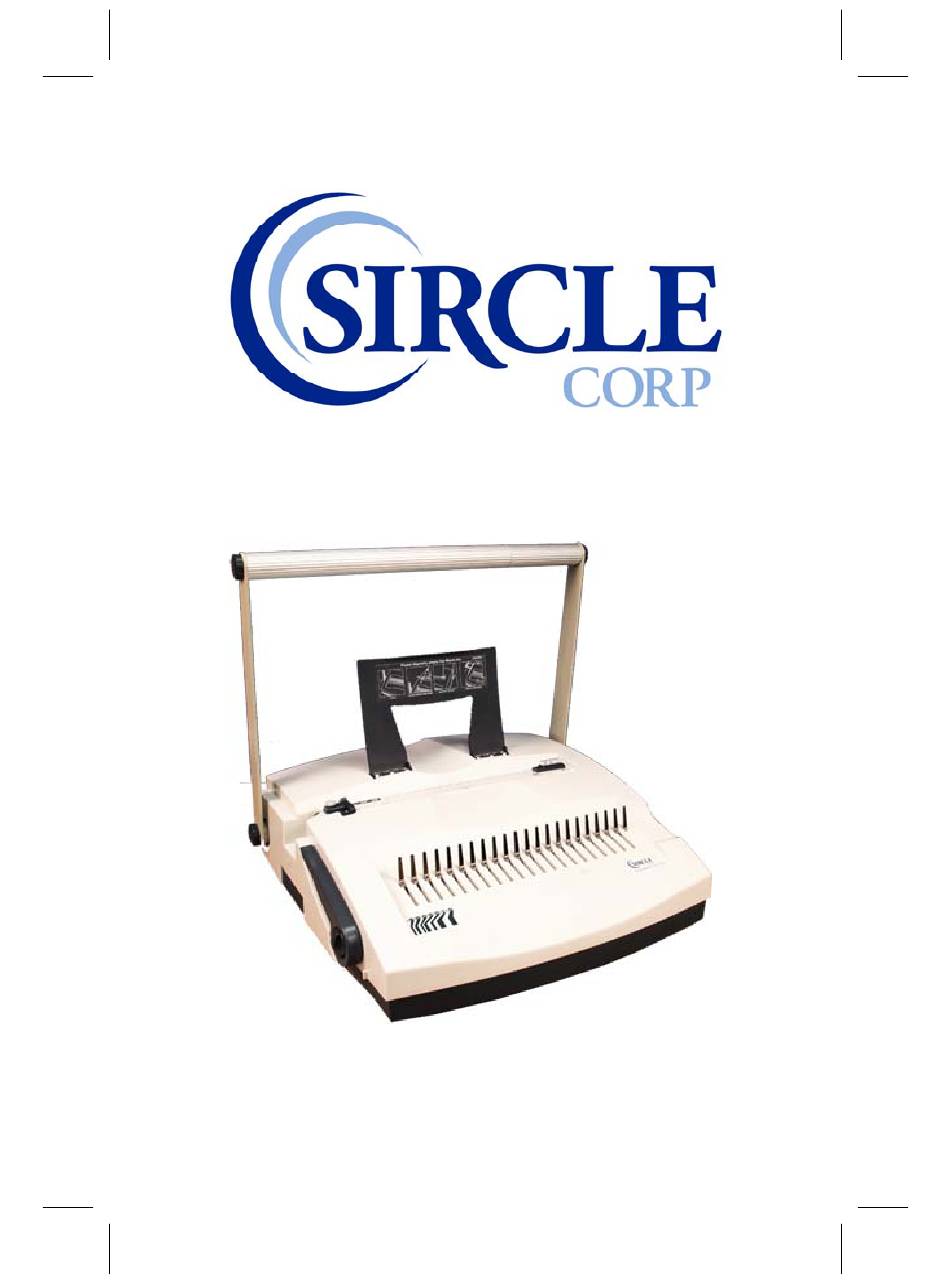

- Page 1 SircleBind CB-230 www.sirclecorp.com...
- Page 2 Thank you for your purchase of the SircleBind CB-230 man- ual plastic comb binding machine.. General Precautions: 1. Read the instructions carefully and thoroughly prior to using the machine. 2. Avoid punching metal objects such as staples or paper clips. This may jam the machine.
- Page 3 Assembly: 1. Place unit on flat surface. 2. Remove screws from the base of the unit—one located on the left of the unit and the other on the right. See Fig. 1.1) 3. Remove screw from the right side of the disassemble- able handle.
- Page 4 Punch (Continued): 4. Insert sheets into the appropriate punching throat. (Max. 23 sheets of 20 lb paper) For plastic comb punch- ing, use the back throat; for 3-hole punching, use the front throat. (See Fig. 2.3) 5. Firmly pull down on handle and release. 6.
- Page 5 5. Follow instructions 1-6 for regular sized documents. 6. Reverse the punched sheets. (See Fig. 2.9) 7. Make sure you place one punched hole over the metal pin. (See Fig. 2.10) 8. Push the punch button. 9. Remove punched document. Fig.
- Page 6 Bind (continued): 4. Pull the comb opening lever towards the back of the machine to open the comb. 5. Thread the sheets on the plastic comb. 6. Push the comb opening handle down towards the front to the machine to close the comb. 7.
- Page 7 Sheet Capacity Margin Guide Edge Guide Adjustable Paper Load Vertical Disengageables Machine Dimensions 17.3” x 18.9” x 16.9” Box Dimensions 20.5” x 21.5” x 11” MC Dimensions 21.5” x 22” x 11.5” Net Weight 27.5 lbs Gross Weight 33 lbs www.sirclecorp.com...
