Machine
Frame
Collar
1. INTRODUCTION
This instruction sheet describes the procedure for
setting the shut height on the Model "K"
AMP-O-LECTRIC Terminating Machines using Shut-
Height Gage 679655-[ ].
Reasons for reissue of this document are provided in
Section 3, REVISION SUMMARY.
2. SETTING THE SHUT HEIGHT
Gage Number 679655-1 should be used to get
NOTE
close to the proper shut height of the machine. Use
an applicator and crimp-height comparator (refer to
i
408-7424) to finalize the shut height/crimp height.
The additional use of an applicator and crimp
height comparator should NOT be required when
using 679655-2.
To avoid personal injury during this adjustment, be
DANGER
sure all power to the machine is disconnected.
STOP
1. Disconnect all power to the machine.
© 2011 Tyco Electronics Corporation, a TE Connectivity Ltd. Company
All Rights Reserved
*Trademark
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or Company names may be trademarks of their respective owners.
Setting Shut Height on Model "K"
AMP-O-LECTRIC* Machines
Wedge
Setscrew

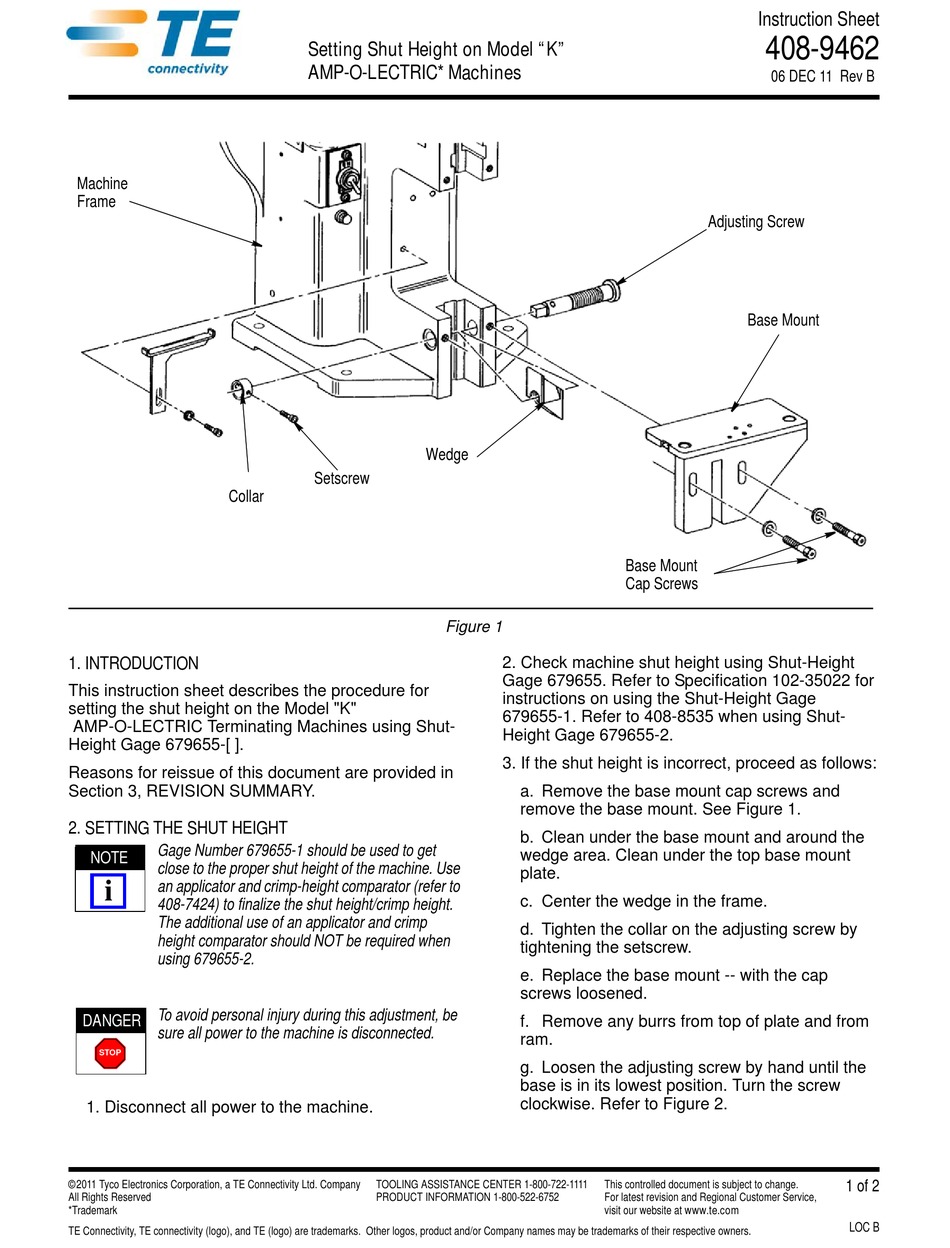

Figure 1
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Base Mount
Cap Screws
2. Check machine shut height using Shut-Height
Gage 679655. Refer to Specification 102-35022 for
instructions on using the Shut-Height Gage
679655-1. Refer to 408-8535 when using Shut-
Height Gage 679655-2.
3. If the shut height is incorrect, proceed as follows:
a. Remove the base mount cap screws and
remove the base mount. See Figure 1.
b. Clean under the base mount and around the
wedge area. Clean under the top base mount
plate.
c. Center the wedge in the frame.
d. Tighten the collar on the adjusting screw by
tightening the setscrew.
e. Replace the base mount -- with the cap
screws loosened.
f. Remove any burrs from top of plate and from
ram.
g. Loosen the adjusting screw by hand until the
base is in its lowest position. Turn the screw
clockwise. Refer to Figure 2.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com
Instruction Sheet
408-9462
06 DEC 11 Rev B
Adjusting Screw
Base Mount
1 of 2
LOC B
