Summary of Contents for Clarion Boombox

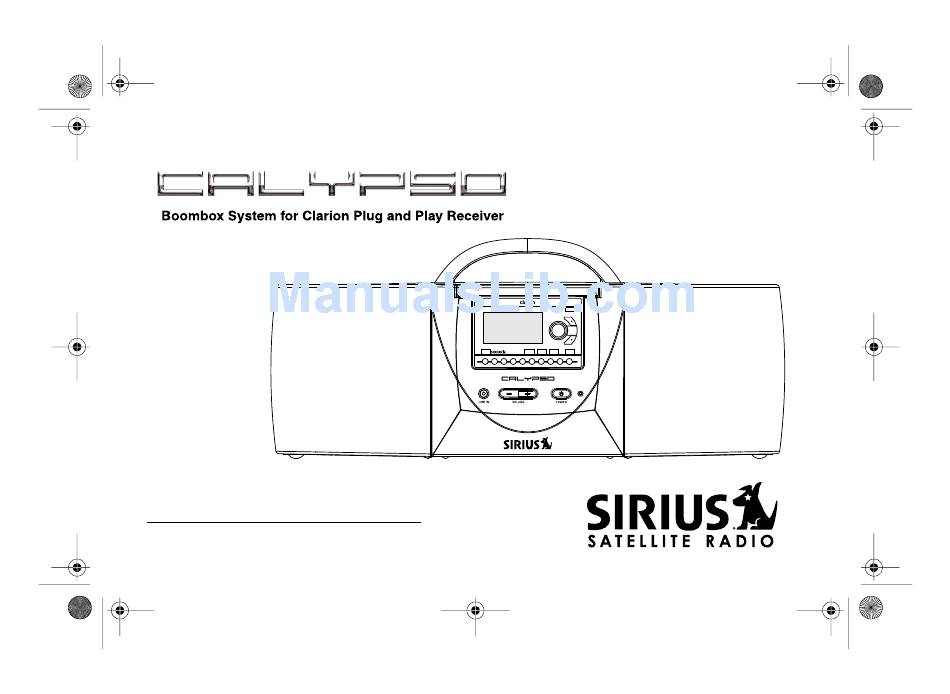

  • Page 1 DISP POWER JUMP MEMO BAND MENU User's Guide...
  • Page 2: Dear Customer

    © 2005 SIRIUS Satellite Radio Inc. "SIRIUS" and the SIRIUS dog logo are registered trademarks of SIRIUS Satellite Radio Inc. Calypso Boombox Your boombox requires the use of Clarion's Sirius Plug and Play Receiver, Calypso(sold seperately). For further flexibility an optional home and car kit are available at an authorized dealer near you.
  • Page 3: Fcc Notice

    User's Guide It is recommended that the batteries be removed when the Boombox is not in use for an extended period of time to prevent battery leakage. Do not position the Calypso Boombox on an inclined or unstable surface.
  • Page 4 Calypso Boombox 1. Line Input: Audio input from an external source. When Line Input is connected, the Boombox will automatically play the external source. It is recommended to turn the Calypso off while Line Input is in use to preserve battery power.
  • Page 5: Installing/Positioning The Antenna

    8 "D" batteries (sold seperately). The batteries are bypassed automatically whenever the AC Power Adapter is plugged in. 1. Turn the Boombox upside down and push the battery cover latches forward to flip the cover to the open position.
  • Page 6 Calypso Boombox Removing the Calypso Receiver from the Boombox Open the Protective Door and slide the Calypso Receiver out of the Boombox by using your thumb and forefinger. Grasp the Receiver on the sides and pull up to disengage. DISP...
  • Page 7: Connecting The Speakers

    Detaching Speakers Lift the Boombox with the front facing you. Twist the Speaker Enclosure towards you and seperate it from the main body. Repeat these steps for the opposite Speaker Enclosure. Connecting the Speakers Remove the Speaker Connector and un-wind the Speaker Cable from the Main Unit.
  • Page 8: Troubleshooting

    Confirm speakers are properly connected and that the receiver is properly engaged to the Boombox connector Replace batteries Check the antenna connection in the rear of the Boombox and verify that the receiver is properly engaged to the Boombox connector...
  • Page 9 User's Guide...
  • Page 10: Specifications

    Calypso Boombox Specifications Nominal Output Power per Channel...5 Watts RMS Total Harmonic Distortion (THD)... Frequency Response... Signal-to-Noise Ratio... Line Input Impedance... Line Input Level... Line Input Connector Type...3.5mm Stereo Jack (1/8") Battery Type and Quantity..."D" Cell, 8 total Overall Dimensions...
  • Page 11 9. Should you have any difficulties with the performance of this product during the warranty period, please call or visit our web site (www.clarion.com) for a listing of Authorized Warranty Ser- vice Centers in your area. You may also contact Clarion at the address listed below. In USA:...
  • Page 12 Clarion Corporation of America 661 West Redondo Beach Blvd. www.clarion.com 200504-CLBB-10 Rev. 3...
