RACEceiver LITEceiver Advanced Instructions

Advanced Instructions

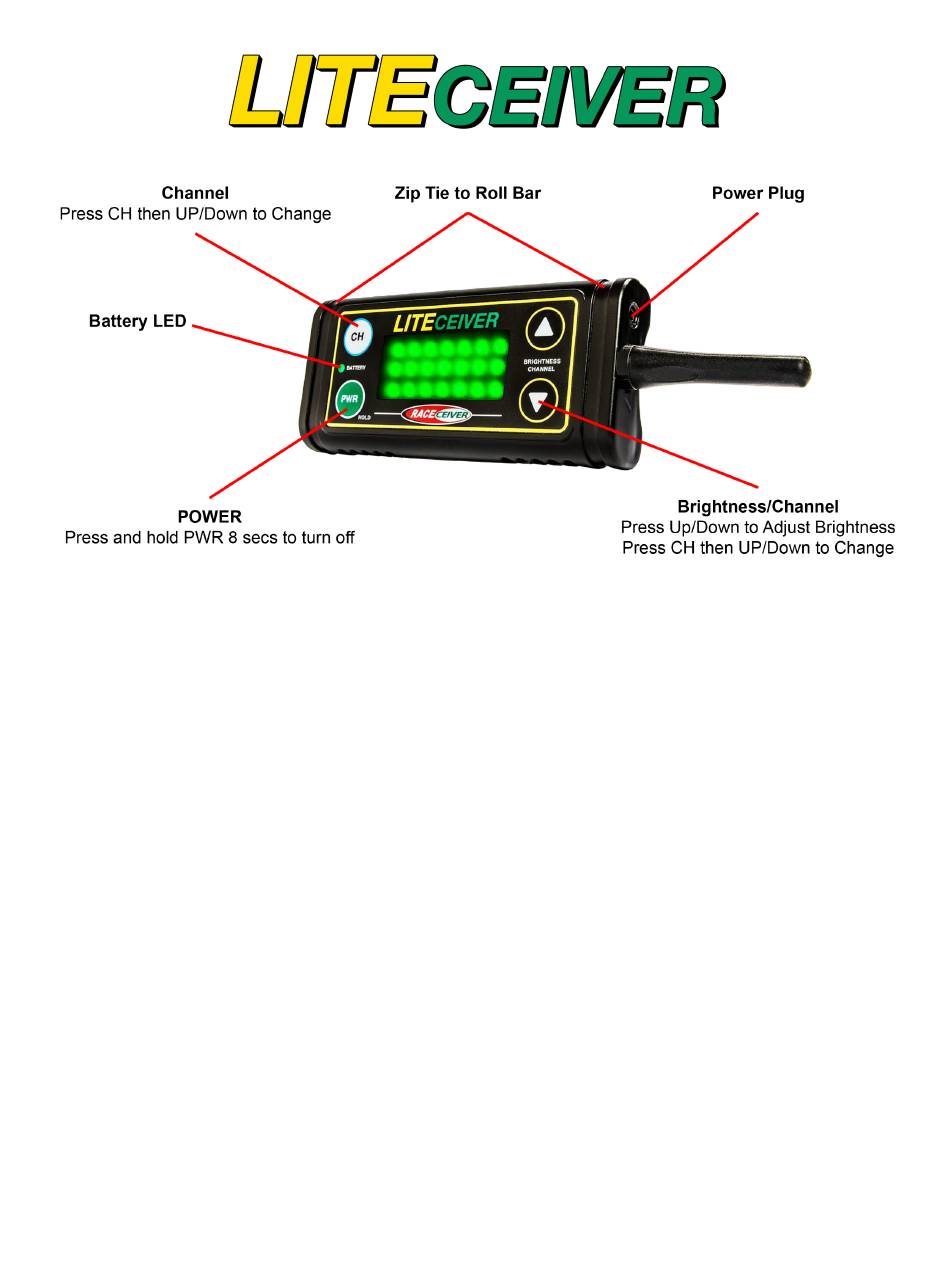

Startup

Pressing and holding the PWR button or connecting a charging cable will turn the unit on. The power LED will illuminate

immediately and an LED tracer will run through the LEDs as a test pattern. The firmware version will be displayed followed

by a bar graph display of the battery charge level and then the channel setting. It will then go directly into operational mode.

Green power LED indicates a high charge level. Yellow power LED indicates a medium charge level. Red power LED

indicates a low charge level. If the charging cable is connected the power LED will flash.

After power up, the flag LEDs will not be illuminated and the unit will wait for flags to be received.

If a RED flag is received, the RED flag will flash 3 times at full brightness and then remain solid. If dimming is enabled

(brightness set to a value lower than max brightness), the RED flag will dim after 5 seconds. If RED flags are received

consecutively, the flashing will only occur after the first reception.

If a WHITE flag is received, the WHITE flag will display at full brightness. If dimming is enabled (brightness set to a value

lower than max brightness), the WHITE flag will dim after 5 seconds.

If a YELLOW flag is received, the YELLOW flag will flash 3 times at full brightness and then remain solid. If dimming is

enabled (brightness set to a value lower than max brightness), the YELLOW flag will dim after 5 seconds. If YELLOW flags

are received consecutively, the flashing will only occur after the first reception.

If a CLEAR flag is received, the flag LEDs will be turned off.

If a GREEN flag is received, the GREEN flag will display at full brightness. If dimming is enabled (brightness set to a value

lower than max brightness), the GREEN flag will dim after 5 seconds.

If a CHECKER flag is received, the CHECKER flag will display at full brightness. If dimming is enabled (brightness set to a

value lower than max brightness), the CHECKER flag will dim after 5 seconds. The CHECKER flag will alternate between 2

patterns to simulate a waving flag condition.

Table of Contents

Do you have a question about the LITEceiver and is the answer not in the manual?

Page 1 Advanced Instructions Startup Pressing and holding the PWR button or connecting a charging cable will turn the unit on. The power LED will illuminate immediately and an LED tracer will run through the LEDs as a test pattern. The firmware version will be displayed followed by a bar graph display of the battery charge level and then the channel setting.
Page 2 Brightness Setting Pressing the UP or DOWN button will illuminate the flag LEDs in white at the current brightness. There are 8 brightness levels. Consecutive presses of the UP button will increase the brightness until it reaches the maximum level. Consecutive presses of the DOWN button will decrease the brightness until it reaches the minimum level.
