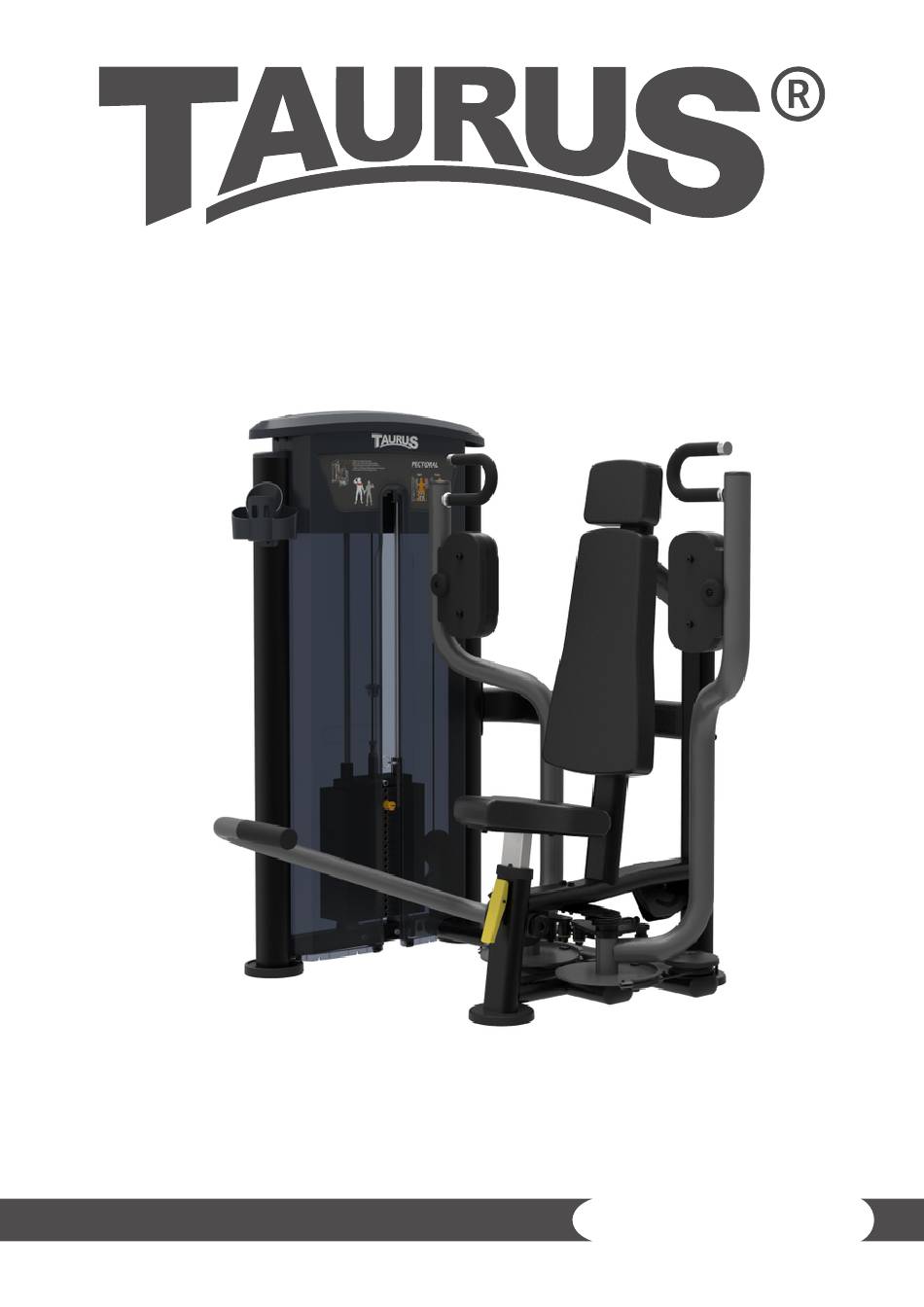

Owner's Manual
PECTORAL
IT95
TF-IT9504
TAURUS® is a registered brand of the company Sport-Tiedje GmbH.
All rights reserved. Any use of this trademark without the explicit written permission of Sport-Tiedje is prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PECTORAL IT95 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Taurus PECTORAL IT95

Summary of Contents for Taurus PECTORAL IT95

  • Page 1 Owner‘s Manual PECTORAL IT95 TF-IT9504 TAURUS® is a registered brand of the company Sport-Tiedje GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Sport-Tiedje is prohibited.

  • Page 2: Table Of Contents

    Table Of Contents CAUTION! Read all precautions and instructions in this manual before using this equipment. Important Safety Instructions----------------------------------------------------------- 3 Instructions-------------------------------------------------------------------------------- 5 Exploded View and Parts List------------------------------------------------------------ 6 Measurement Guide--------------------------------------------------------------------- 18 Assembly Instructions------------------------------------------------------------------ 19 Assembly--------------------------------------------------------------------------------- 20 Adjust Instructions---------------------------------------------------------------------- 36 Exercise Instructions-------------------------------------------------------------------- 36 Maintenance Schedule------------------------------------------------------------------ 37 General Maintenance Information----------------------------------------------------- 38 Weight Training Tips-------------------------------------------------------------------- 39...

  • Page 3: Important Safety Instructions

    Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equipment, basic precautions should always be taken, including the following: 1. Read all instructions before using the equipment. These instructions are written to ensure your safety and to protect the unit. 2.
  • Page 4 Important Safety Instructions Personal Safety During Assembly Read each step in the assembly instructions and follow the steps in sequence. Do not skip ahead. If you skip ahead, you may learn later that you have to disassemble components and that you may have damaged the equipment. Assemble and operate the equipment on a solid, level surface.

  • Page 5: Instructions

    Instructions Before beginning assembly please take the time to read instructions thoroughly. Please use the various lists in this manual to make sure that all parts have been included in your shipment. When ordering, use part number and description from the lists.

  • Page 6: Exploded View And Parts List

    Exploded View and Parts List Overall Item N o. Part No. Des cription Grade No. IT950101ASSY Weight Stack Frame ASSY IT950121ASSY Top Brack et ASSY IT950122ASSY Bottom Bracket ASSY IT95012300 Rear Bracket IT95014200 Top Plate IT95014400 Guide Rod Φ19*1242 IT95015100 Top Cover IT95015200 Training Placard Cover...
  • Page 7 Exploded View and Parts List Overall Item N o. Part No. Des cription Grade No. IT80023000 Weight Rubber Bumper IT95016100 Guide Rod Fixing SleeveΦ25*Φ19*45 FE97212000 Circ le Ring Φ62.5*5 FE97211900 Cap Φ60 HFOPT900-04A0602 Spring FE97122300 Threaded Column FE97122100 Pulley Spacer1 FE97193400 Pulley Spacer SG-8005A2100...
  • Page 8 Exploded View and Parts List Full Shroud Overall...
  • Page 9 Exploded View and Parts List Half Rear Shroud Overall...
  • Page 10 Exploded View and Parts List Weight Stack Frame ASSY Item N o. Grade No. Part No. Des cription IT95010100 Weight Stack Frame GB17880.5M6*16.5DS17 Rivet Nut M6 AC32705800 U-nut M6 IT95015700 Foot Plate IT95015900 Plastic Block IT95015800 Plug Φ95*81.1 GB818M6*20DHS2 Cross Recessed Pan Head Sc rew M6*20...
  • Page 11 Exploded View and Parts List Startup Frame ASSY Item N o. Grade No. Part No. Des cription 17.1 IT95040700 Startup Frame 17.2 FE970112000 Foot Set 17.3 IN-D51202800 Rubber Sleeve Φ32*25.5 17.4 ROC-IT1012400 Rubber BumperΦ25 Connection Frame ASSY Item N o. Grade No.
  • Page 12 Exploded View and Parts List Left Swing Frame ASSY Right Swing Frame ASSY Item N o. Grade No. Part No. Des cription 16.1 IT95040600 Left Swing Frame 16.2 GB2766005-2RSC3NBK Bearing 16.3 IT80044000 Rubber Sleeve Φ32*25.5 16.4 GB70BTM10*25DN18 Socket Head Cap Screw M10*25 16.5 DQ10DN2C Flat Washer Φ11*Φ30*2...
  • Page 13 Exploded View and Parts List Main Frame ASSY Item N o. Part No. Des cription Grade No. 11.1 IT95040100 Main Frame 11.2 IT95120900 Seat Pad Support 11.3 IT95014500 Adjustable Support 11.4 IT95014300 Aluminum Tube Guide 11.5 IT95122200 Plastic Plug 11.6 CWRVL0012200 Roll Pin 11.7...
  • Page 14 Exploded View and Parts List Back Pad ASSY Head Pad ASSY Item N o. Grade No. Part No. Des cription 34.1 IT95017100 Back Pad 34.2 IT95017300 Back Pad Cover 34.3 IT95017500 Back Pad Support Plate 34.4 GB70M10*15DS20 Socket Head Cap Screw M10*15 34.5 GB846ST4.2*19DHS C ross Recessed Countersunk Head Tapping Screw ST4.2*19...
  • Page 15 Exploded View and Parts List Left Arm Frame ASSY Item N o. Grade No. Part No. Description 14.1 IT95040400 Left Arm Frame 14.2 FE97211900 Cap Φ60 14.3 IT95041700 Grip 14.4 IT90102200 Aluminum Grip Ring 14.5 IT95022100 Aluminum Grip Cap 14.6 GB2766005-2RSC3NBK Bearing 14.7...
  • Page 16 Exploded View and Parts List Right Arm Frame ASSY Item N o. Grade No. Part No. Description 13.1 IT95040300 Right Arm Frame 13.2 FE97211900 Cap Φ60 13.3 IT95041700 Grip 13.4 IT90102200 Aluminum Grip Ring 13.5 IT95022100 Aluminum Grip Cap 13.6 GB2766005-2RSC3NBK Bearing 13.7...
  • Page 17 Exploded View and Parts List Tension Cable ASSY Item N o. Grade No. Part No. Des cription 22.1 IT95120801 Tension Cable 22.3 HF900-03A1002 Hex Flange Nut 22.4 BNH0562 Strap Bracket 22.5 GB70M10*35*15DN18 Socket Head Cap Screw M10*35 22.6 NM10DN2 Nylon Lock Nut M10...

  • Page 18: Measurement Guide

    Measurement Guide BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw FHCS = Flat Head Cap Screw HHB = Hex Head Bolt CRPHS = Cross Recessed Pan Head Screw Millimeters Inches Diameter of bolt M6(1/4") M8(5/16") M10(3/8") M12(1/2") M16(5/8") (mm/inch)

  • Page 19: Assembly Instructions

    Assembly Instructions Assembly of the equipment takes professional installers about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recommended to assemble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone.

  • Page 20: Assembly

    Assembly STEP 1 1. Attach two Adjustable Foot Plates (#31) to the Main Frame ASSY (#11). 2. Attach the Rear Bracket (#4) to the Top Rear Shroud (#9) using: two M6*10 CRPHS (#55) Note: Wrench Tighten Bolts.
  • Page 21 Assembly STEP 2 Attach the Bottom Cross Brace (#12) and the Rear Connection Frame (#19) to Main Frame ASSY (#11) and the Weight Stack Frame ASSY (#1) using: four M12*135 SHCS (#66) two M12*30 SHCS (#65) two M10*80 SHCS (#64) four Φ11*Φ20*2 Flat Washer (#68) eight Φ13*Φ24*2.5 Flat Washer (#69) two M12 Nylon Lock Nut (#72)
  • Page 22 Assembly STEP 3 1. Attach the Right Arm Frame ASSY (#13) and the Right Swing Frame ASSY (#15) and the Left-rotated Spring (#27) to the Main Frame ASSY (#11) using: two Φ31 Bushing (#50) 2. Attach the Left Arm Frame ASSY (#14) and the Left Swing Frame ASSY (#16) and the Right-rotated Spring (#26) to the Main Frame ASSY (#11) using: two Φ31 Bushing (#50) 3.
  • Page 23 Assembly STEP 4 1. Attach the Top Bracket ASSY (#2) and two/one Bottom Bracket ASSY (#3)to the Weight Stack Frame ASSY (#1) using: two M8*20 SHCS (#58) two Φ9*Φ16*1.6 Flat Washer (#67) two M10*75 SHCS (#63) four Φ11*Φ20*2 Flat Washer (#68) two M10 Nylon Lock Nut (#71) 2.
  • Page 24 Assembly STEP 5 1. Attach three 4.5" Pulleys (#32) to the Weight Stack Frame ASSY (#1) using: two M10*75 SHCS (#63) four Φ11*Φ30*2 Flat Washer (#68) one Pulley Spacer (#49) two M10 Nylon Lock Nut (#71) 2. Attach the Startup Frame ASSY (#17) to the Main Frame ASSY (#11) using: one Φ62.5*5 Circle Ring (#44) one Φ60 Cap (#45) one M10*25 SHCS (#60)
  • Page 25 Assembly STEP 6 Here is the assembly instruction for 160LBS Weights ! 1. Attach: two Guide Rod Φ19*1242 (#6) two Weight Rubber Bumper (#42) fifteen Weight Plate 10LBS (#100) two weight stack space (#101) one Top Plate (#5) to the Weight Stack Frame ASSY (#1) using: two Guide Rod Fixing SleeveΦ25*Φ19*45 (#43) two Spring (#46) 2.
  • Page 26 Assembly STEP 6 Here is the assembly instruction for 200LBS Weights ! 1. Attach: two Guide Rod Φ19*1242 (#6) two Weight Rubber Bumper (#42) nineteen Weight Plate 10LBS (#100) one Top Plate (#5) to the Weight Stack Frame ASSY (#1) using: two Guide Rod Fixing SleeveΦ25*Φ19*45 (#43) two Spring (#46) 2.
  • Page 27 Assembly STEP 6 Here is the assembly instruction for 235LBS Weights ! 1. Attach: two Guide Rod Φ19*1242 (#6) two Weight Rubber Bumper (#42) fifteen Weight Plate 15LBS (#102) two weight stack space (#101) one Top Plate (#5) to the Weight Stack Frame ASSY (#1) using: two Guide Rod Fixing SleeveΦ25*Φ19*45 (#43) two Spring (#46) 2.
  • Page 28 Assembly STEP 6 Here is the assembly instruction for 295LBS Weights ! 1. Attach: two Guide Rod Φ19*1242 (#6) two Weight Rubber Bumper (#42) nineteen Weight Plate 15LBS (#102) one Top Plate (#5) to the Weight Stack Frame ASSY (#1) using: two Guide Rod Fixing SleeveΦ25*Φ19*45 (#43) two Spring (#46) 2.
  • Page 29 Assembly All weight plate sticker paste schematic diagram...
  • Page 30 Assembly STEP 7 1. Attach two 4.5" Pulleys (#32) to the Weight Stack Frame ASSY (#1) using: two M10*50 SHCS (#62) four Φ11*Φ20*2 Flat Washer (#68) two M10 Nylon Lock Nut (#71) 2. Attach two 4.5" Pulleys (#32) to the Double Pulley Bracket (#21) using: two M10*50 SHCS (#62) four Φ11*Φ20*2 Flat Washer (#68) two M10 Nylon Lock Nut (#71)
  • Page 31 Assembly STEP 7...
  • Page 32 Assembly Full Shroud STEP 8 Tips: Pre-assemble the 8 bolts into the Weight Stack Frame ASSY and Bottom Bracket ASSY, not wrench tighten Bolts, Assemble the shroud with the bolts on. Then wrench tighten Bolts. 1. Attach the Front Shroud (#38) and the Right Front Shroud (#39) to the Weight Stack Frame ASSY (#1) and the Bottom Bracket ASSY (#3) using: four M6*20 CRPHS (#54) two M6*16 CRPHS (#56)
  • Page 33 Assembly Full Shroud STEP 8...
  • Page 34 Assembly Half Rear Shroud STEP 8...
  • Page 35 Assembly STEP 9 1. Attach the Back Pad ASSY (#34) and the Head Pad ASSY (#35) to the Main Frame ASSY (#11) using: four Φ11*Φ20*2 Flat Washer (#68) four M10*80 SHCS (#64) 2. Attach the Seat Pad (#36) to the Main Frame ASSY (#11) using: two M10*30 SHCS (#61) two Φ11*Φ20*2 Flat Washer (#68) 3.

  • Page 36: Adjust Instructions

    Adjust Instructions The Seat Pad adjustment 1. Push the Adjustable Support and adjust the Seat Pad to the desired position. 2. Make sure the pin gets into the hole completely. The use of Selector Pin W/Coil 1. Select an appropriate weight and put the Selector Pin W/Coil into the hole on it. 2.

  • Page 37: Maintenance Schedule

    Maintenance Schedule COMMERCIAL HOME LATEST DATE ENTRY ROUTINE MAINTENANCE MAINTENANCE Inspect; Links, Pull Pins, Snap Locks, DAILY WEEKLY Swivels, Weight Stack Pins Clean; DAILY WEEKLY Upholstery Inspect; DAILY WEEKLY Cables or Belts and their tension Inspect; WEEKLY 3 MONTHS Accessory Bars, and Handles Inspect;...

  • Page 38: General Maintenance Information

    General Maintenance Information Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: * Check all pieces for signs of visible wear or damage. * Check springs in snap hooks and pull-pins for proper tension and alignment. * If the spring sticks or has lost its rigidity, replace it immediately. Upholstery: * To ensure prolonged upholstery life and proper hygiene, all upholstered pads should be wiped down with a damp cloth after every workout.

  • Page 39: Weight Training Tips

    Weight Training Tips Use this manual to guide you through the basic exercises you can perform on your equipment. To gain maximum results and avoid possible injury, consult a fitness professional to develop your complete exercise program. Always consult your physician before starting any exercise program. To be successful in your exercise program, it is important to develop an understanding of the basic principles of strength training.
