AirHawk AH 265 User Manual

Portable air purifier
Hide thumbs Also See for AH 265:
Table of Contents

Advertisement

Quick Links

Download this manual
Portable Air Purifier
User's Guide
And
Maintenance
Manual
Div.of
ISO 9001:2008 CERTIFIED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AH 265 and is the answer not in the manual?

Questions and answers

Related Manuals for AirHawk AH 265

Summary of Contents for AirHawk AH 265

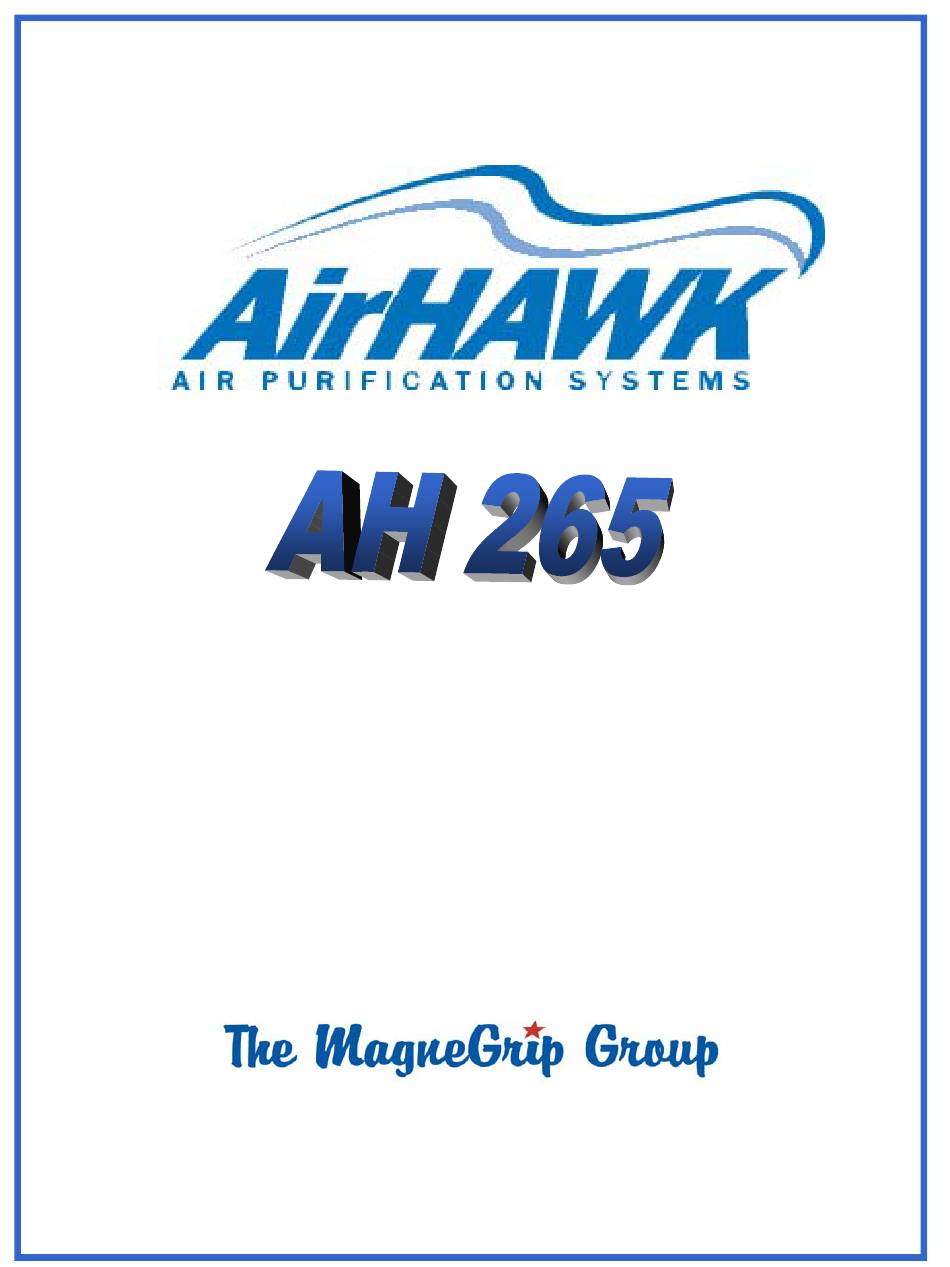

  • Page 1 Portable Air Purifier User’s Guide Maintenance Manual Div.of ISO 9001:2008 CERTIFIED...

  • Page 2: Important Safety Instructions

    Do not immerse the air purifier in water, as permanent damage will occur. Refer to the "Performing Maintenance" section in this user's guide. Read and save these instructions Thank you for purchasing an AirHawk AH 265 Air Purifier.
  • Page 3 FEATURES • A quiet, energy efficient backward-curved impeller that moves up to cubic feet of air per minute. • An advanced electronic control system that monitors air quality, room occupancy, air flow and volume, filter and ultraviolet lamp replacement times. •...
  • Page 4 (figure 1) will turn on and the ultraviolet lamp will be On. 2.Look into the air outlet at the top of the AirHAWK Purifier and confirm that the ultraviolet light is operating. You will see a faint blue glow when the light is on.
  • Page 5 Set Purifier for Room Size 1.Measure the room the Purifier is to serve, multiplying length by width to obtain a measurement in square feet (or square meters). 2.On the table, find the room size and identify the respiratory condition the unit is to serve.

  • Page 6: Select Operating Mode

    Select Operating Mode Select the desired operating mode. Read the mode descriptions below to determine your selection. To make your selection, press MODE button (figure 3) repeatedly, if necessary, until the appropriate mode light is On. AUTO MODE – This is the mode most commonly used. In this mode the electronic sensor combines the real time chemical sensor with blower speed if chemical sensor detects an unhealthful amount of chemicals...
  • Page 7 You should also keep an eye on the Service Panel which tells you if maintenance will soon be re- quired, or if maintenance is required for further operations. The service panel is described in Maintaining the AirHAWK AH 265.

  • Page 8: Uv Lamp Indicator Lights

    MAINTAINING THE AirHAWK AH 265 What the Service Panel Indicator Lights Mean Indicator lights on the Service Panel (figure 5) tell you if either the ultravio- let lamp or the air filters will soon need to be replaced, or if they must be replaced before using the Purifier again.

  • Page 9: Replacing The Filters

    Replacing the Filters When the Filter indicator lights, filter should be replaced within 30 Yellow days. Here's the step-by-step procedure: 1. Unplug the purifier’s power cord from the electrical outlet. 2. Rest the Purifier on it’s back to access the bottom of the unit. (figure 8) 3.

  • Page 10: Performing Maintenance

    Performing Maintenance Maintenance procedures are: Replacing the ultraviolet (UV) lamp. Replacing the filters. Replacing the UV Lamp When the UV Lamp indicator lights, the ultraviolet lamp should be Yellow replaced within 30 days. Here's the step-by-step procedure: 1. Unplug the Purifier's power cord from the electrical outlet. 2.
  • Page 11 Product Software Modification Change MagneGrip Group is dedicated to total air purification, through product qual- ity, regardless of cost. The filter service indicator light on your AirHAWK 265 air purifier service panel has been modified to turn yellow in (5) months and in (6) months.
  • Page 12 Restore the Purifier to normal operation as follows: 1.Set the unit in its normal operating position. 2.Plug the power cord into the wall outlet. SPECIFICATIONS - AirHAWK AH 265 Dimensions (inches) 21.5 wide x 18.0 high x 8.0 deep Weight...
  • Page 13 Shipping cost to the factory or service cen- ter is the responsibility of the owner of the AirHAWK AH 265 Air Purifier. Warranty re- turn shipping from the factory is prepaid for the first two years only. This warranty is provided to the original purchaser of the Air Purifier and may not be transferred, sold or bartered.

  • Page 14: Commonly Asked Questions

    Commonly Asked Questions Can the filters be cleaned? Yes, but only the 5-micro pre-filter. AirHAWK recommends simply vacuuming off the excess material collected on the front of the green pre-filter approximately every six months. The second stage HEPA filter cannot be cleaned and both filters must be replaced when the control panel indicates replacement or 1 year.
