Summary of Contents for INIM Electronics Air2-MC200

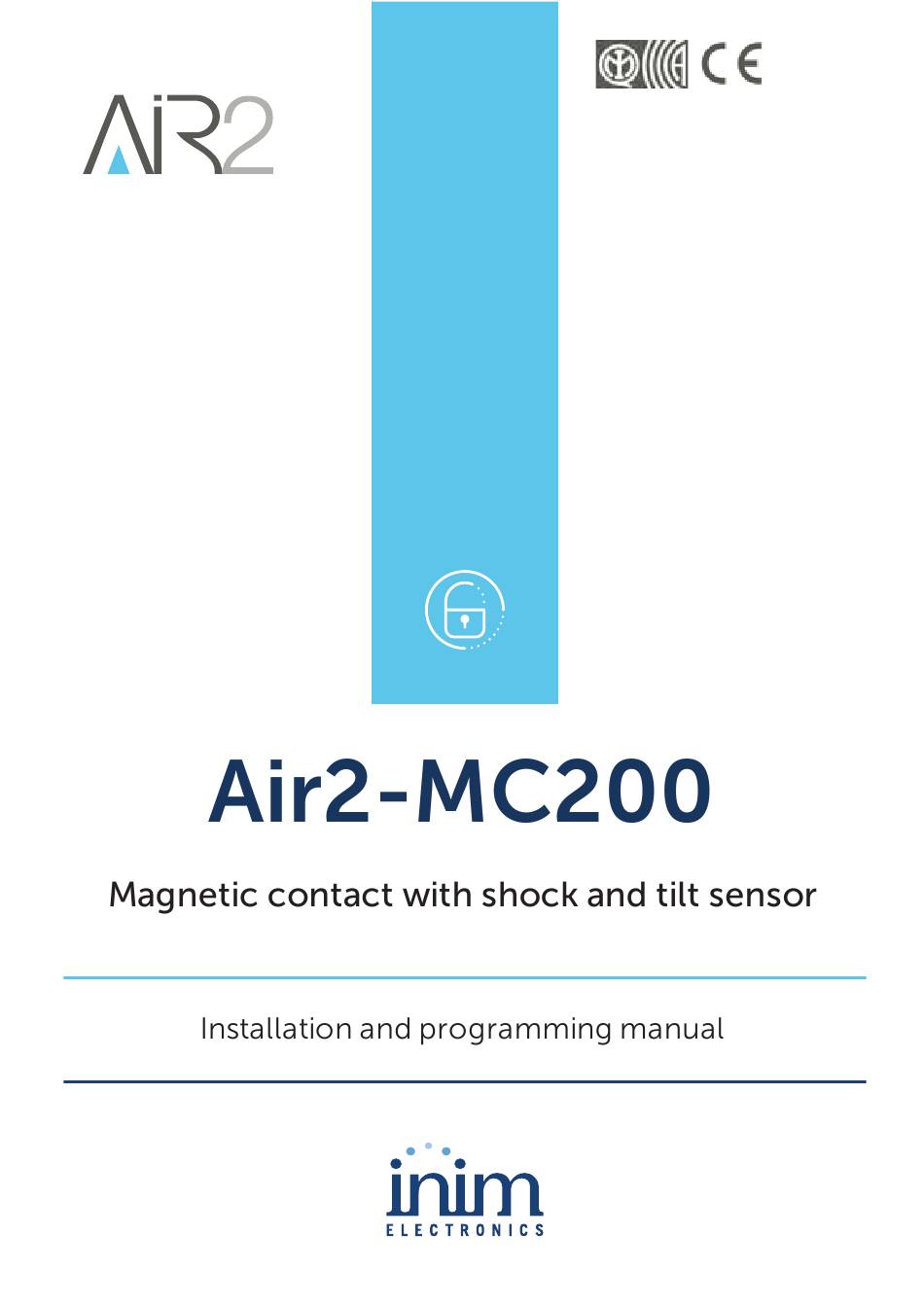

- Page 1 E E N 50131-1 EN 50131-2-6 EN 50131-5-3 EN 50130-4 EN 50130-5 INCERT CEB T031...
-
Page 2: Table Of Contents
Table of contents 1. Air2 system description 2. Description Air2-MC200 2.1 Description of parts 2.2 Air2-MC200 technical specifications 3. Installation of Air2-MC200 3.1 Enrolling a wireless device 3.2 Battery replacement 4. Programming wireless terminal 4.1 Wireless terminal parameters 4.2 Real-time 5. -
Page 3: Air2 System Description
Air2-Ergo 4 button remote-control key Air2-Pebble 4 button remote-control key Air2-MC200 magnetic contact with shock and tilt sensor in white or brown Air2-MC300 magnetic contact with two I/O terminals, in white or brown Air2-FD100 smoke detector ... -
Page 4: Description Air2-Mc200

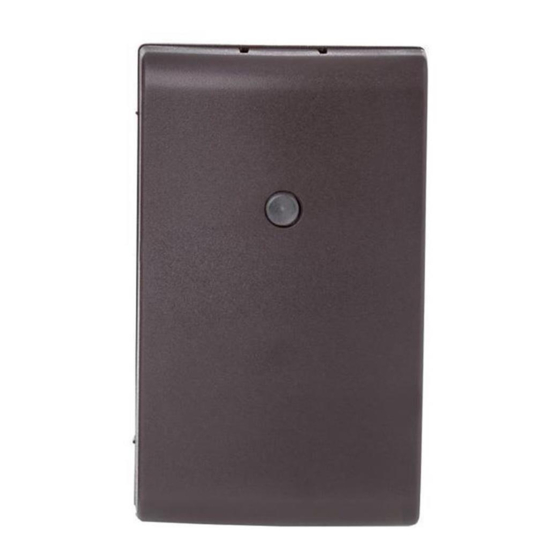

Air2-MC200 it also integrates a shock and a tilt sensor that allow its use without the need of the magnet. Air2-MC200 it is equipped with open and dislodgement tamper protection. -
Page 5: Description Of Parts
≤93% without condensation Relative humidity Security rating Environmental class 35 x 58 x 23mm Dimensions (W x H x D) 30 g Weight 13 x 40 x 14mm Magnet dimensions White, Brown Colours Air2-MC200 | © 2020 Inim Electronics S.r.l. -
Page 6: Installation Of Air2-Mc200
3. Installation of Air2-MC200 3. Installation of Air2-MC200 1. Choose a suitable mounting placement. Ferromagnetic materials which are located in the vicinity of the mounting position can influence the magnetic field and can result in the reduced operating capacity of the device. -
Page 7: Enrolling A Wireless Device
5. Press the ENROLL button on the wireless device. 3.2 Battery replacement When changing the battery, it is advisable to press the ENROLL button in order to be sure that the device is synchronized with the wireless transceiver. Air2-MC200 | © 2020 Inim Electronics S.r.l. -
Page 8: Programming Wireless Terminal
4. Programming wireless terminal 4. Programming wireless terminal The programming of a wireless terminal can only be done through the control panel programming software. On accessing the software, it is necessary to open a solution, configuration of the real system to be designed. - Page 9 Air2-BS200. tion Battery Percentage of the device battery charge. charge level Function to monitor the variation of the signal transmitted by the device and the background noise detected through time. RF analysis Air2-MC200 | © 2020 Inim Electronics S.r.l.
-
Page 10: General Information
Manual code: DCMIINE0A2MC2008E Revision: 100-DRAFT Copyright: The information contained in this document is the sole property of Inim Electronics S.r.l.. Copy- ing, reprinting or modification of this document, in part or as a whole, is not permitted without prior autho- rization in writing from Inim Electronics S.r.l.. -
Page 11: Documents For The Users
5.5 Documents for the users 5.5 Documents for the users Declarations of Performance, Declarations of Conformity and Certificates concerning to Inim Electronics S.r.l. products may be downloaded free of charge from the web address www.inim.biz, getting access to Extended Access and then selecting "Certifications" or requested to the e-mail address info@inim.biz or requested by ordinary mail to the address shown in this document. - Page 12 Via dei Lavoratori 10, Loc. Centobuchi 63076 Monteprandone (AP) ITALY Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz DCMIINE0A2MC2008E-100-20200525-DRAFT...
