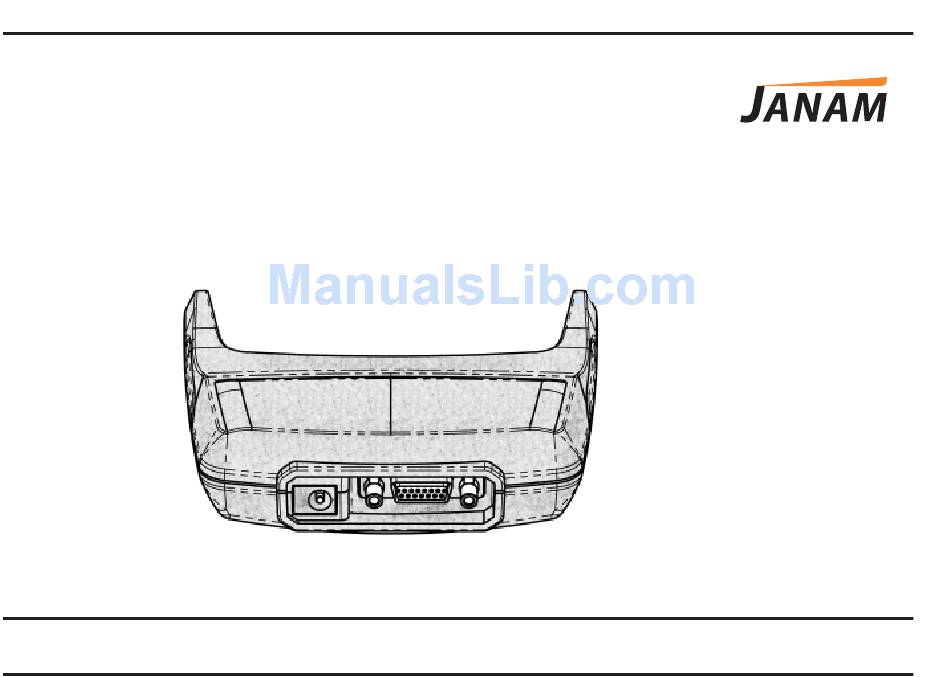

- Page 1 Cable Cup (CC-XP-1) Product Guide CC-XP-1 1-102207ccxp1...
- Page 2 Janam Technologies LLC assumes no responsibility for any damage or loss resulting from the use of this guide. Janam Technologies LLC assumes no responsibility for any loss or claims by third parties which may arise through the use of this product.
- Page 3 Janam’s Cable Cup (CC-XP-1) is a compact, easy-to-use, attachable accessory that expands the functionality of Janam’s rugged mobile computers by providing the user with a secure method to connect industrial cables for solutions utilizing communication protocols such as DEX, USB and Serial/RS-232.
- Page 4 Hardware Overview 15-Pin Communications Connector Power Connector (for use with AC-XP-1 or VA-XP-1) 3a. Left Spring Action Clamp 3b. Right Spring Action Clamp 4a. Left Bracket Clip 4b. Right Bracket Clip Handheld Connector Janam Technologies (Interior Center) - 3 -...
- Page 5 With the other hand, hold the CC-XP-1 with the front facing you (the label turned away from you). c. Holding the CC-XP-1 at the bottom of the Janam mobile device, align the bracket clips at the top of the CC-XP-1 with the sides of the Janam handheld device.
- Page 6 To Attach Compatible Cables to the Cable Cup a. Align the male end of the cable with the 15-pin communications connector at the bottom of the CC-XP-1. b. Firmly push connectors together.
- Page 7 Cable Requirements The CC-XP-1 is compatible with all DEX solutions and mobile printers from O’Neil and Zebra. Specifi c cables are required for each (available separately from Janam). See below for details. - 6 - DEX Compatible Cable Compatible Printers O’Neil Printers (All Models)
