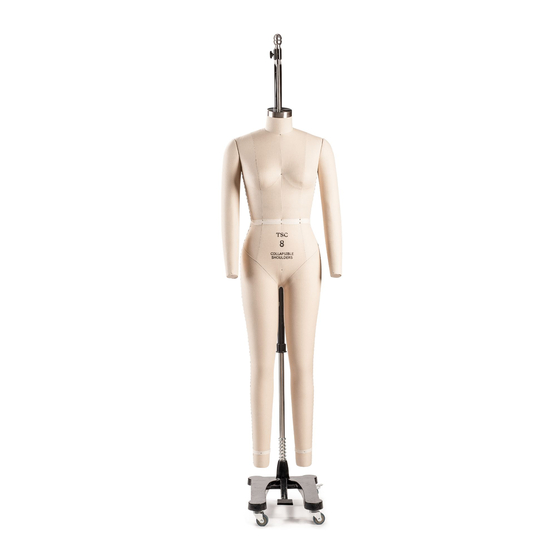

Full Body Assembly Guide (FCS)
Step 1.
Install all four castors (wheels) by screwing them into the
four holes underneath the base.
Slide the pedal into the base so that the center of the
pedal rests on the small bar and the end of the pedal is
squarely underneath the base.
Step 2.
The chrome pole has two ends. The top has two split
triangles protruding from the width of the pole. The
bottom of the pole has a mini spring and nut.
Slide the bottom of the chrome pole into the large spring
and through the hole of the base. The pole should pass
all of the way through until it rests on the back of the base
pedal (pushing the front of the pedal upwards). The pole
then needs to be secured to the base by tightening the
included t-screws for the base.
Copyright by TSC Group LLC
