Summary of Contents for BVE MATRIX

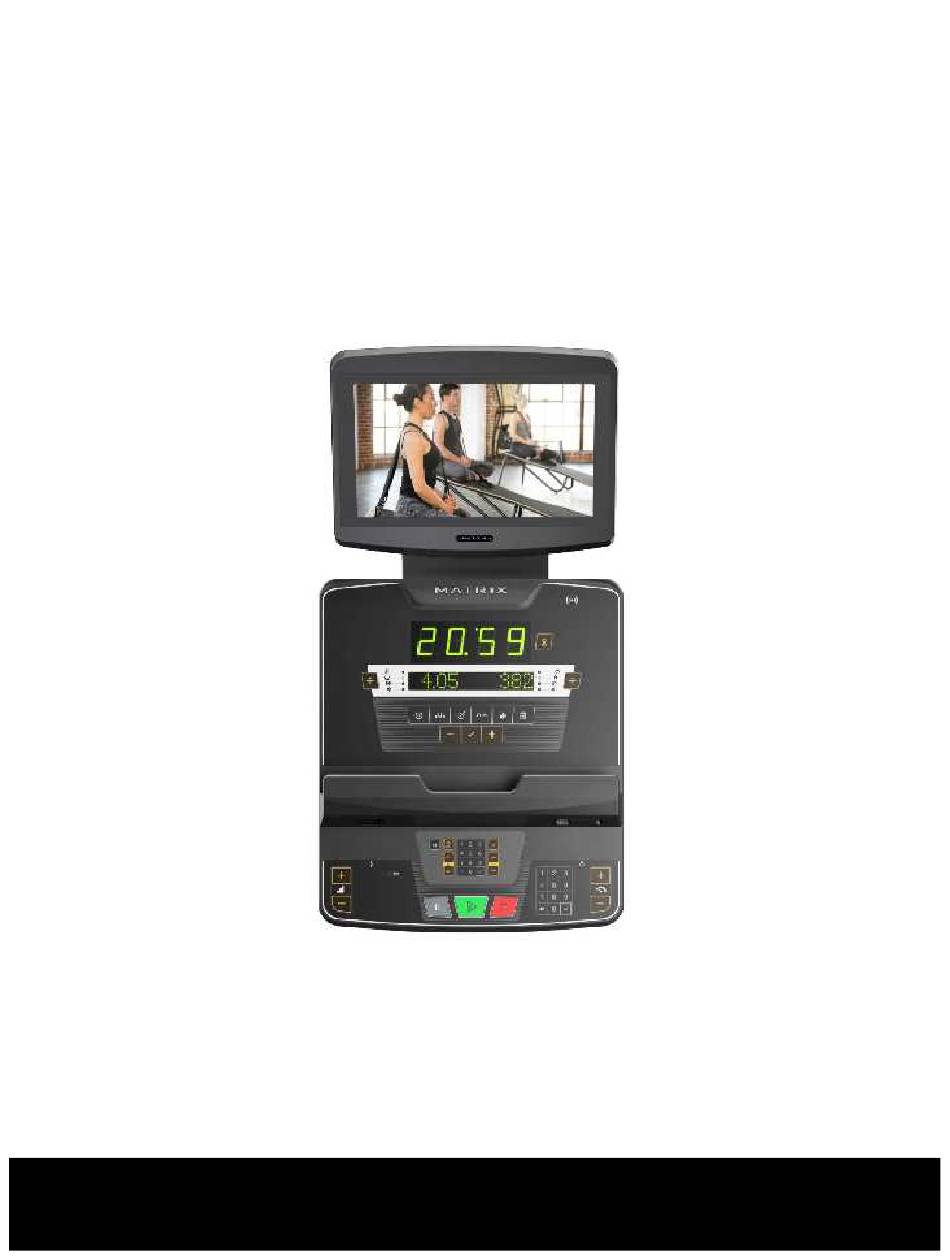

- Page 1 MATRIX (LED) CONSOLE with Matrix TV & CAB FOR CABLE/SATELLITE BOX CONTROL 5/2022 BVE Technical Support Tel: 888.330.4283 x 3 Support@Broadcastvision.com...
- Page 2 TV on. Both LED’s should turn green. Use the entertainment keypad to enter the Channel Scan code found in the chart below: Menu/Task Code Channel Scan 0001 Main Menu 0002 Custom Features 0003 BVE Technical Support Tel: 888.330.4283 x 3 Support@Broadcastvision.com...
- Page 3 How to Install the CAB 1. Remove the back shroud from the Matrix PLED console. 1. Remove the back shroud from the Matrix PLED console. 2. Plug the Green banded side of the CAB (Cable A) into the bottom port of console as shown below.
- Page 4 3. Connect (CABLE B) from the other end of the CAB to the RJ45 port on the Matrix TV. This port is to the right of the Coax connection and you may need to remove a plastic cover to gain access.
- Page 5 If the answer is yes, the STB is in RF mode. Check online for instructions to change the STB remote control mode from RF to IR. for instructions to change the STB remote control mode from RF to IR. BVE Technical Support Tel: 888.330.4283 x 3 Support@Broadcastvision.com...
- Page 6 Broadcastvision support at to determine the dip switch settings for your cable, satellite, or IPTV provider. Note: When the CAB is shipped pre-programmed, the dipswitch setting will be in the OFF position BVE Technical Support Tel: 888.330.4283 x 3 Support@Broadcastvision.com...
