Evidence Cross 4 PoE Lite User Manual

8 ports unmanaged 10/100 fast ethernet switch with 4 poe ports
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User`s Manual
Cross 4/PoE Lite

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cross 4 PoE Lite and is the answer not in the manual?

Questions and answers

Related Manuals for Evidence Cross 4 PoE Lite

Summary of Contents for Evidence Cross 4 PoE Lite

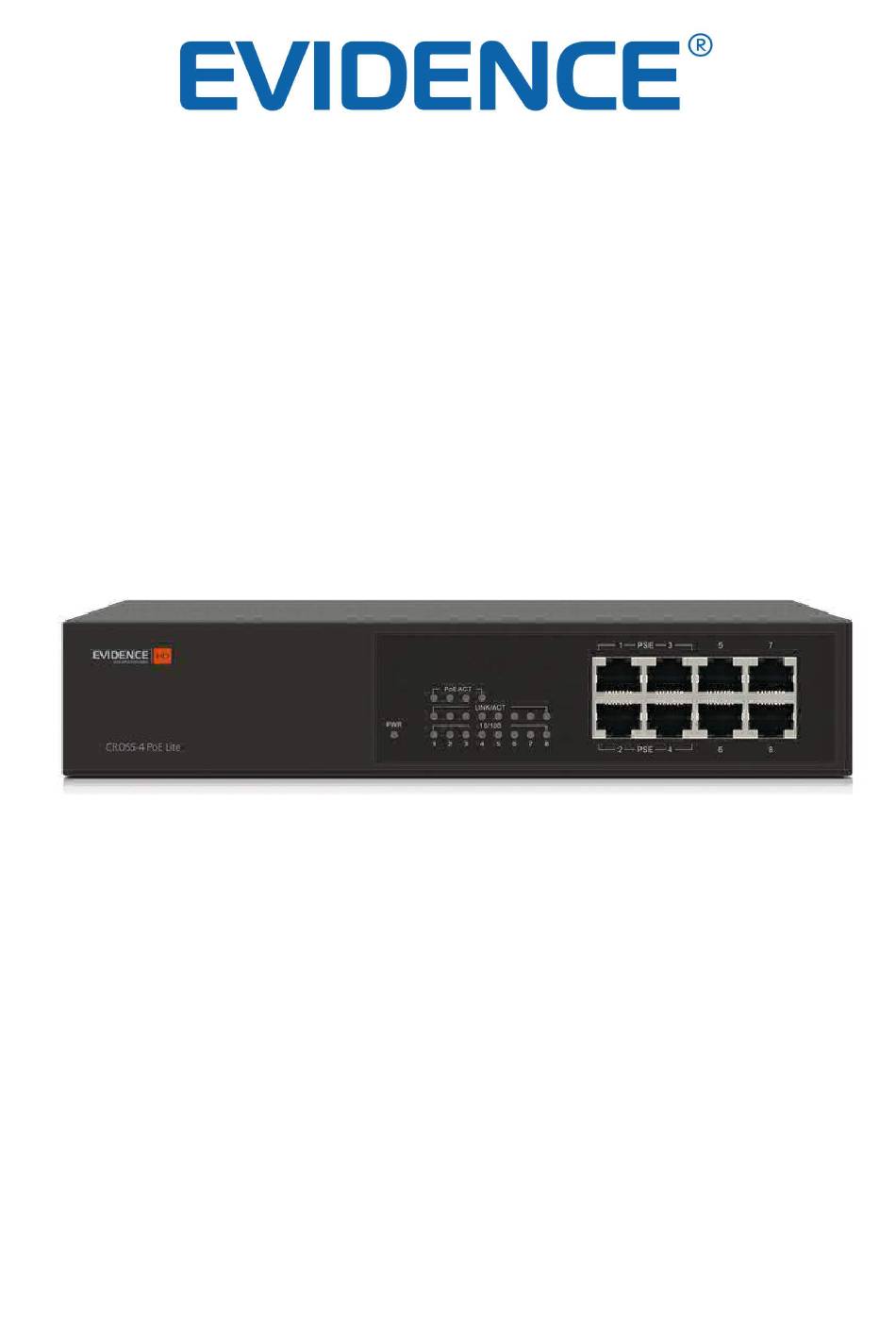

  • Page 1 User`s Manual Cross 4/PoE Lite...
  • Page 2 Cross 4/PoE Lite User's Manual 8 Ports Unmanaged 10/100 Fast Ethernet Switch With 4 PoE Ports Release 1.0 © 2009, Manufature Corporation. All rights reserved. All brand and product names are trademarks or registered trademarks of their respective companies.
  • Page 3 The information in this document is subject to change without notice. Unless the explicit written permission of Manufature Corporation, this document in whole or in part shall not be replicated or modified or amended or transmitted, in any from, or by any means manual, electric, electronic, electromagnetic, mechanical, optical or otherwise for any purpose.
  • Page 4 DISCLAIMER. EXCEPT AS PROVIDED ABOVE, THE SOFTWARE IS PROVIDED “AS IS ” AND MANUFATURE AND ITS LICENSORS MAKE NO WARRANTIES, EXPRESS OR IMPLIED, WITH REPSECT TO THE SOFTWARE AND DOCUMENTAITON. MANUFATURE AND ITS LICENSORS DISCLAIM ALL OTHER WARRANTIES, INCLUSIVE OF WITHOUT LIMITATION, IMPLIED WARRANTIES OR MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.

  • Page 5: Table Of Contents

    Table of Contents Caution ..........................vi Electronic Emission Notices.....................vi 1. Introduction......................2 1-1. Overview of Cross 4/PoE Lite ...................2 1-2. Checklist ........................2 1-3. Features........................3 1-4. View of ........................3 1-4-1. User Interfaces on the Front Panel..................4 2. Installation........................5 2-1. Starting Cross 4/PoE Lite Up..................5 2-1-1.
  • Page 6 Revision History Release Date Revision 2009/08/27...

  • Page 7: Caution

    Caution Circuit devices are sensitive to static electricity, which can damage their delicate electronics. Dry weather conditions or walking across a carpeted floor may cause you to acquire a static electrical charge. To protect your device, always:  Touch the metal chassis of your device to ground the static electrical charge before you pick up the circuit device.
  • Page 8 About this user’s manual In this user’s manual, it will not only tell you how to install and connect your network system but show you all the functions and specifications. Overview of this user’s manual  Chapter 1 “Introduction”  Chapter 2 “Installation”...

  • Page 9: Introduction

    1. Introduction 1-1. Overview of Cross 4/PoE Lite The Fast switch, an 8 port desktop Fast switch, meets the demand of bandwidth. This desktop switch seamlessly integrates with the rest of the network through its auto-negotiating and non-blocking design. To break through the bottlenecks at the core of network, the switch provides up to 1.6Gbps aggregate bandwidth and seamless migration and the most cost effective method for bringing high-speed networking to the desktop.

  • Page 10: Features

    1-3. Features Key Features in the Device • — Conforms to IEEE 802.3 10Base-T,IEEE 802.3u 100Base-TX and IEEE 802.3x flow control standards — Supports 10/100Mbps auto-detect half/full duplex — Supports TP interface MDI/MDI-X auto crossover — Supports 802.3x flow control pause packet for full duplex —...

  • Page 11: User Interfaces On The Front Panel

    1-4-1. User Interfaces on the Front Panel Fig. 1-2 LED of Cross 4/PoE Lite  LED Description There are diagnostic LEDs located on the Front panel of Cross 4/PoE Lite. These LED indicators provide administrators with real-time system status. The following table gives descriptions of the function of each LED indicator.

  • Page 12: Installation

    2. Installation 2-1. Starting Cross 4/PoE Lite Up This section will give users a quick start: Take your Cross 4/PoE Lite out of the package box. Power on the Cross 4/PoE Lite. Refer to the Wiring the Power Inputs section for wiring instructions. After the Cross 4/PoE Lite is powered on, the power LED on the Cross 4/PoE Lite will light up.

  • Page 13: Cabling Requirements

    Note: It can work as a pure switch that connects to non-PoE devices. Install the media cable for network connection. Port 5 to 8 are pure TP ports for non-PoE devices. Fig. 2 PSE to PD or PoE Splitter 2-1-2. Cabling Requirements To ensure a successful installation and keep the network performance good, please take a care on the cabling requirement.

  • Page 14: Specifications

    3. Specifications Standards ： IEEE802.3/802.3u/802.3x , IEEE802.3af Power over Ethernet Transmission ： 10/100Mbps supports full or half duplex Data Transfer Rate： PPS (packets per second) Speed Forwarding Rate 100Mbps 148,800 PPS 10Mbps 14,880 PPS MAC Address and Self-learning ： up to 1K Buffer Memory：...

  • Page 15: Technical Specifications

    Appendix A Technical Specifications Feature Detailed Description IEEE802.3/802.3u/802.3x Standards IEEE802.3af Power over Ethernet 10/100Mbps supports full or half duplex Transmission 100Mbps/10Mbps 148800PPS/14880PPS Data Transfer Rate MAC Address and Up to 1K Self-learning 96Kbyte on chip frame buffer Buffer Memory IEEE802.3x compliant for full-duplex Flow Control Backpressure flow control for half-duplex Store &...
