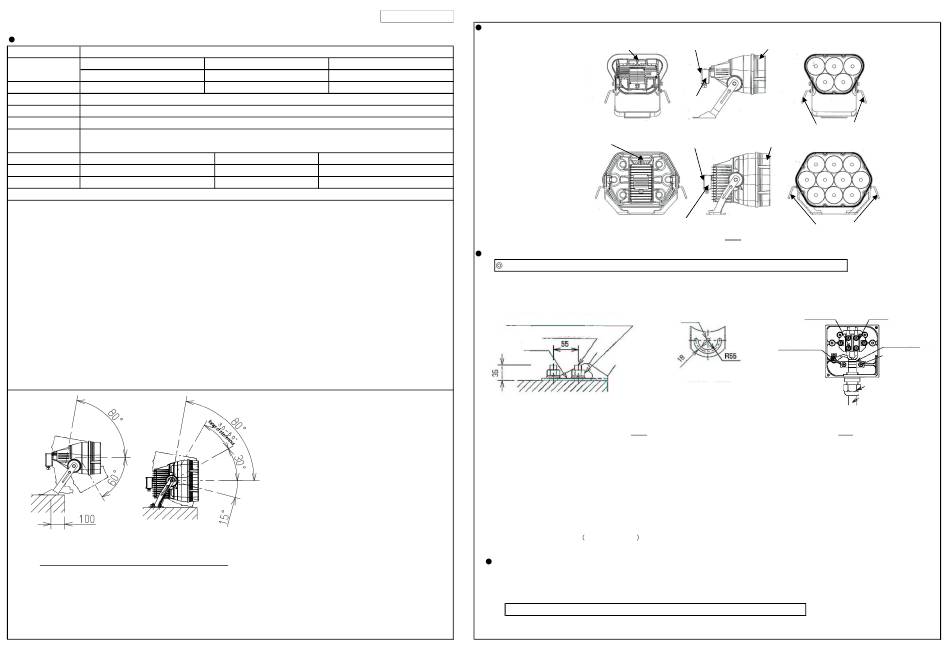

Seiwa LCTX0004V2 Installation Manual

Installation manual

Product Outline

Item
LCTX0005V2
Luminaire model
name
LCTX0002V2
Light distribution Narrow angle
Weight LCTX0005V2 to 0007V2：16kg LCTX0002V2 to 0004V2：28kg
Color temperature
Finish color
3‐wire cable with a final outside diameter of 10 to 14 mm
Suitable wire
equivalent to or more than 600V 2PNCT (type 2 EP rubber‐insulated chloroprene cabtyre cable)
Application Outdoor general application
Watertightness Rain proof type
‐5～35℃
Ambient temperature
● Precautions in use
‐
Before installing the floodlight, confirm the range of motion of the floodlight as shown in Fig. 1(a) or 1(b). Paying attention to the
positional relation between the structure and the arm, take care that the floodlight does not contact the structure. An accidental
contact might cause a fire.
‐ The angle adjusting grip (Fig. 2) is intended to be used for illuminating angle adjustment after installation and should not be used to
carry the fitting. If it is used to carry the fitting, the fitting might fall and cause an injury.
‐
Don't look straight at the LED. Your eyes might be impaired.
‐
The color and brightness of LEDs fluctuate more largely than ordinary light sources such as candescent lamps and fluorescent lamps.
The color of light may vary with individual LEDs. Note that when the illumination distance is short, there may be uneven brightness or
color unevenness depending on the illuminated surface.
‐
If the floodlight is used at a higher ambient temperature than 35°C or the LED is lit in a place exposed to direct sunlight, the internal
thermal fuse may be activated to turn off the LED. Though this is not a failure but a function to protect the electronic components, don'
t use the floodlight in such an environment. A temperature rise might cause a fire or electrical failure or shorten the LED life.
‐
Be careful not to scratch the front cover of the floodlight. Scratching might cause damage, deterioration in watertightness or decline in
illuminance. If a crack is found in the front cover, let us know since it must be replaced immediately.
‐
Don't use the floodlight in a place where it may be water‐covered. The use in such a place might cause an electric leak, electric shock or
malfunction.
(a)LCTX0005V2～0007V2 (b)LCTX0002V2～0004V2
Fig. 1 Interference between the floodlight and the structure
‐
The product is a stationary floodlight. If it is not fixed for use, a fire, electric shock, burn or fall might result.
‐ If a floodlight pedestal is used, note that this floodlight is heavier than conventional (HID) floodlights and a conventional pedestal may
not be rigid enough and cause an accident such as a fall. If you are going to use a pedestal, consult us.
11E0000909A11
LED Floodlight
LCTX0006V2 LCTX0007V2
LCTX0003V2 LCTX0004V2
Medium angle Wide angle
5000[K]
Gray metallic
Rated input voltage 100‐242V
Voltage fluctuation range Rated voltage ±6%
Frequency 50 / 60Hz
*
When the floodlight is installed on the ground and its
upward angle range is from 30 to 60 degrees, it cannot be
fixed due to the presence of the mounting bolts (M16). If the
mounting bolts interfere with rotation of the floodlight for
angle adjustment, adjust the illuminating angle before fixing
the floodlight.

Constituent Parts

LCTX0005V2 to 0007V2
Wire connection box cover
Angle adjusting grip
LCTX0002V2 to 0004V2
Angle adjusting grip
Wire connection box cover
Wire connection box

Installation of the Floodlight

Carry out installation work in consideration of interference between the floodlight and structure.
Insert the two M16 mounting bolts into the hole of the seat placed on the mounting surface of the building with the specified interval between
1.
them (55 mm) as shown in Fig. 3 and firmly tighten each mounting bolt together with a plain washer, spring washer and M16 hexagonal nut at
a recommended torque (94‐108 N･m). Inadequate tightening might cause the floodlight to fall and result in an injury.
M16 hexagonal nut , Spring washer , Plain washer
M16 mounting bolt
Mount
Floodlight installation dimensions
The LCTX00022V2 to LCTX0004V2 have
NB:
different seat shapes from the above but
their installation dimensions are the same as
those of the LCTX0005V2 to LCTX0007V2.
Fig. 3
2. Loosen the two screws on the wire connection box cover and remove the cover.
Pass a 3‐wire cable with a final outside diameter of 10 to 14 mm (equivalent to or more than 600V 2PNCT (type 2 EP rubber‐insulated
3.
chloroprene cabtyre cable) through the fastening nut, connect it to the terminal block as shown in Fig. 4 and tighten the terminal block screw
firmly at a recommended torque (1.3‐1.5 N･m). Fix the 3‐wire cable with the cable retainer securely and tighten the cable retainer screw at a
recommended torque (1.3‐1.5N･m) securely.
4. Tighten the two screws on the wire connection box cover evenly at a recommended torque (1.3‐1.5N ･ m) securely to prevent rainwater
infiltration. Also tighten the fastening nut securely to prevent rainwater infiltration.
5. Carry out Class D grounding 100Ω or below for the floodlight using the grounding terminal in the wire connection box.
(recommended grounding terminal screw tightening torque: 1.3‐1.5N･m).

Adjustment of the illuminating angle

To adjust the illuminating angle, loosen the two handles with the floodlight supported by the angle adjusting grip securely (Fig. 2) and gently
1.
adjust the illuminating angle. If the floodlight is not supported securely, it might suddenly turn, resulting in a damage or injury.
2. After adjustment of the illuminating angle, tighten the handles firmly (recommended tightening torque: 22‐25 N ･m).
Inadequate tightening might cause the floodlight to fall, resulting in an accident.
Front cover
Wire connection
box
Handle
Front cover
Handle
Fig. 2
Terminal block screw
Hole (18)
Grounding
terminal screw
Fig.4
Terminal block
Cable retainer
Cable retainer
screw
Fastening nut
3‐wire cable
Outside diameter
LLPM00312‐2
