INSTALLATION MANUAL

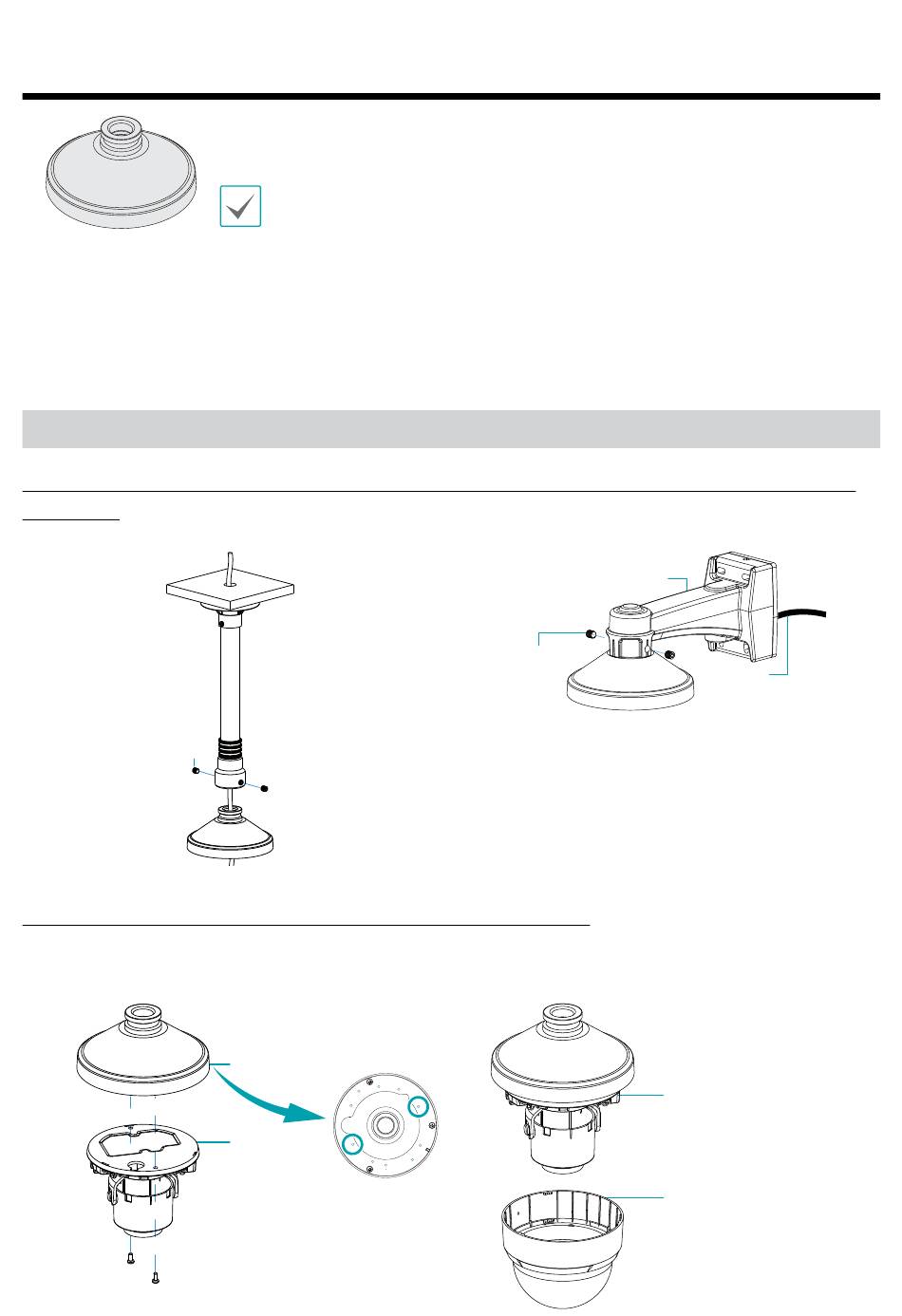

Mounting

Mount the bracket to the ceiling pipe CDMPMD13 or wall mounting bracket CDMWMD13
as follows:
Screw Set M8X8, 2EA
Connect your camera CDI55360IW to the bracket as follows:
3
Screw the bottom cover onto bracket and then screw the camera dome cover onto the bottom
cover.
This manual is intended for users of the CDMWMA mounting bracket. It
includes instructions for mounting CDMPMD13 or CDMWMD13.
• This bracket is intended to be used with a specific model of camera.
Do not use it with other models of cameras except for those
approved by the dealer or distributor.
• This installation should be performed by a qualified service
personnel in conformance to all local codes.
• You may need to reinforce the ceiling. If the ceiling is not strong
enough to support the camera, the camera may fall.
• Do not use this product for other purposes.
Bracket
Bottom
cover
Wall Mounting Bracket
Screw Set M8X8, 2EA
1
Insert cables from external devices, network and
power adapter into bracket.
2
Assemble bracket into the ceiling pipe
or wall mounting bracket and fix it by using the
screws. The ceiling pipe and wall mounting
bracket are sold separately.
Cable
Bottom
Cover
Camera
Dome
Cover
