Slimline, whole house, mechanical extract ventilation - MEV

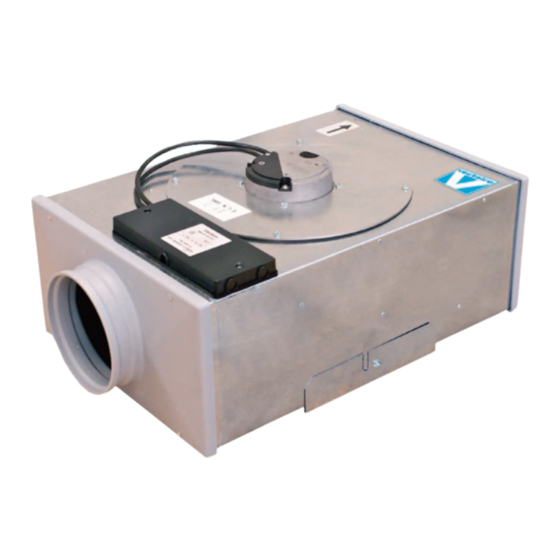

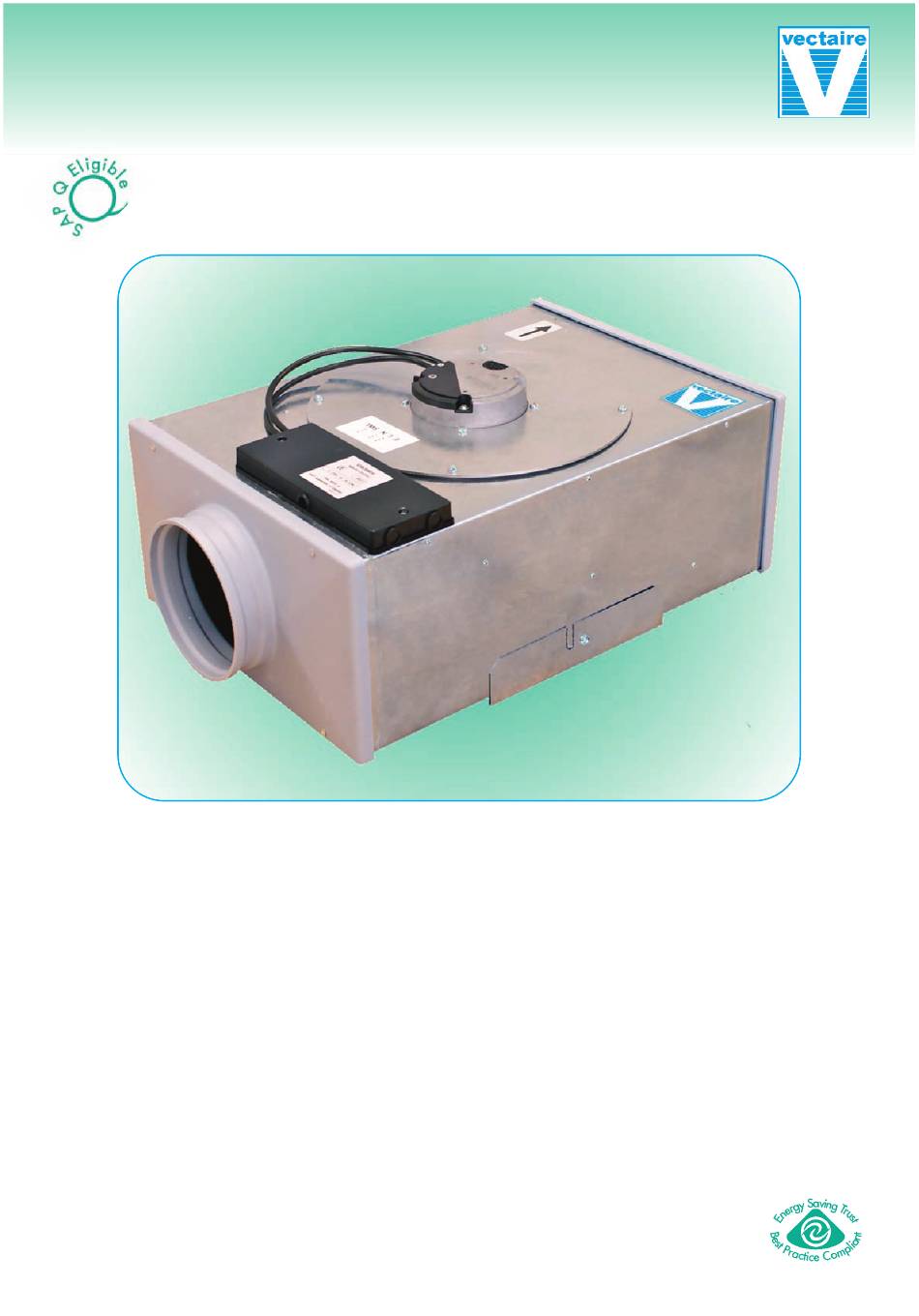

Microbox 125/2DC
This MEV - MBOX125/2DC - is an
efficient, low energy solution to
controlling condensation and pollution
by providing low level continuous
ventilation in a kitchen and up to four
wet rooms, whilst allowing the user to
boost to maximum performance when
required.
Tel: +44(0)1494 522333
Fax: +44(0)1494 522337
* Also available with 204mm x 60mm spigot - MBOX125/2DC204
The MBOX125/2DC is generally
installed in the loft or roof void and
requires only one discharge grille. The
noise level and running costs are
extremely low and it is compliant with
Parts L and F of the Building
Regulations
.
