Philips Consumer Lifestyle
Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
- Voltage
- Frequency
- Power consumption
- Standby power consumption : < 1W
- Contents reservoir
- Colour setting
- SAP coding
Published by Philips Consumer Lifestyle
12/10
: 220 - 240 V
: 50 - 60 Hz
: 1450 W
: 750 cc
: Rich Silver
: HD7812/53
Printed in the Netherlands

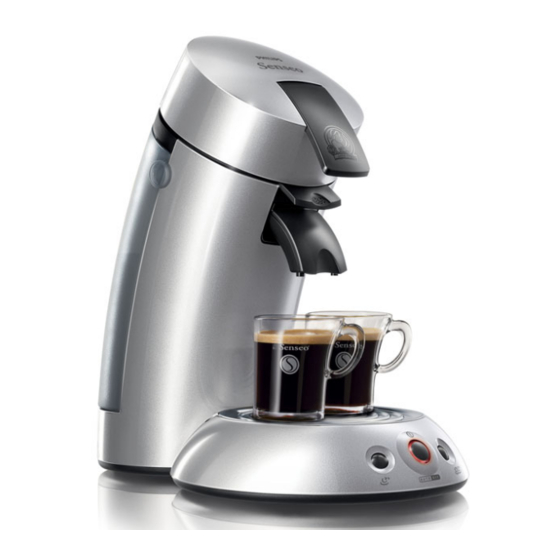

Coffee Maker Senseo
Water level
Sensor
L
Pump M
CONTROL
PCB
N
Push buttons
© Copyright reserved
HD7812/53
Temp.
Sensor
Boiler
TCO
Fuse
Fuse
Subject to modification
Advertisement
Table of Contents
Related Manuals for Philips Senseo HD7812/53
Summary of Contents for Philips Senseo HD7812/53
- Page 1 - Standby power consumption : < 1W - Contents reservoir : 750 cc - Colour setting : Rich Silver - SAP coding : HD7812/53 Push buttons Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification 12/10...
- Page 2 HD7812/53 DISASSEMBLY- AND RE-ASSEMBLY ADVISE Disassembly information To remove the brew chamber lid cover handle as follows: Removing Brew chamber head handle as follows: - Place the screwdriver on the - Disassemble back cover! positions (see picture 1) and - Place the appliance such a way that you are looking at the lift the cover over the snap boiler.
- Page 3 HD7812/53 REPAIR INSTRUCTION Descaling Descaling is an important element in Senseo maintenance. 7. Unplug the appliance from the mains. It should be done at least once every 3 months, up to 6 times 8. Press the 1- and 2 cup button simultaneously and plug a Year! the mains on.
- Page 4 HD7812/53 REPAIR INSTRUCTION Restoring the Boiler_empty_fl ag to production default: Some times it is needed that the boiler of the Senseo have to be emptied. This for instance in wintertime were the possibility exists that the boiler becomes frozen during transport e.g. For those occasions it is handy to restore the Boiler_empty_ fl...
- Page 5 HD7812/53 EXPLODED VIEW...
- Page 6 HD7812/53 EXPLODED VIEW...
