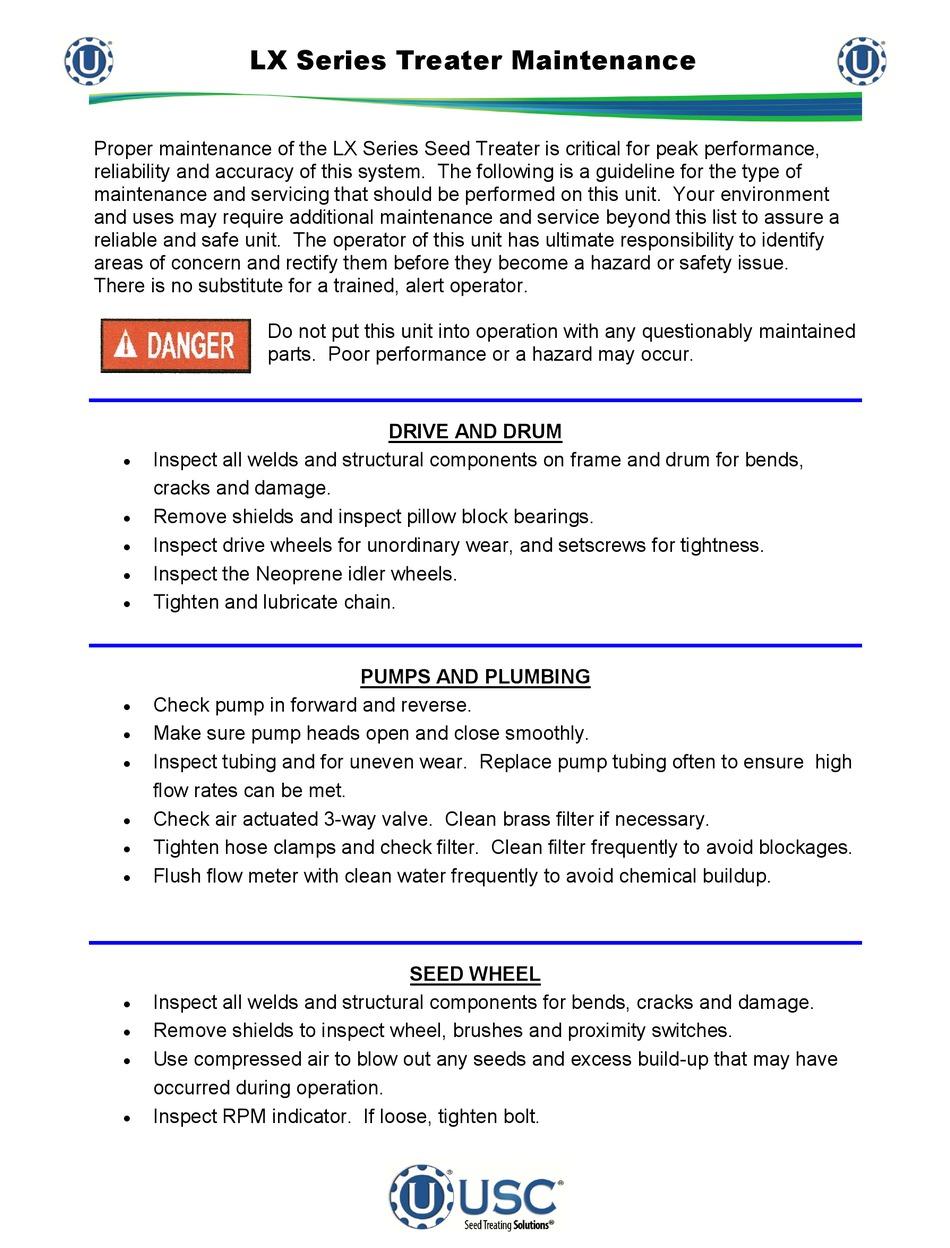

LX Series Treater Maintenance
Proper maintenance of the LX Series Seed Treater is critical for peak performance,
reliability and accuracy of this system. The following is a guideline for the type of
maintenance and servicing that should be performed on this unit. Your environment
and uses may require additional maintenance and service beyond this list to assure a
reliable and safe unit. The operator of this unit has ultimate responsibility to identify
areas of concern and rectify them before they become a hazard or safety issue.
There is no substitute for a trained, alert operator.
Do not put this unit into operation with any questionably maintained
parts. Poor performance or a hazard may occur.
Inspect all welds and structural components on frame and drum for bends,

cracks and damage.
Remove shields and inspect pillow block bearings.

Inspect drive wheels for unordinary wear, and setscrews for tightness.

Inspect the Neoprene idler wheels.

Tighten and lubricate chain.

Check pump in forward and reverse.

Make sure pump heads open and close smoothly.

Inspect tubing and for uneven wear. Replace pump tubing often to ensure high

flow rates can be met.
Check air actuated 3-way valve. Clean brass filter if necessary.

Tighten hose clamps and check filter. Clean filter frequently to avoid blockages.

Flush flow meter with clean water frequently to avoid chemical buildup.

Inspect all welds and structural components for bends, cracks and damage.

Remove shields to inspect wheel, brushes and proximity switches.

Use compressed air to blow out any seeds and excess build-up that may have

occurred during operation.
Inspect RPM indicator. If loose, tighten bolt.


DRIVE AND DRUM

PUMPS AND PLUMBING

SEED WHEEL
