BNT NAC-HD-211P Quick Start Manual

Specifications

Model NAC-HD-211P
Image Sensor 1/3" SONY 1.3MP CMOS Sensor
Resolution 960P
Signal System PAL / NTSC
Minimum 0.001Lux/F1.2
Illumination
S/N Ratio More than 48 dB
Synchronous Internal
System
IR Distance
IR Power On
Video Output CVBS / CVI / TVI / AHD
Power/Current DC12V(+/-10%)/300mA
Lens 3.7mm Taper Pinhole Lens
Weather Proof
Dimension (mm) 25(W) x 10(H) x 25(D)
Weight (g) 150
Operating -40~+50℃ RH95% MAX
Conditions
Accessories
Name
Camera
User Guide
/
/
/
Notes:
Number
Do not attempt to disassemble the camera. If the camera
1
can not work, please contact local franchiser or our company.
1

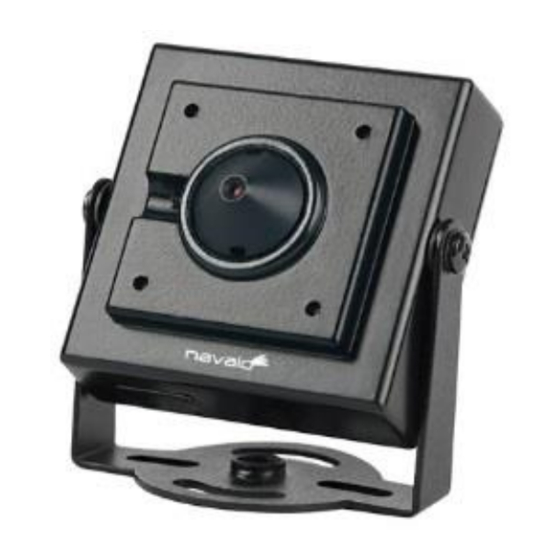

NAC-HD-211P
Miniature Camera
Thank you for using our product.
Before providing power for the camera, please read
this manual carefully before use.
We adopt the latest technical of sensor and driver.
It owns the characters of high definition and stability,
strong anti-j amming, rich and real color. F ixing an d
using this mod el are co nvenient too. It is ver y good
for you to apply to your CCTV system.
