Alzatex R2012 Wiring Diagram

R2012 JUGS Pro-Sports Radar Gun
Interface Cable Wiring Diagram
Hard Wired connection to connect the R2000 radar gun
Alzatex, Inc.
6400 SW 213th Ave
to the R2020 display.
Aloha, OR 97007
www.alzatex.com
Cable replacement for
terryl@alzatex.com
Stalker 155-2289-00 Cable
503 642-9693
Designed by Terry Lang

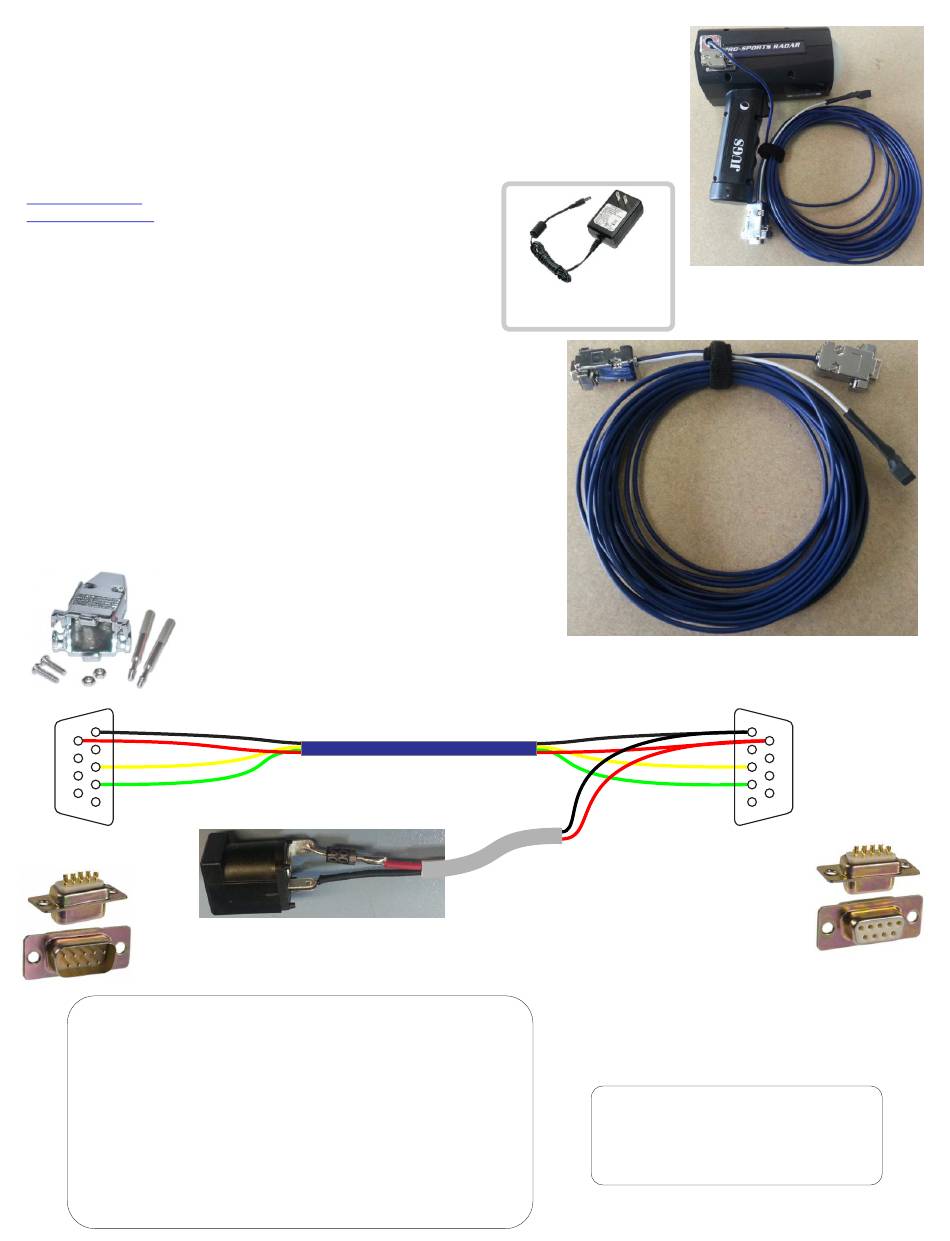

Cable Specifications:
Length: 30 feet
Type: 4 cond, 22GA, stranded, CM/CL2
Color: Blue
Connectors:
P1 - DB-9 male connector with metalized plastic housing with thumb screws.
Norcomp 171-009-102-001
P2 - DB-9 female connector with metalized plastic housing with thumb screws.
Norcomp 171-009-202-001
Metalized ABS plastic Housing with thumb screws
Norcomp 993-009-020-121
5
Black
9
Red
Yellow or White
Green
6
1
Kit
R2012-KIT Radar Gun Cable Kit
Label:
JUGS Pro-Sports Radar Gun Interface Cable to connect
the R2000 radar gun to the R2020 display.
Kit includes:
1 - R2012 Cable
1 - Power Supply, 15VDC, 1.6A
DB9-MALE
1 -
2 - Green (RD)
3 - Yellow (TD)
4 -
5 - Black (Gnd)
9 - Red (+12V)
Connect 1N4004 diode in series with the center pin
of the power connector.
- Cover in heat shrink when done.
Power Supply
15VDC, 1.5A
30 Feet
10 Inch
R2000 radar gun shown
with the R2012 Cable.
5
Black
Red
Yellow or White
Green
1
DB-9-FEMALE
1 - N/C
1 -
2 - RD
2 - Green (RD)
3 - TD
3 - Yellow (TD)
4 - DSR
4 -
5 - SG
5 - Black (Gnd)
6 - N/C
6 -
7 - RTS
7 -
8 - CTS
8 -
9 - +12V
9 - Red (+12V)
Cable Label:
R2012 Radar Gun Cable
JUGS Pro-Sports Radar Gun Interface
Cable to connect the R2000 radar gun
to the R2020 display.
JUGS-R2012-KIT
Alzatex Part Number
