Summary of Contents for AG RIAREX BT-FG01

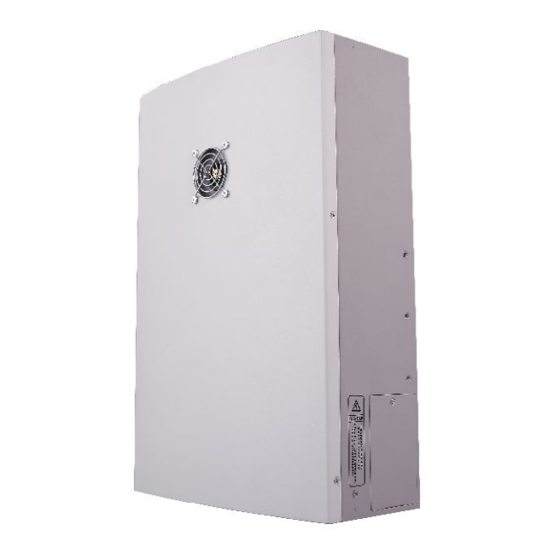

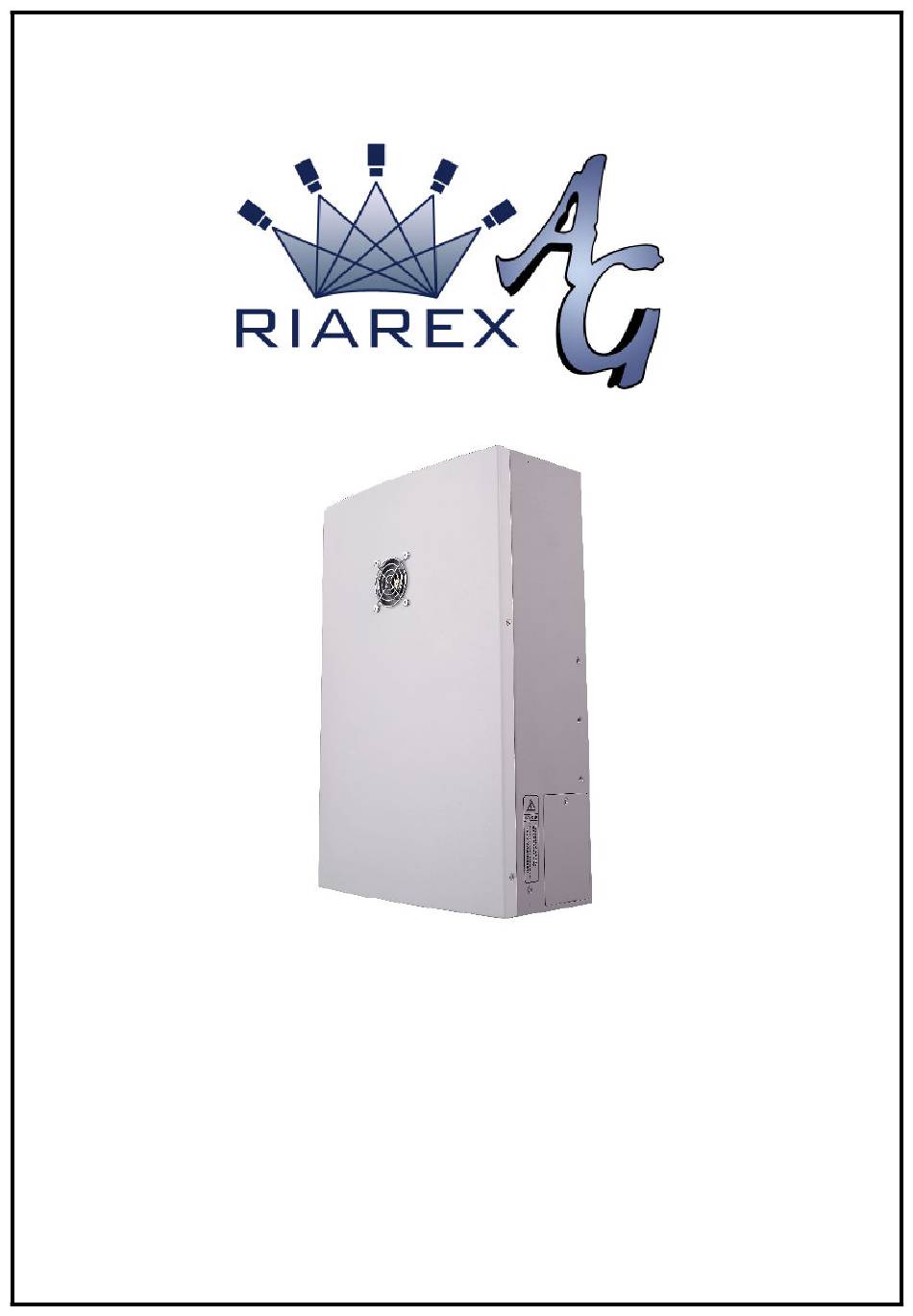

- Page 1 BT-FG01 Security Smoke Generator User Manual...
- Page 2 Introduction Thank you for choosing BT-FG01 security smoke system. It is the most effective and reliable security system to protect your property and premises. Please read this instruction to ensure you have the maximum performance of your security smoke system. If you have any question or uncertainty, please contact with your dealer.
-
Page 3: Changing Nozzles
Changing Nozzles There are interchangeable nozzles available. When a different or a new nozzle is needed, please follow below steps to change nozzles: Step 1. Remove the original nozzle and clean the residue inside. Step 2. Put on the new nozzle. (Make sure the new nozzle is with Teflon tape on it. Without Teflon tape on nozzle might cause fog leak during operation) Step 3. -
Page 4: Input And Output Connections
Input & Output Connections (Terminals on PCB The Connections (Terminals) layout of PCB is as followings diagram. We can use the 3 sets of Input Connections on the smoke generator to make and control fog output. Tamper Tamper +12 V (100 mA) Hold OFF Hold OFF Verification NO... - Page 5 Additional Hold OFF – any form of N/C relay or micro switch can be connected to the ‘Hold-off’ connections. Where fitted in addition to the Hold-off PIR both sets of relays must be ‘open’ to produce ‘smoke’. There are 4 sets of Output Connections on smoke generator. They are “Status Output”, “Liquid Status”, “Battery Output”, “Tamper Status”...
- Page 6 Dip Switches on PCB DIP Switch Dip Switch Function ※ Switch to “On”, machine will produce smoke output, when “Alarm Set”, “Trigger”, and “Hold-off” these 3 sets input connections are all “open circuit” at the same time. ※ Switch to “Off”, machine will produce smoke output, when “Alarm Set”, “Trigger”, and “Hold-off”...
- Page 7 Testing Smoke Generator Full alarm test A full alarm test should be conducted to check that all inputs, outputs and wiring connections to the smoke generator are correct. If a PIR or other detector is fitted, the smoke generator will run according to the smoke time setting, once the ‘Alarm Set’, "‘Trigger’...
-
Page 8: Machine Status
LED and Buzzer indications Machine status LED signal Buzzer signal It is overheating 1 short beep every 5 seconds 2 flashes every 2 seconds 1 long beep every 60 seconds Cover is open 1 flash every 2 seconds UPS power failure or UPS not connected 3 short beeps every 30 seconds 2 flashes every 5 seconds 2 short beeps every 30 seconds... - Page 10 C08SF0100-RIA...
