Summary of Contents for HL Display FreshGrid table

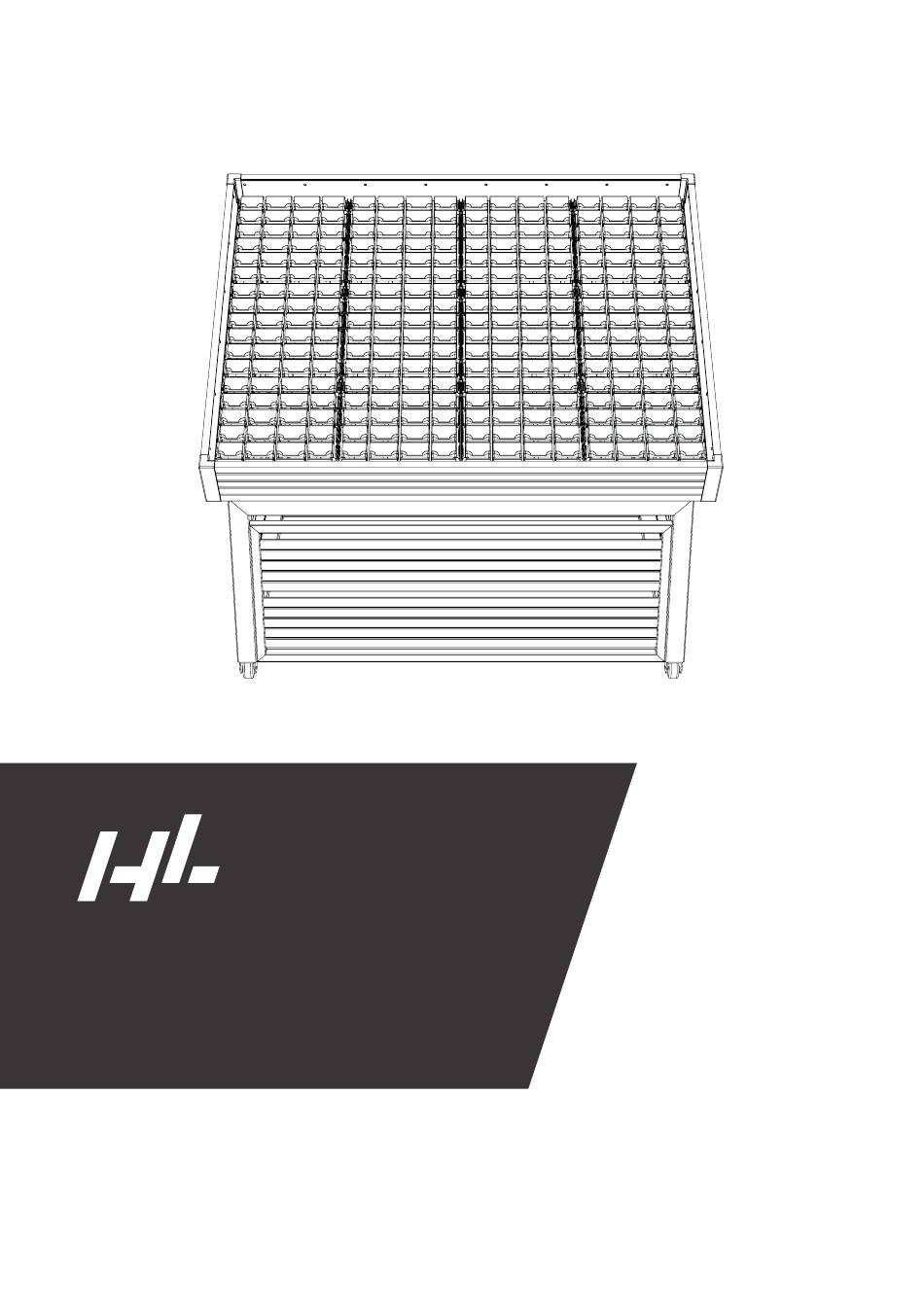

- Page 1 FreshGrid table Mounting instruction...
- Page 2 FreshGrid table – mounting of bottom frame Front frame Attach the side to the front frame using two bolts © HL Display 2(12)
- Page 3 FreshGrid table – mounting of bottom frame Attach the other side to the front frame using two bolts Attach the back frame to both sides using four bolts © HL Display 3(12)
- Page 4 FreshGrid table – mounting of bottom frame Attach the support bar to the bottom frame using two bolts Attach two lockable wheels at the front and two standard wheels at the back © HL Display 4(12)
- Page 5 FreshGrid table – mounting of bottom frame Slide the front panel into place on the guide rail Hang the front panel on the guide rail © HL Display 5(12)
- Page 6 FreshGrid table – attach side panels to table top Remove one row of tiles for easy access to attach the side panel Use self tapping screws to attach the mounting panel © HL Display 6(12)
- Page 7 FreshGrid table – attach side panels to table top Fit the cladding to the mounting panel Fix the side panel with six self tapping screws © HL Display 7(12)
- Page 8 FreshGrid table – attach side panels to table top Put the tiles back in place Fix each tile into position with four screws © HL Display 8(12)
- Page 9 FreshGrid table – attach side panels to table top Attach the corner covers Secure the corner covers in place with two screws © HL Display 9(12)
- Page 10 FreshGrid table – attach the table top to the bottom frame Slide the table top on to the bottom frame hinges Secure the table top in place on the hinges using bendable pins © HL Display 10(12)
- Page 11 FreshGrid table – attach the table top to the bottom frame Turn the table around Secure the back brace using two screws. This can be used with the support bar to change the angle of the table top. © HL Display...
- Page 12 The better shopping experience www.hl-display.com...
