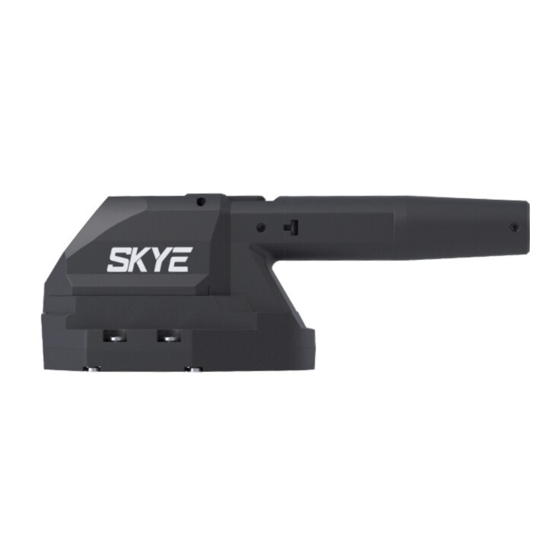

- Page 1 SKYE Airspeed Sensor User Manual Manual version Last revision date 2022-7-1 CUAV Tech Inc.,Ltd...
- Page 2 Please read the manual carefully before using it to make sure that you can use it correctly and safely. Y ou need to install and use this product in strict accordance with the instructions. CUAV is not liable for any loss due to improper use.This manual is only used as a user guide. The company reserves the right to modify and improve the product details and instructions.
- Page 3 SKYE manual Pinouts www.cuav.net 雷迅创新 2 / 9...

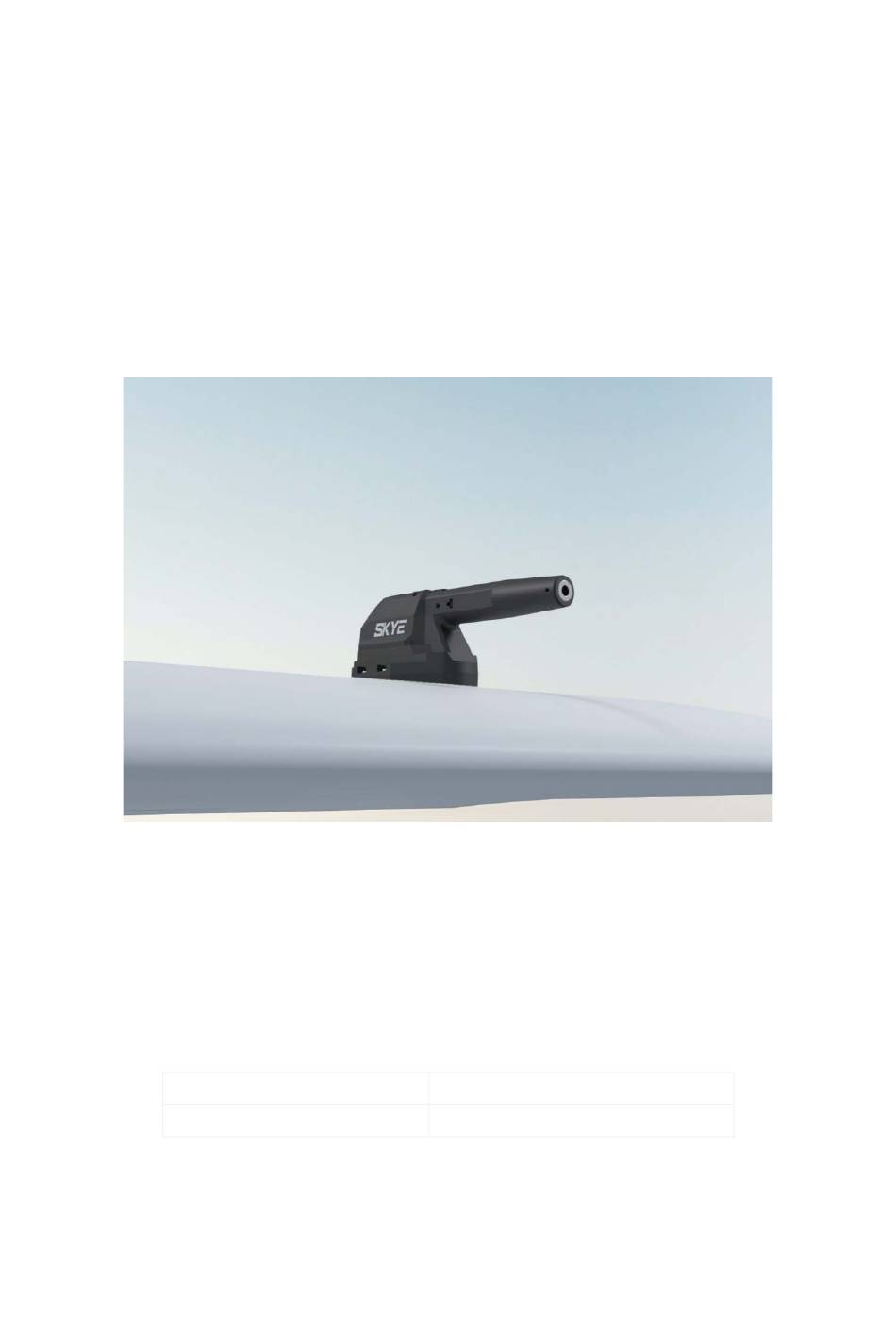

- Page 4 It is forbidden to install the airspeed near the propeller. Flight controller (ArduPilot firmware) parameter configuration Run Mission planner>Configuration>All parameter table; set the following parameters and save and restart. CAN_P1_DRIVER=1 CAN_P2_DRIVER=1 CAN_D1_PROTOCOL=1 CAN_D2_PROTOCOL=1 ARSPD_TYPE=8 ARSPD_USE=1 www.cuav.net 雷迅创新 3 / 9...
- Page 5 Airspeed offset calibration After the SKYE smart airspeed meter is started, the temperature compensation function is automatically activated. For better performance, please wait for the device to heat up after starting it (the time is about 5 www.cuav.net 雷迅创新 4 / 9...
- Page 6 Select "Preflight Calibration" in the first checkbox; click the "Do Action" button on the right Preflight Airspeed Check Please place the pitot tube in a windless environment to ensure that the airspeed value jumps within the range of 0~3m/s. www.cuav.net 雷迅创新 5 / 9...
- Page 7 SKYE manual Hold the pitot tube with your hand, blow air into the pitot tube, and check that the airspeed value can change according to the airflow speed, which means the inspection is completed. www.cuav.net 雷迅创新 6 / 9...
-
Page 8: Airspeed Calibration
// Airspeed offset value (do not need to be modified) ARSPD_PIN // Airspeed Pin ARSPD_PRIMARY // Primary airspeed sensor ARSPD_PSI_RANGE // Sensor PSI (pounds per square inch) range ARSPD_RATIO // Airspeed RATIO ARSPD_SKIP_CAL ARSPD_TUBE_ORDER // Rotate static pressure and dynamic pressure www.cuav.net 雷迅创新 7 / 9... -
Page 9: Maintenance
Airspeed range ±500km/h Accuracy ±0.69Pa Total error band ±2.5%FS Temperature measurement -20℃-125℃ Humidity measurement 0-100% Physical properties Pitot tube heating power Operating Voltage 8-34V Operating temperature -20℃±75℃ Size 82.5x30.4x28.2mm Weight Protection class IP44 (correct installation) www.cuav.net 雷迅创新 8 / 9... - Page 10 SKYE manual More information CUAV official website：www.cuav.net For more usage and machine assembly guides, please visit the Documentation Center：doc.cuav.net www.cuav.net 雷迅创新 9 / 9...
