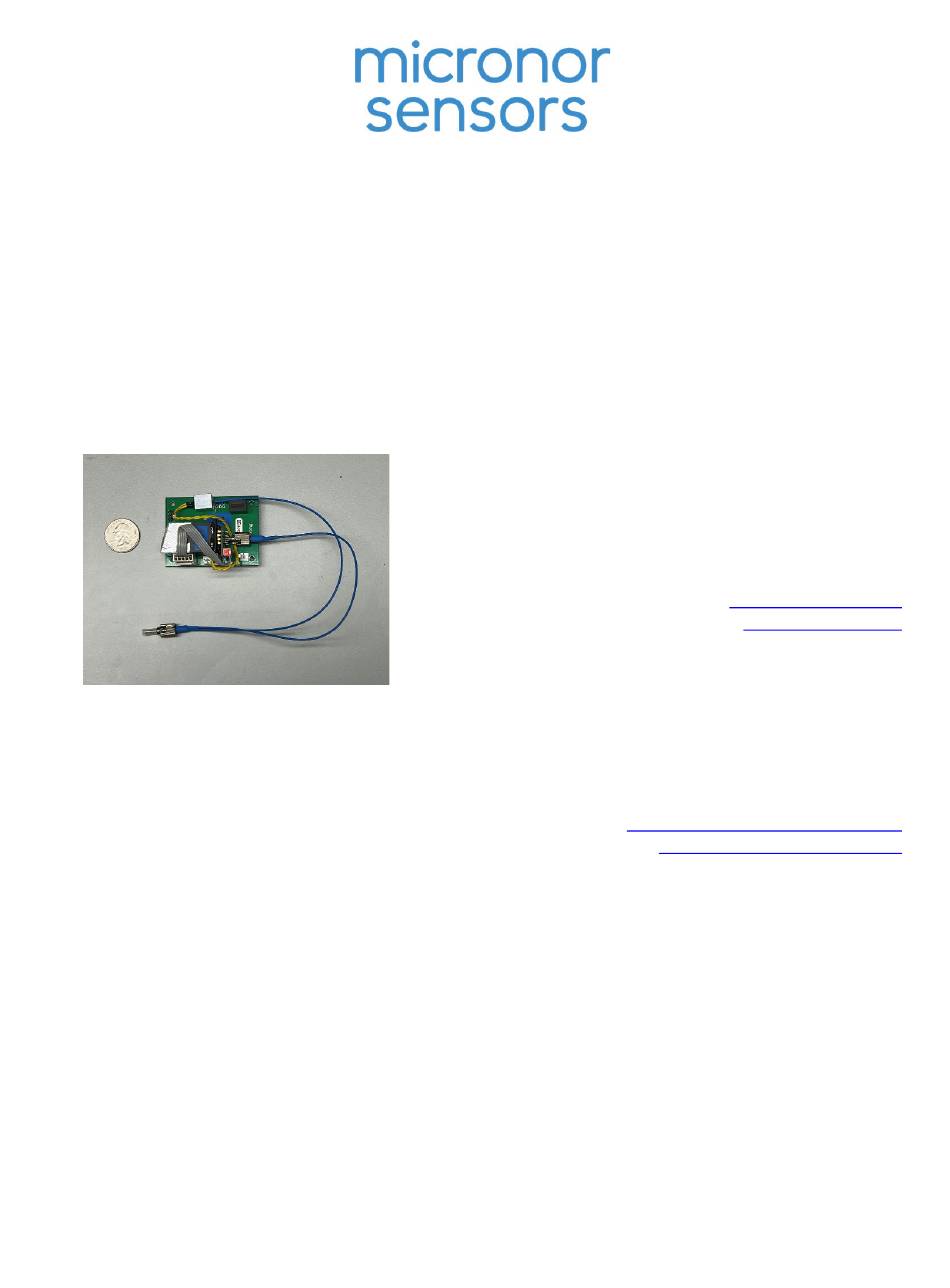

FOTEMP MINI
OEM Signal Conditioner
User Manual
Document: 98-OPTC-26
Revision A dated 08-Sept-2022
For Sales & Support in North America:
MICRONOR SENSORS INC.
2085 Sperry Ave, Suite A-1
Ventura, CA 93003 USA
+1-805-389-6600
sales@micronor.com
www.micronor.com
HQ and Worldwide Sales & Support:
WEIDMANN TECHNOLOGIES DEUTSCHLAND GMBH
Washingtonstrasse 16
D-01139, Dresden
Germany
+49-351-8430-5990
info_wdte@weidmann-group.com
www.weidmann-optocon.com
Notice of Proprietary Rights
The design concepts and engineering details embodied in this manual, are the property of MICRONOR SENSORS and WEIDMANN
TECHNOLOGIES, and to be maintained in strict confidence; no element or detail of this manual is to be spuriously used, nor
disclosed, without the express written permission of MICRONOR SENSORS. All rights are reserved. No part of this publication
may be reproduced, stored in a retrieval system, or transmitted in any form or any means, electronic, mechanical, photocopying,
recording, or otherwise, without prior written permission from MICRONOR SENSORS.
© COPYRIGHT 2022, MICRONOR SENSORS INC.
VENTURA, CA, USA
Advertisement
Table of Contents
Summary of Contents for Micronor FOTEMP MINI
- Page 1 Notice of Proprietary Rights The design concepts and engineering details embodied in this manual, are the property of MICRONOR SENSORS and WEIDMANN TECHNOLOGIES, and to be maintained in strict confidence; no element or detail of this manual is to be spuriously used, nor disclosed, without the express written permission of MICRONOR SENSORS.
-
Page 2: Revision History
MICRONOR SENSORS FOTEMP MINI OEM Signal Conditioner Revision History Revision Date Notes 08-Sept-2022 Initial Release Specifications are subject to change without notice Page 2 of 18... -
Page 3: Table Of Contents
List of Figures Figure 1. The SFF Weidmann FOTEMP MINI OEM Signal Conditioner ......4 Figure 2. How to identify Versions 1 and 2 of the FOTEMP MINI Signal Conditioner 8 Figure 3. Location of FOTEMP MINI Mounting Holes........... 8 Figure 4. -
Page 4: Product Description
FOTEMP MINI OEM Signal Conditioner The FOTEMP MINI is compatible with all TS series high precision GaAs fiber optic temperature probes. The sensors are entirely non-metallic and electrically passive, providing immunity to EMI, RFI, MR, microwaves and radiation is required. - Page 5 MICRONOR SENSORS FOTEMP MINI OEM Signal Conditioner Applications • For embedded instrument applications • EMI, RFI and microwave environments • High voltage environments • Harsh and hazardous environments • Nuclear environments • Aerospace applications • Process monitoring • Medical and imaging applications (MRI)
-
Page 6: Initial Preparation
FOTEMP MINI OEM Signal Conditioner Initial Preparation Unpacking and Inspection Since the FOTEMP MINI is an electronic printed circuit board, the user should use ESD protection when handling the module. THE FOTEMP MINI is shipped in an ESD protective pouch. -
Page 7: Warranty Information
AC line cords. This warranty is in lieu of all other warranties, expressed or implied, including any implied warranty of merchantability of fitness for a particular use. Neither WEIDMANN TECHNOLOGIES nor MICRONOR SENSORS shall not be liable for any indirect, special or consequent damages. -
Page 8: Installation And Operation
FOTEMP MINI OEM Signal Conditioner Installation and Operation Mounting the Unit As shown in Figure 1 below, there are two versions of the FOTEMP MINI OEM Controller which differ by which side the various internal and external pin connectors are mounted. Version “1”... -
Page 9: Electrical Connections To The Unit
MICRONOR SENSORS FOTEMP MINI OEM Signal Conditioner Electrical Connections to the Unit As shown in Figure 4, the FOTEMP MINI requires only Power Supply (7-12V DC) and Serial Interface connections. Electrical Connections viewed Electrical Connections Viewed from Component Side from Back (Trace) Side Figure 4. -
Page 10: Connecting The Ts Temperature Probe
FOTEMP MINI OEM Signal Conditioner Connecting the TS Temperature Probe The FOTEMP MINI optical interface is via an ST Pigtail. There are two fibers terminated internally in the ST plug. Use the supplied MR320A ST Bulkhead Adapter to connect TS sensor probe to the FOTEMP MINI signal conditioner. -
Page 11: Serial Communications
FOTEMP MINI OEM Signal Conditioner Serial Communications Introduction to UART Operation and Data Frame The FOTEMP MINI is designed for embedding into the user’s design via a simple 3-wire UART-based half-duplex serial interface. UART stands for universal asynchronous receiver / transmitter and defines a protocol, or set of rules, for exchanging serial data between two devices. -
Page 12: Fotemp Ascii Serial Protocol
The FOTEMP Signal Conditioners use a standard ASCII protocol across its Serial (TTL and RS232) and USB interfaces. The detailed command and response protocol are described in Micronor Sensors Application Note AN123. In summary, the FOTEMP MINI recognizes the following commands:... -
Page 13: Communicating Via Fotemp-Assistant
MICRONOR SENSORS FOTEMP MINI OEM Signal Conditioner Communicating via FOTEMP-Assistant In this example, a DTECH USB to TTL Serial Adapter (Prolific PL2303TA chipset) was used. https://www.amazon.com/gp/product/B08BLKBK1K/ref=ppx_yo_dt_b_search_asin_title?ie =UTF8&psc=1 Serial port connections: • White (TXD) to FTMINI RxD • Green (RXD) to FTMINI TxD •... -
Page 14: Direct Serial Communications Via Putty Terminal Emulator
Application Note AN123. As an example, enter “?04<cr> to read the current temperature. Example: See Figure 8 for example of ASCII command dialog with FOTEMP MINI using PuTTY terminal emulator. Converted responses are shown to the left. Page 14 of 18... -
Page 15: Sample Arduino Program
MICRONOR SENSORS FOTEMP MINI OEM Signal Conditioner Figure 8. Example of FOTEMP MINI Serial Communications Dialog using PuTTY Sample Arduino Program Figure 9. Sample Arduino Program Page 15 of 18... -
Page 16: Fotemp Mini Specifications
MICRONOR SENSORS FOTEMP MINI OEM Signal Conditioner FOTEMP MINI Specifications Temperature Measurement No. of Channels Measuring Range -200°C to +300°C, depending on Calibration option and TS sensor used Resolution 0.1°K Accuracy ± 0.2°K (1 sigma) when used with TS sensor used during Factory Calibration ±... -
Page 17: Fotemp Mini Theory Of Operation
MICRONOR SENSORS FOTEMP MINI OEM Signal Conditioner FOTEMP MINI Theory of Operation As shown in Figure 10, the FOTEMP MINI operates on the same theory of operation as the FOTEMP signal conditioners. Figure 10. FOTEMP MINI Theory of Operation As shown in Figure 11, GaAs-based fiber optic temperature probes and FOTEMP signal conditioners are deployed wherever conventional convention thermocouples cannot be used. -
Page 18: Fotemp Mini Reference Drawing
MICRONOR SENSORS FOTEMP MINI OEM Signal Conditioner FOTEMP MINI Reference Drawing Page 18 of 18...
