Introduction
The ET-41 Electronic Stop clock has a 4 digit LCD display and it records times in either milliseconds (ms) or seconds (s) to 0.001 s.
The display changes from ms to s automatically during the execution of an experiment. One or two photogates can control the clock,
providing the option of timing the interruption of the gate or the time of passage between the two gates. The clock has two input jack
connectors on the front of the panel (P1 and P2), providing power for two photogates as well as receiving signals from them. The
front panel incorporates a reset button, recall button and on/off toggle power switch.
A photogate or an included external push-button swich (ET-21) controls the stop clock. The clock starts as the light beam is broken
and stops when the beam is clear. This is useful in mechanics experiments, where the velocity of a body needs to be determined at
some point in its travel. When two photogates are connected, the clock starts when the first gate's sensors are passed and stops when
the second gate is broken. The clock's internal logic senses the connection of the second gate and operates the clock accordingly.
The memory feature of the stop clock is provided for use with a single gate. In this mode, timing begins with interruption of the gate.
The display will show the total time that the gate was blocked and hold this value until the gate is interrupted a second time. After the
second measurement is complete, the time recorded during the first interruption may be read by pressing the "recall" button.

Specifications

Timing range milliseconds (ms) and seconds (s)
Display LCD
Control One or two ET-45 photogates (one included), manual pushbutton (included)
Modes Reset and recall

Operation

1. Connect the ET-41 Electronic Stop Clock to the correct power supply using a power adapter (DC 5V/1A).
2. Using the silver toggle switch, turn the unit from the off to the on position.

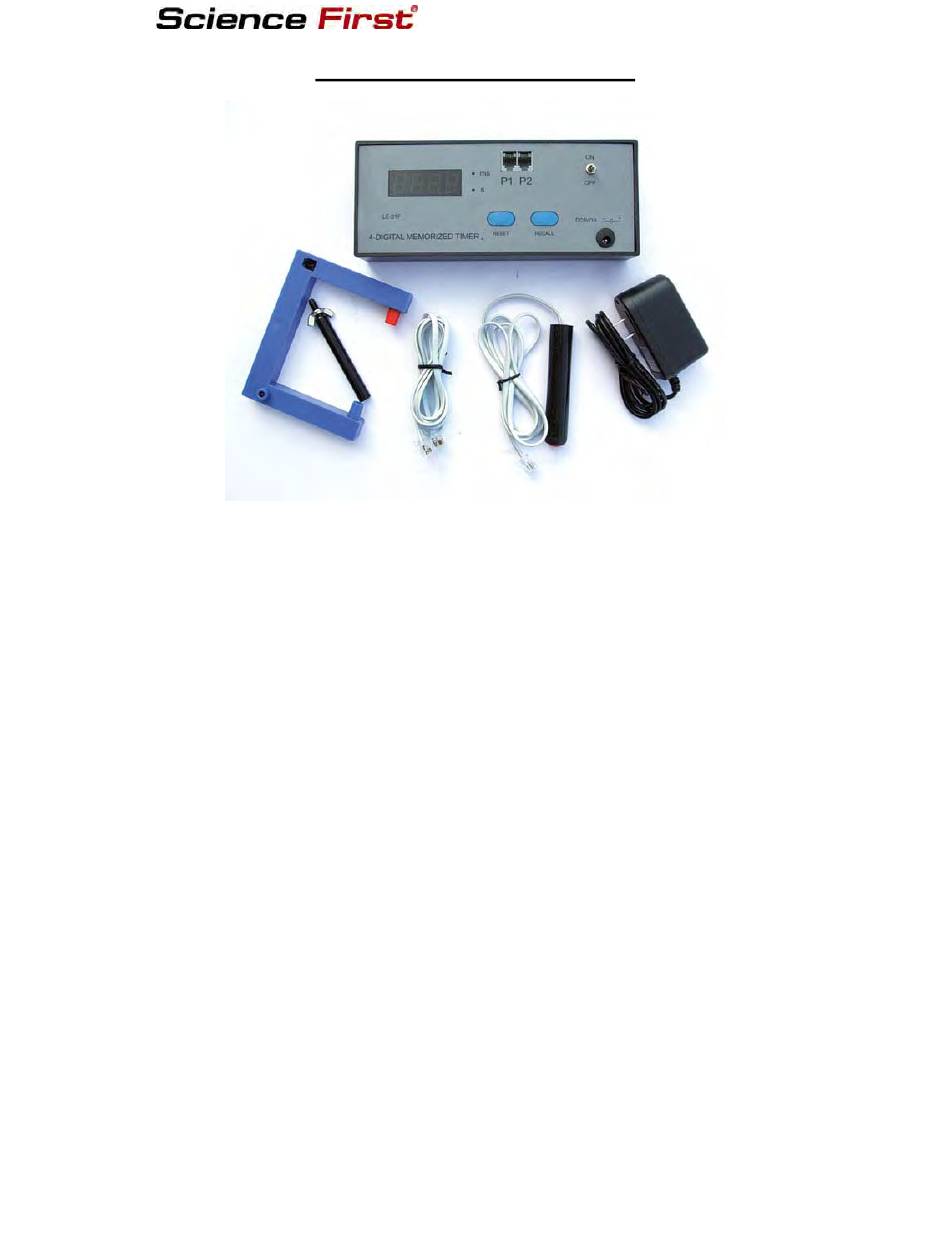

3. The device includes one photogate, and two telephone cable connectors. One telephone cable connector has the ET-41 pushbutton
attached.
1. Connect the ET-41 Electronic Stop Clock to the correct power supply using a power adapter (DC 5V/1A).
2. Using the silver toggle switch, turn the unit from the off to the on position.
3. Press the reset button. The display should read 0.0 ms.
4. Connect the photogate to the ET-41. Plug one end of the telephone cable connector into the P1 jack on the front of the unit and the
other end of the cable connector to the photogate. Place the photogate on a flat surface.
5. To test the operation, reset the display and break the beam with your hand to verify that the clock runs when the beam is broken.
