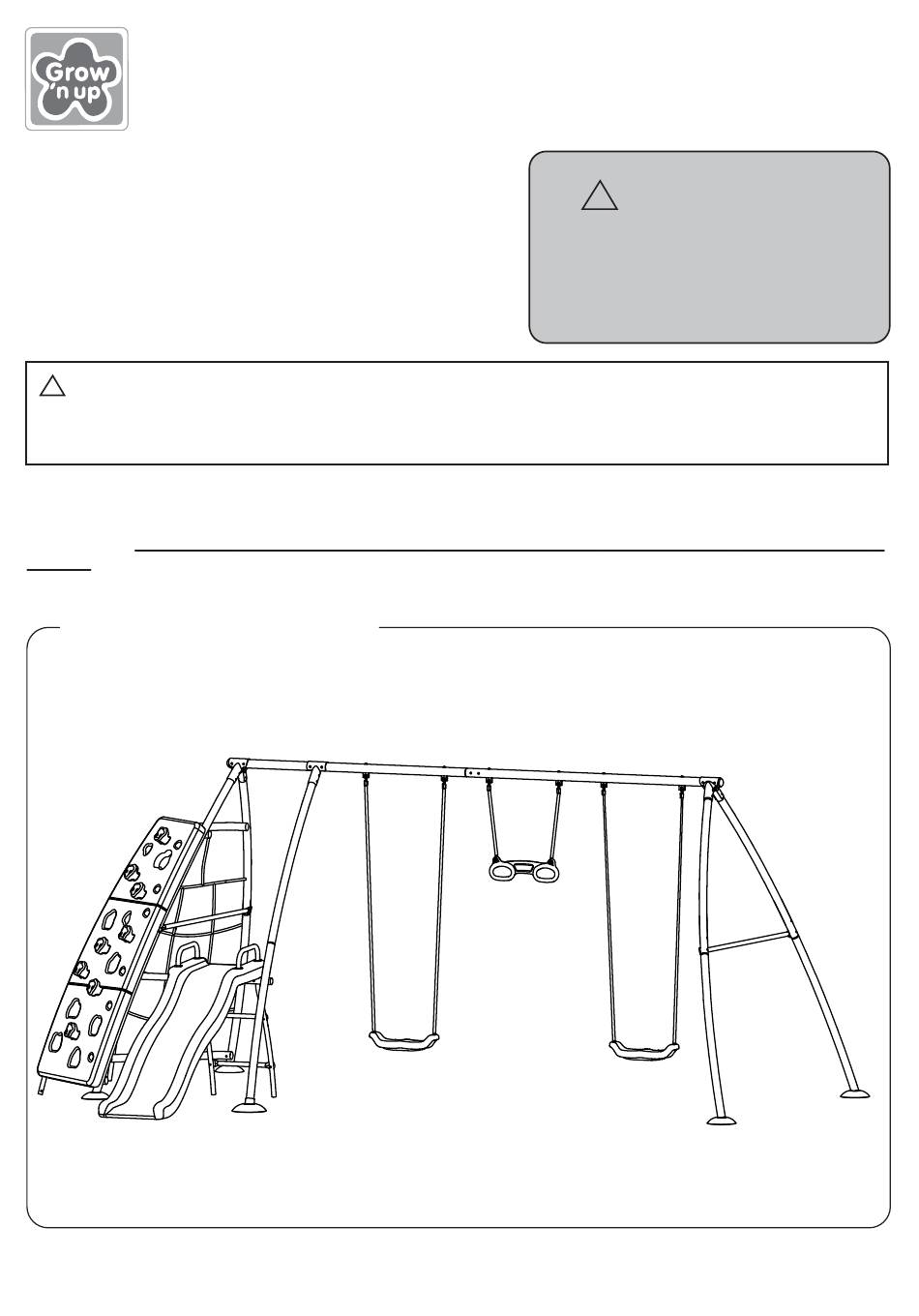

SAMSON SERIES – SPORTS CENTER SILVER
CUSTOMER SUPPORT
USA and Canada: 1-888-GNU-9898
Email: service@grow-n-up.com
Other countries: support@grow-n-up.com
www.grow-n-up.com
CAUTION:
!
Assembly must be conducted by adult only.
Keep unassembled screws, small parts and plastic bags out of children's reach. Contains sharp points, care should be taken
when unpacking and assembling this product. Adult assembly required.
DO NOT DISCARD: IMPORTANT LITERATURE.
BEFORE ASSEMBLY AND USE OF THIS PLAYGROUND EQUIPMENT. THEY CONTAIN IMPORTANT
INFORMATION FOR USER SAFETY AND FOR THE PROPER USE AND MAINTENANCE OF THIS PLAYGROUND
EQUIPMENT. OBSERVE ALL WARNINGS AND STATEMENTS REDUCES THE RISK OF SERIOUS OR FATAL
INJURY. PLEASE KEEP THIS INSTRUCTION FOR FUTURE REFERENCE OR FOR ORDERING SPARE PARTS.
SAMSON SERIES

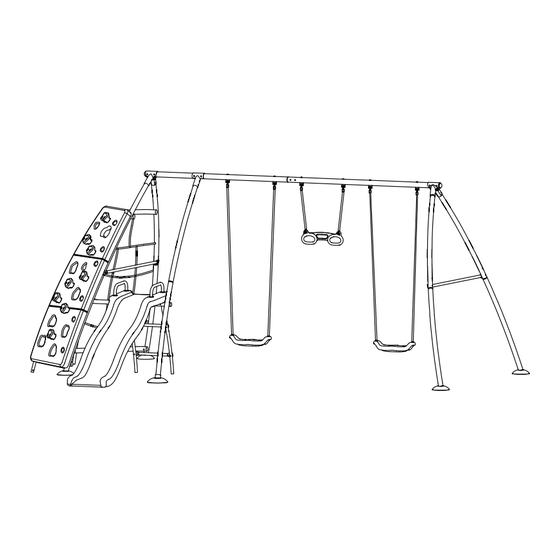

SPORTS CENTER SILVER
©2006 Grow'n Up Limited. All Rights Reserved. Tsim Sha Tsui East, Kowloon, Hong Kong.
MODEL# 8019 SAMSON SERIES – SPORTS CENTER SILVER
ASSEMBLY INSTRUCTIONS
Choking Hazard - Small parts and sharp points.
!
Please follow all these Safety,
Maintenance and Assembly
Instructions. Failure to do so could
result in serious or fatal injury.
PLEASE READ & FOLLOW INSTRUCTIONS CAREFULLY
Product may vary from the illustration.
1
Ages: 3 - 10
WARNING
MADE IN CHINA
www.grow-n-up.com
No. 8019
