Process Flow:
Change the
Start Source
Parameters
of the VFD
1. Make sure that you are on the home screen and there are no errors.
2. How to set the start source to keypad:
01. Press select (center key)
02. Locate the PO parameters and select enter (cycle parameter types using the up and
down arrow)

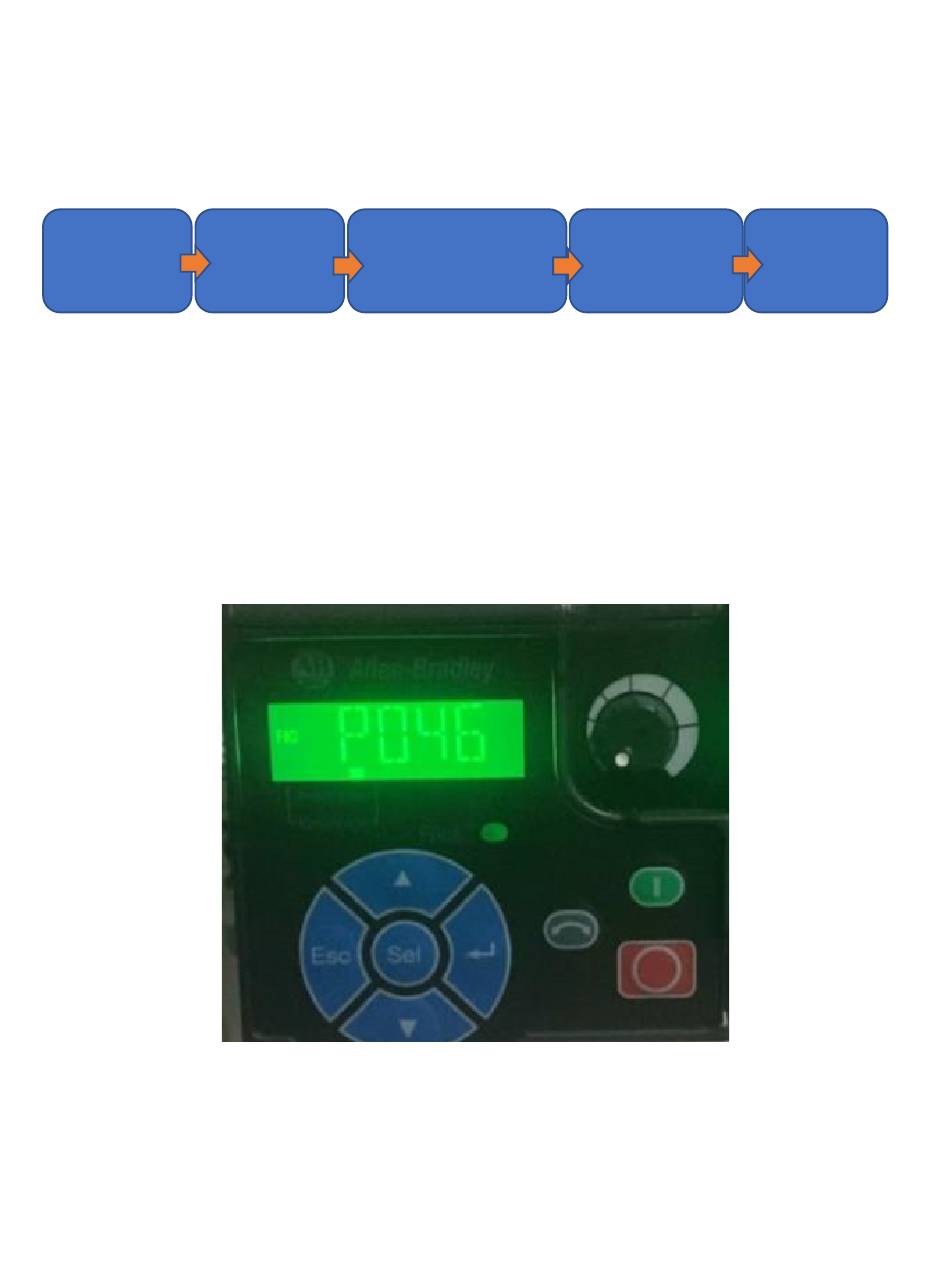

03. Locate parameter PO46 (Start Source)
i. Use the up and down arrows to cycle to the number 1 (Keypad)
Procedure for Setting Poweflex 525 VFD to Manual mode
Save the
Frequency Command
to Keypad
1. Selection 5(ethernet) is the default it should be placed back on this
setting using the same steps to properly communicate with the PLC.
Change the
of the VFD
Save the
Parameters to
Potentiometer
Exit to
Home
Screen
Advertisement
Summary of Contents for Allen-Bradley Poweflex 525 VFD
- Page 1 Procedure for Setting Poweflex 525 VFD to Manual mode Process Flow: Change the Save the Change the Save the Exit to Start Source Parameters Frequency Command Parameters to Home of the VFD to Keypad of the VFD Potentiometer Screen 1. Make sure that you are on the home screen and there are no errors.
- Page 2 ii. Note: moving to a parameter and waiting for approximately 2 seconds will populate the parameter description. 04. Press Enter 05. Press the escape key 3 times to go back to the home screen and save the new parameters.
- Page 3 3. How to set the Frequency Command to Drive potentiometer: 01. Press Select 02. Locate the PO parameters (cycle parameter types using the up and down arrow) 03. Locate parameter PO47 (Frequency Command) i. Use the up and down arrows to cycle to the number 1 (Drive Potentiometer) ii.
- Page 4 iii. Note: moving to a parameter and waiting for approximately 2 seconds will populate the parameter description. 04. Press Enter 05. Press the escape key 3 times to go back to the home screen and save the new parameters.
