698-2700MHz Outdoor Pole Mount Antenna, PIM Certified,
SISO

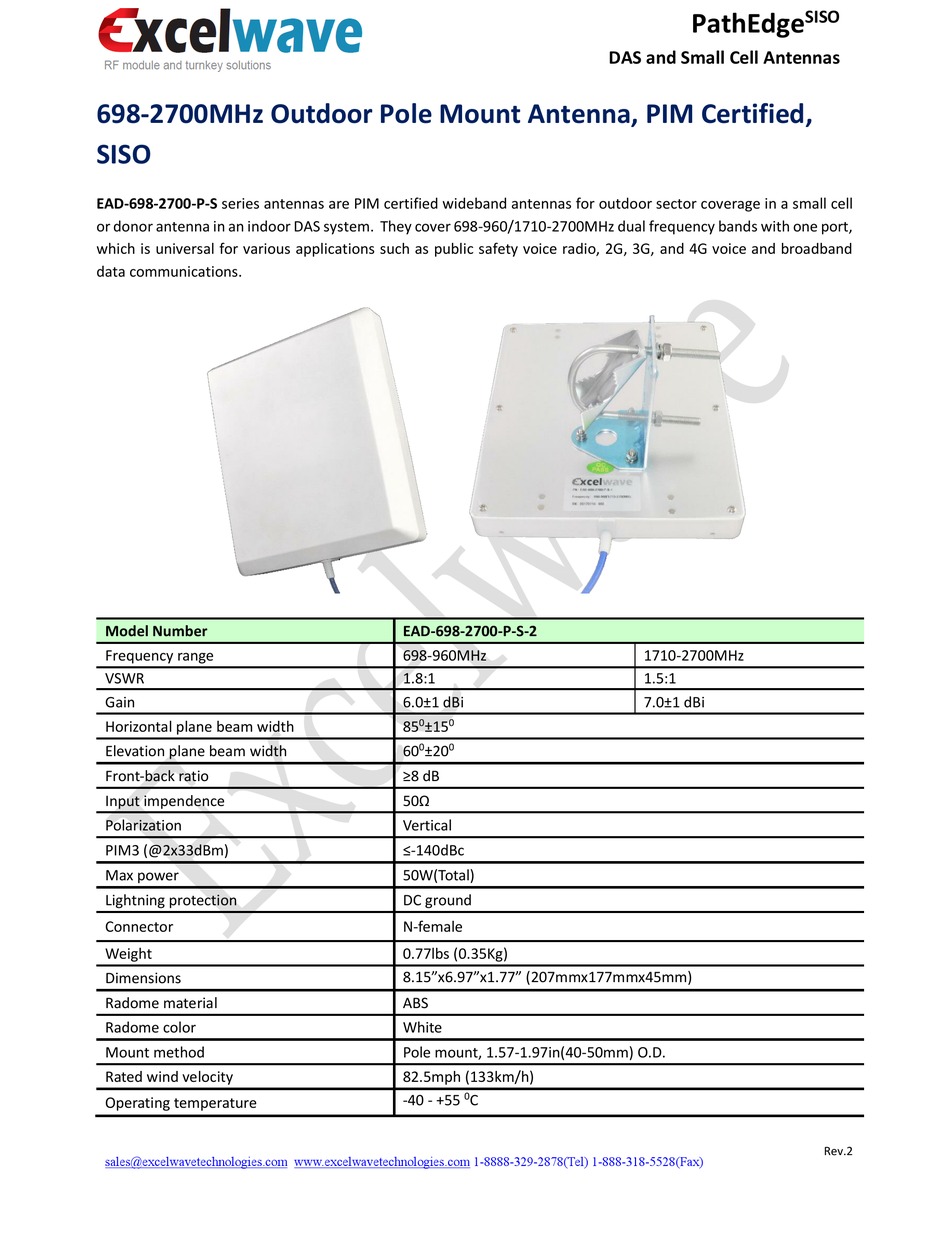

EAD-698-2700-P-S series antennas are PIM certified wideband antennas for outdoor sector coverage in a small cell
or donor antenna in an indoor DAS system. They cover 698-960/1710-2700MHz dual frequency bands with one port,
which is universal for various applications such as public safety voice radio, 2G, 3G, and 4G voice and broadband
data communications.
Model Number
Frequency range
VSWR
Gain
Horizontal plane beam width
Elevation plane beam width
Front-back ratio
Input impendence
Polarization
PIM3 (@2x33dBm)
Max power
Lightning protection
Connector
Weight
Dimensions
Radome material
Radome color
Mount method
Rated wind velocity
Operating temperature
sales@excelwavetechnologies.com www.excelwavetechnologies.com 1-8888-329-2878(Tel) 1-888-318-5528(Fax)
EAD-698-2700-P-S-2
698-960MHz
1.8:1
6.0±1 dBi
0
0
85
±15
0
0
60
±20
≥8 dB
50Ω
Vertical
≤-140dBc
50W(Total)
DC ground
N-female
0.77lbs (0.35Kg)
8.15"x6.97"x1.77" (207mmx177mmx45mm)
ABS
φ168*100mm(φ6.62*3.95in)
White
Pole mount, 1.57-1.97in(40-50mm) O.D.
82.5mph (133km/h)
0
-40 - +55
C
PathEdge
DAS and Small Cell Antennas
1710-2700MHz
1.5:1
7.0±1 dBi
SISO
Rev.2
