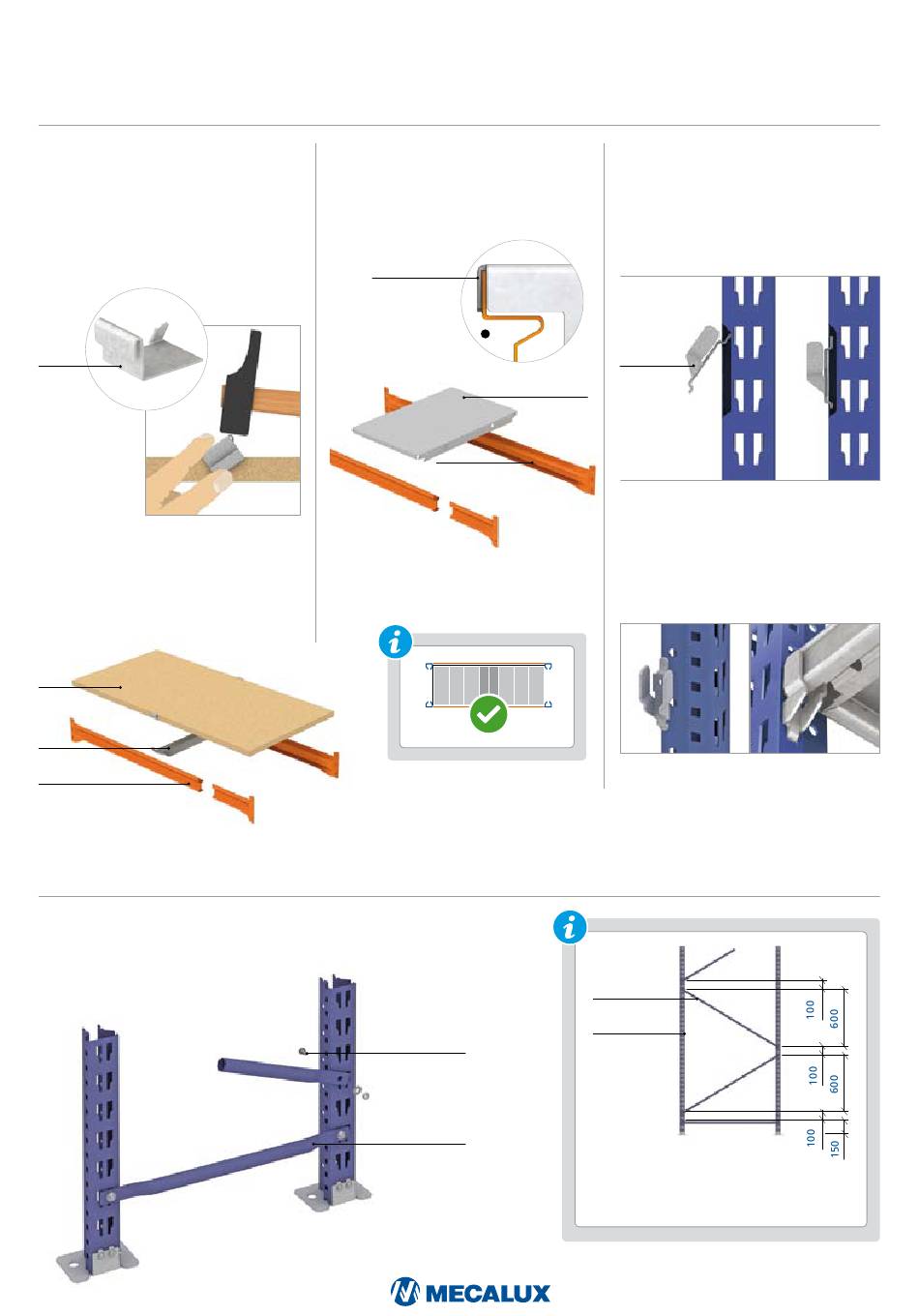

Mecalux LONGSPAN M7 Assembly Instructions page 3

Shelf Assembly
Chipboard Shelves
The shelf is supported by the beams. Before
attaching the shelf, attach the clamp to
the underside of the board (see diagram),
tapping it into place using a mallet. Z-TAM
clamps (L) are used with shelves that are
longer than 1,825mm. Two clamps should
be fitted in the middle of each shelf.
Chipboard
Z-Clamp (L)
Attach the chipboard support bars (M)
if required by the shelving model. Then
insert the shelf (E), fitting it into place on
the beams (B) by applying light pressure.
Shelf (E)
Chipboard
Support Bar (M)
Beam (E)
Bracing Assembly (Only for units with HM shelves)
Vertical bracing is attached to the holes in
the uprights on the back of the shelving with
two M 8x20 D603 (tallow-drop) bolts per
brace (R). The heads of the bolts should be on
the inside of the upright and the nuts facing
the outside to prevent them from turning.
Picking Panels
Assemble the metal PK shelves (N) in
the same way as in Chipboard Shelves,
attaching them so that the fastening tabs (P)
protrude on the outside of the beams (B).
Fastening
tab (P)
Beam (B)
Position the narrowest picking
panels in the centre.
M 8x20 D603 Bolt
VM Bracing (R)
HM Panels
If inserting a metal HM shelf, you must
first attach the four PK supports (Q): one
on each upright, all at the same height,
in the manner shown in the diagram.
Support (Q)
PK Shelf (N)
After inserting the four supports, attach
the shelf by applying light pressure
to each corner until it is secure.
Bracing
Frame
Note: Units with levels made from wood
or PK panels do not require bracing.
