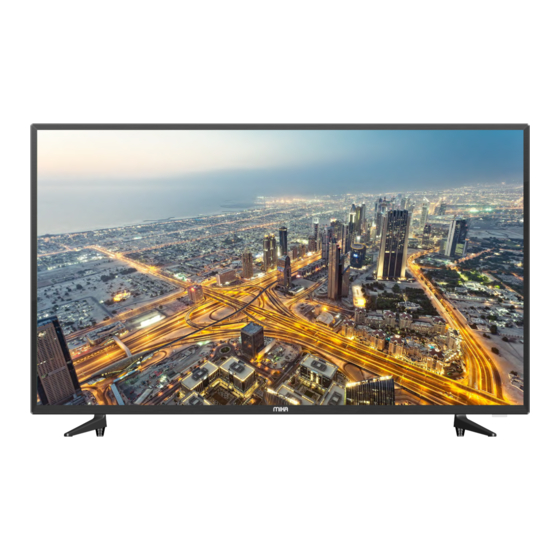

MIKA MT32LDH101D User Manual

Lcd/led color television

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

USER MANUAL

MODEL NO: MT32LDH101D

THANK YOU & CONGRATULATIONS FOR PURCHASING THIS QUALITY PRODUCT

To get the optimum use & derive maximum satisfaction from this product, we request

you to read and follow all the instructions in this user manual carefully before using the

product. Keep this user manual in a proper place where you can find it for future

reference.

Table of Contents

Need help?

Do you have a question about the MT32LDH101D and is the answer not in the manual?

Questions and answers

Summary of Contents for MIKA MT32LDH101D

Page 1 USER MANUAL MODEL NO: MT32LDH101D THANK YOU & CONGRATULATIONS FOR PURCHASING THIS QUALITY PRODUCT To get the optimum use & derive maximum satisfaction from this product, we request you to read and follow all the instructions in this user manual carefully before using the product.
Page 2 INSTRUCTION MANUAL DEAR CUSTOMER: Congratulations on your purchase of the LCD color television! This manual will help you use the many exciting and useful features to make your LCD TV viewing more enjoyable than ever before. Before operating, please read all these safety and operating instructions completely and then retain this manual for future reference.
Page 3 11. Entering of objects and liquids --- Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product. 12.
Page 5: Using The Remote Control
USING THE REMOTE CONTROL Use the remote control by pointing it towards the remote sensor window of the set. Objects between the remote control and sensor window may prevent proper operation. NOTE: The illustration is for your reference only, the remote sensor may locate differently with different model.
Page 6: Cable Installation
CABLE INSTALLATION Before the installation and use, please read carefully the relevant content in “Notice for Maintenance and Safety”. 1. Take the LCD TV from the wrapping package and put it in a drafty and flat place. NOTE: When you plug or unplug the LCD TV, computer or other equipments, you must make sure that the AC power has been already shut down;...
Page 7 QUICK START GUIDE Connection  Turn off and unplug all components before making connections.  Do not turn on the TV until connection setup is completed. Input High or Standard Video Connection Audio Connection Connector Definition Quality Composite video connector Audio L/R 480P (SD content)
Page 8: Remote Control
REMOTE CONTROL The buttons of the original re mote control are as following: Definition of the buttons on remote control: : Enter or quit the standby mode. : Mute or restore sound. 3. COLOR BUTTONS: Red/green/yellow/blue key navigation link. 4. NUMBER BUTTONS: Use to choose channels. : Return to last viewed program.
Page 9 TV OPERATION Turning on and off the TV 1. Turning on 1. Connect the AC input cable. At this time the TV will enter standby mode. 2. In standby mode, press the button on remote control to turn on the TV. 2.
Page 10: Select Input Source
MSD306-OSD SELECT INPUT SOURCE Press INPUT button to display the input source list, Press ▼ / ▲ or OK button to select the input source you want. Press OK button to enter the input source, Press EXIT button to quit.
Page 11: First Time Installation
MSD306-OSD First Time Installation Connect an RF cable from the Tv’s input called “RF-In” and to your TV Aerial socket. Select Language Press ◄ / ► button to select the language to be used for menus and message. Select Country Press ▼...
Page 12 MSD306-OSD Auto Tuning First tuning ATV, press Menu and left arrow button to skip ATV tuning, Second tuning DTV, press Menu and left arrow button to skip DTV tuning.
Page 13: Main Menu Operation
MSD306-OSD Main Menu Operation Channel Menu Press MENU button to display the main menu. Press ◄ / ► button to select CHANNEL in the main menu. 1. Press ▼ / ▲ button to select the option that you want to adjust in the CHANNEL menu. 2.
Page 14 MSD306-OSD ATV Manual Tuning Current CH Set the channel number. Color System Select the color system (Available System: AUTO,PAL , SECAM ) Sound System Select the Sound system Fine-Turn Adjust the frequency of the channel finely. Search Start searching channel.
Page 15 MSD306-OSD DTV Manual Tuning Press ▼ / ▲ button to select DTV Manual Tuning, then press Enter button to enter sub-menu. Press ◄ / ► button to select channel, then press Enter button to search program. Program Edit Press ▼ / ▲ button to select Program Edit, then press Enter button to enter sub-menu. The three colored key is the shortcut key for programming the channel.
Page 16 MSD306-OSD Schedule List Press ▼ / ▲ button to select Schedule List, then press Enter button to enter sub-menu. It is available in source. When the time appointment is conflict , Press the YELLOW button to enter the it will produce a warning message. interface below.
Page 17 MSD306-OSD The CHANNEL List in Satellite Source. Auto Tuning Press ▼ / ▲ button to select Auto Tuning, then press Enter/► button to enter. Dish Setup Press ▼ / ▲ button to select Dish Setup.then press Enter/► button to enter.
Page 18 MSD306-OSD Press MENU button to call out the main menu. Highlight “Channel” using navigation buttons and press OK to enter it. Then highlight “Dish Setup” and press OK to enter it. Press LEFT/RIGHT navigation button to highlight Left, Middle or Right column.
Page 19 MSD306-OSD C.When the “Ku_ASTRA…” (Right) column is highlighted: LNB (Low Noise Block) Type Press LEFT/RIGHT navigation button to enter submenu. Then use UP/DOWN navigation button to select desired option. LNB Power Press LEFT/RIGHT navigation button to select desired option. 22 kHz Press LEFT/RIGHT navigation button to select desired option.
Page 20: Picture Menu
MSD306-OSD Picture Menu Press MENU button to display the main menu. Press ◄ / ► button to select PICTURE in the main menu. 1. Press ▼ / ▲ button to select the option that you want to adjust in the PICTURE menu. 2.
Page 21 MSD306-OSD Color Temp Change the overall color cast of the picture. Press ▼ / ▲ button to select Color Temperature , then press OK button to enter sub-menu. Press ▼ / ▲ button to select. (Available Picture mode: Coldl, Normal, Warm). You can change the value of red,green and blue when the color temperature is in User mode.
Page 22: Sound Menu
MSD306-OSD Sound Menu Press MENU button to display the main menu. Press ◄ / ► button to select SOUND in the main menu. 1. Press ▼ / ▲ button to select the option that you want to adjust in the SOUND menu. 2.
Page 23 MSD306-OSD Time Menu Press MENU button to display the main menu. Press ◄ / ► button to select TIME in the main menu. 1. Press ▼ / ▲ button to select the option that you want to adjust in the TIME menu. 2.
Page 24 MSD306-OSD Sleep Timer Press ▼ / ▲ button to select Sleep Timer, then press Enter button to enter sub-menu. Press ▼ / ▲ button to select. (Available options are:Off,10min,20min,30min,60min,90min, 120min,180min,240min). Auto Standby Press ▼ / ▲ button to select Auto Standby, then press Enter button to enter sub-menu.
Page 25 MSD306-OSD Channel Lock Press ▼ / ▲ button to select Channel Lock then press Enter button to enter sub-menu to select. Press Green button to lock or unlock the channel. Parental Guidance Press ▼ / ▲ button to select Parental Guidance, then press Enter button to enter sub-menu to select the number of age which is suitable for your children.
Page 26 MSD306-OSD Lock Menu Press MENU button to display the main menu. Press ◄ / ► button to select Lock in the main menu. 1. Press ▼ / ▲ button to select the option that you want to adjust in the LOCK menu. 2.
Page 27: Hotel Mode
MSD306-OSD Hotel Mode 1. Press ▼ / ▲ button on the remote control to select hotel mode in the Lock menu. 2. Press Enter button on the remote control to enter the sub-menu. 3. After finishing your adjustment, Press MENU button to save and return back to the previous menu. Hotel Mode Press ▼...
Page 28: Setup Menu
MSD306-OSD Setup Menu Press MENU button to display the main menu. Press ◄ / ► button to select SETUP in the main menu. 1. Press ▼ / ▲ button to select the option that you want to adjust in the SETUP menu. 2.
Page 29 MSD306-OSD Audio Languages Press ▼ / ▲ button to select Audio Languages, then press Enter button to enter sub-menu. Press ◄ / ► button to select the primary of Audio Languages. Press ▼ / ▲ / ◄ / ► button to select the Audio Languages. Subtitle Language Press ▼...
Page 30 MSD306-OSD Aspect Ratio Press ▼ / ▲ button to select Aspect Ratio, then press Enter button to enter sub-menu. Press ▼ / ▲ button to select aspect ratio. (Available options are: Auto, 4:3,16:9, Zoom1, Zoom2). Blue Screen Press ▼ / ▲ button to select Blue Screen, then press Enter button to select On or Off. First Time Installation Press ▼...
Page 31 MSD306-OSD...
Page 32: Screen Menu
MSD306-OSD Screen Menu Press MENU button to display the main menu. Press ◄ / ► button to select SCREEN in the main menu. 1. Press ▼ / ▲ button to select the option that you want to adjust in the SCREEN menu. 2.
Page 33 MSD306-OSD MEDIA...
Page 34: Media Operation
MSD306-OSD Media OPERATION Note: Before operating Media menu,Plug in USB device,then press INPUT button to set the Input Source to Media . Press ▼ / ▲ button to select Media in the Source menu, then press Enter button to enter. Press ◄...
Page 35: Photo Menu
MSD306-OSD Photo Menu Press ◄ / ► button to select PHOTO in the main menu, then press Enter button to enter. Press Exit button to return to the previous menu and exit menu to quit. Press ◄ / ► button to select the file you want to watch in the file selecting menu, then press media button to display picture.
Page 36: Music Menu
MSD306-OSD Music Menu Press ◄ / ► button to select MUSIC in the main menu, then press Enter button to enter. Press Exit button to return to the previous menu and exit menu to quit. Press ◄ / ► button to select drive disk you want to watch, then press Enter button to enter. Press ◄...
Page 37: Movie Menu
MSD306-OSD Movie Menu Press ◄ / ► button to select MOVIE in the main menu, then press Enter button to enter. Press Exit button to return to the previous menu and exit menu to quit. Press ◄ / ► button to select drive disk you want to watch, then press Enter button to enter. Press media button to play the selected movie.
Page 38 MSD306-OSD Text Menu Press ◄ / ► button to select TEXT in the main menu, then press Enter button to enter. Press Exit button to return to the previous menu and exit menu to quit. Press ◄ / ► button to select drive disk you want to watch, then press Enter button to enter. Press ◄...
Page 39: Troubleshooting
TROUBLE SHOOTING When you meet the following comm on problems, you might diagnose an d get the solutions without contacting with the technicians. Symptoms Possible Reason Solutions No picture, no sound, and no The power cord is not connected Connect the AC power cable with indicator light on with AC power.
Page 40 AFTER SALES SERVICE / CUSTOMER CARE If you nd something wrong with this appliance even after the trouble shooting, contact the nearest agent of MIKA products or contact the MIKA customer care center. The customer care contacts \are provided on the warranty card and our website www.mikaappliances.com.
