Rear Panel Component Source

WARNING: Do not connect the power source before making connections.
Internal Component Source
The Internal Component Source allows you to easily connect to the Audio, Video, Digital Audio Out, HDMI, Audio
Out, and RF connectors.
1. The Internal Component Source is inside the Component Cover located on the back of the unit.

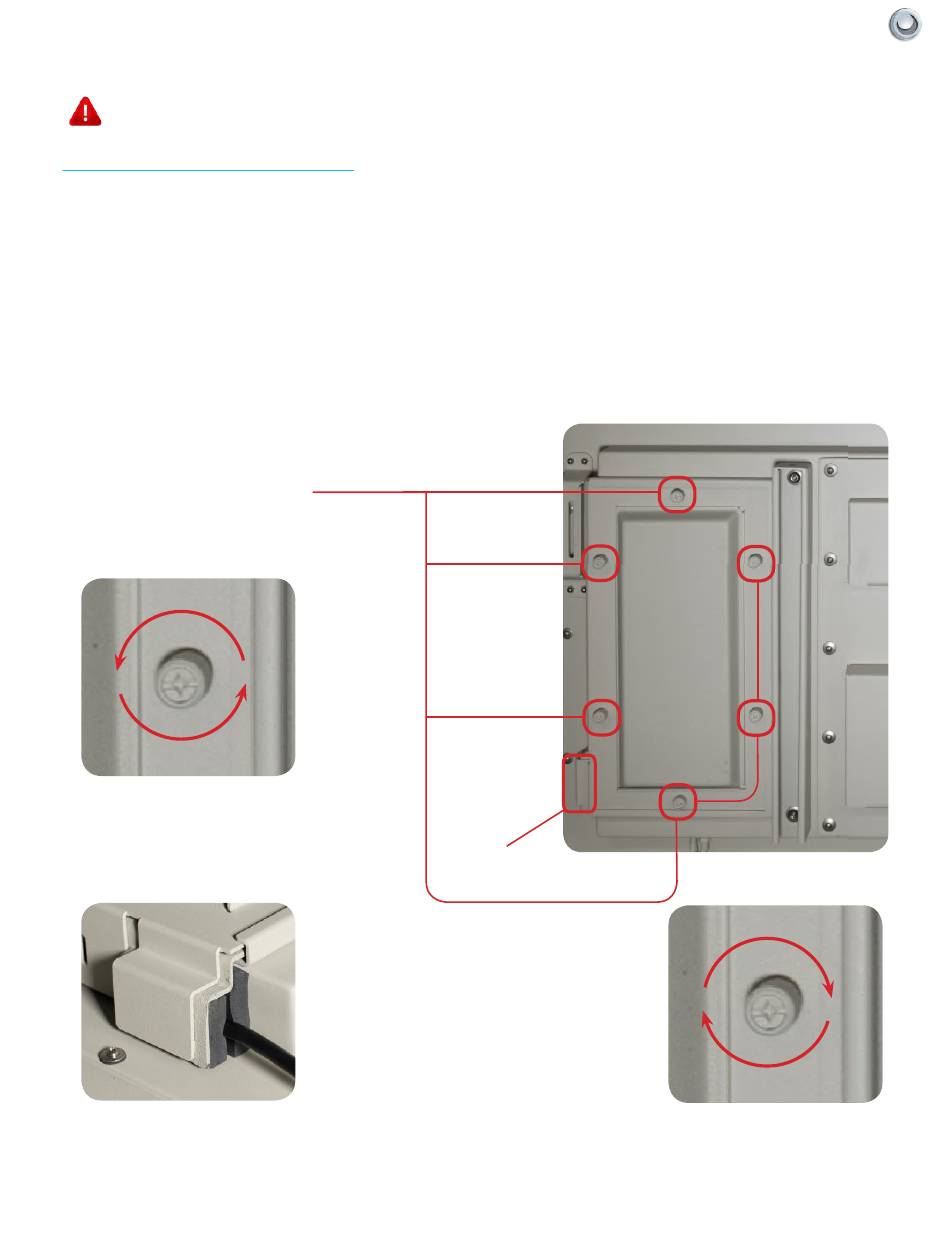

2. Loosen the 6 thumbscrews located on the back cover of your SkyVue TV , and slide the cover toward the
left to reveal the Component Source.
3. Route cables to the proper inputs, and place the cable cords over the Rubber Sealing Gasket.
4. Close the cover.
5. Press firmly on the cover, and tighten the thumbscrews.
Component Cover Thumbscrews
Loosen Thumbscrews
CABLE PASSAGE
Operator's Manual -
Model
CABLE PASSAGE
C-OBX-55150-UHB
Tighten Thumbscrews
