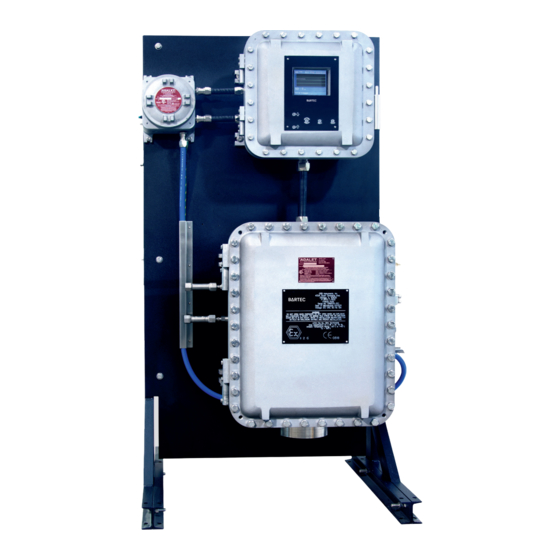

ORB P-840LT User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

ATEX

Zone 1 II B + T4

CSA/CUS Class 1 Div 1 Group C + D

Process Analyzer

User Manual

P-840LT NO FLOW ANALYZER, LOW TEMP

Table of Contents

Need help?

Do you have a question about the P-840LT and is the answer not in the manual?

Questions and answers

Summary of Contents for ORB P-840LT

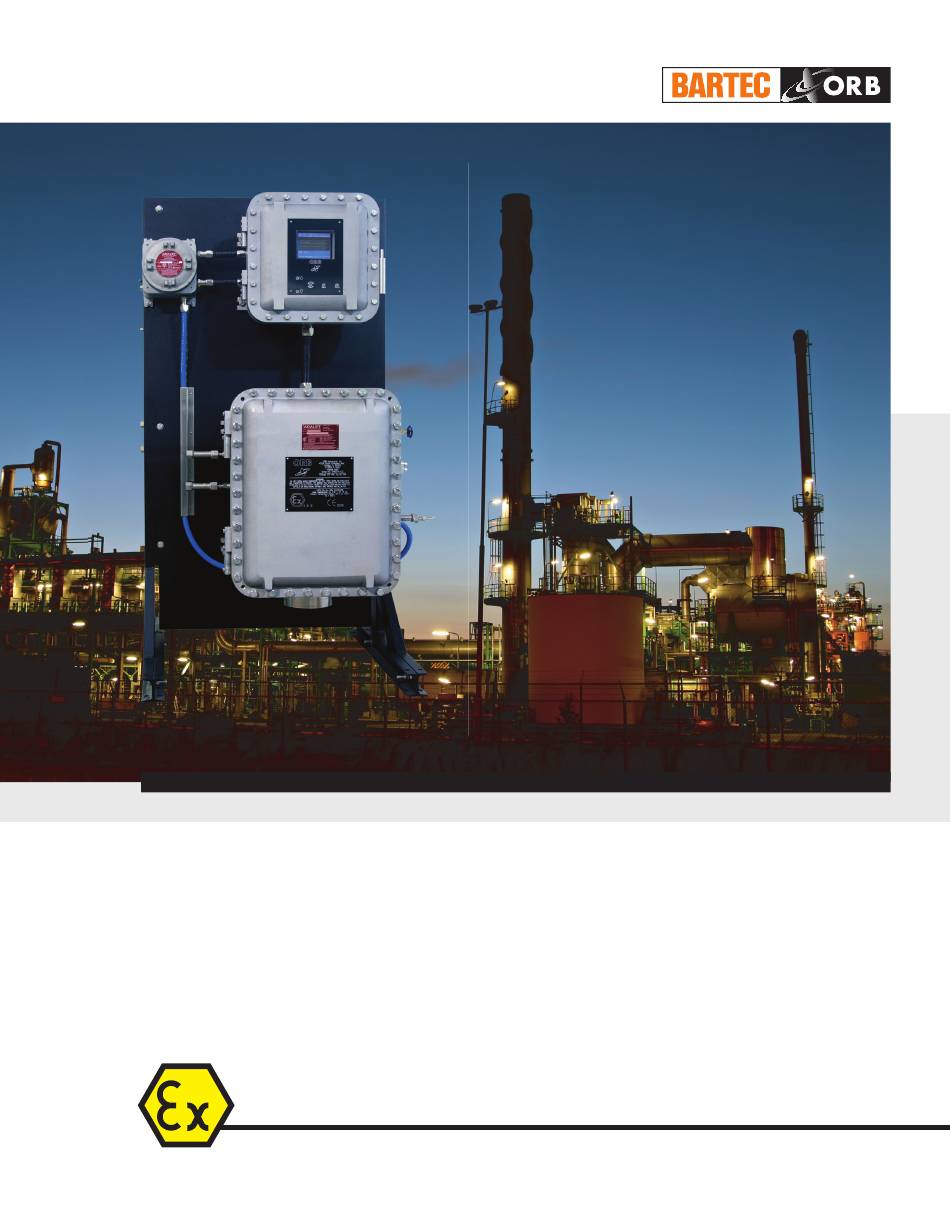

Page 1 ATEX Zone 1 II B + T4 CSA/CUS Class 1 Div 1 Group C + D Process Analyzer User Manual P-840LT NO FLOW ANALYZER, LOW TEMP...
Page 2: Table Of Contents
Optional Detection Cell Purge Gas Supply ..................3-8 Wiring ................................. 3-9 Electrical Power ........................... 3-9 Control Room Signals ........................3-10 Analog Output ..........................3-10 Relay Output ..........................3-10 Serial Output ..........................3-10 Modbus............................3-11 Digital Inputs ..........................3-11 Startup ..............................3-12 P-840LT Pour Point Analyzer Foreword...
Page 3 PP 2 Mode ..........................4-8 PP 1 Threshold ........................4-8 PP 2 Threshold ........................4-8 Cool Drag ............................4-8 Relay Setup ........................... 4-9 Relay ............................4-9 Choice ............................. 4-9 Conditions ..........................4-9 State Table Setup ..........................4-10 P-840LT Pour Point Analyzer Foreword...
Page 4 Sample Solenoid ........................... 6-2 Validation Solenoid ........................6-2 Stream Solenoid ..........................6-2 4-20 Control ............................6-2 Alarms ..............................6-2 Cell Temperature Control ........................6-2 PWM Load ............................ 6-2 Heater............................6-2 Cooler ............................6-3 Pressure System ..........................6-3 P-840LT Pour Point Analyzer Foreword...
Page 5 DI ................................. 6-3 – S PARE AND EPLACEMENT ARTS ECTION Spare Parts Kits ............................7-1 1-Year Parts Kit ........................... 7-1 2-Year Parts Kit ........................... 7-1 Replacement Parts ............................. 7-2 – S RAWINGS AND CHEMATICS ECTION P-840LT Pour Point Analyzer Foreword...
Page 6: Warranty
In the event that a defect is discovered during the warranty period, Orb Instruments agrees that, at its option, it will repair or replace the defective product or refund the purchase price, excluding original shipping and handling charges.
Page 7: Introduction Section
NALYZER VERVIEW The ORB Instruments’ Model P-840LT Pour Point Analyzer is an on-line instrument designed for the continuous measurement of pour point in hydrocarbon refining processes. Extremely rugged and simple to operate, the compact P-840LT Pour Point Analyzer combines exceptional measurement accuracy with unmatched operational dependability to deliver highly reliable and repeatable pour point determinations day in, day out, month after month.
Page 8 02-01-2013 CUSTOMER 3 ALARM RELAYS (PROGRAMMABLE) SPDT, 3A RESISTIVE CONTACTS CONNECTION 4-20mA OUT, POUR POINT ISOLATED & SELF POWERED Figure 1-1a: Flow Schematic (Analyzers with a Water-Cooled Cryocooler) P-840LT Pour Point Analyzer Introduction...
Page 9 The temperature at which the differential pressure in the detection cell changes is the pour point. When pour point is detected, the temperature is displayed locally and output as an analog and/or serial signal. The sample solenoid opens and a new measurement cycle is initiated. P-840LT Pour Point Analyzer Introduction...
Page 10: Component Identification
02-01-2013 OMPONENT DENTIFICATION RONT Customer Connections Enclosure Control Enclosure Air In Pressure Regulator Measurement Enclosure Coolant Reservoir Measurement Enclosure Drain Coolant Circulating Pump Figure 1-2a: Front View (Analyzers with a Water-Cooled Cryocooler) P-840LT Pour Point Analyzer Introduction...
Page 11 02-01-2013 Customer Control Connections Enclosure Enclosure Air In Pressure Regulator Measurement Enclosure Measurement Enclosure Drain Figure 1-2b: Front View (Analyzers with an Air-Cooled Cryocooler) P-840LT Pour Point Analyzer Introduction...
Page 12: Control Enclosure
02-01-2013 ONTROL NCLOSURE Serial Modbus Serial RS232 Main Control Fuses Digital Inputs TCP/IP Ethernet Connection for Power Switch Modbus RTD Conversion PCB Figure 1-3: Control Enclosure P-840LT Pour Point Analyzer Introduction...
Page 13: Measurement Enclosure
02-01-2013 EASUREMENT NCLOSURE Cryocooler Drive Detection Cell Sample Hammer Water- or Air-Cooled Differential Cryocooler Pressure Sensor Leak Detector Figure 1-4: Measurement Enclosure P-840LT Pour Point Analyzer Introduction...
Page 14: Menu Structure
On / Off On / Off On / Off Cell Temp Control PWM Load Display only Heater On / Off Cooler On / Off Pressure System Pressure Display only Display only – status of digital inputs P-840LT Pour Point Analyzer Introduction...
Page 15 Steps in measurement cycle Setup 12 hour / 24 hour) Time Format US / EU Time/Date Date Format Setup Date MM/DD/YY or DD/MM/YR Time HH/MM/SS Factory Setup — For factory use only Security — — Enable / Disable P-840LT Pour Point Analyzer Introduction...
Page 16 02-01-2013 [THIS PAGE INTENTIONALLY BLANK] P-840LT Pour Point Analyzer 1-10 Introduction...
Page 17: Specifications
Maximum: 14 bar (200 psi) Sample Temperature Minimum: 2°C (35°F) Maximum: 100°C (212°F) Sample Particulates Less than 10 µm; optional sample conditioning system available Sample Conditions Homogeneous, single-phase sample. Must be free of water or water moisture P-840LT Pour Point Analyzer Specifications...
Page 18: Signal Inputs/Outputs
935 x 1803 x 559 mm (36.75 x 71.0 x 22.0 inches) Weight Approximately 270 kg (600 pounds) Enclosure Rating NEMA 4X / IP65 rated EExd enclosures Certification CE certified Hazardous Classification Model dependent; see above. P-840LT Pour Point Analyzer Specifications...
Page 19: Installation And Startup Section
NOTE: An optional free-standing mounting rack is standard. The P-840LT Pour Point Analyzer is either frame or shelter mounted and should be installed on a flat, level surface free from intense vibration. Frame legs or shelter feet are designed for use with ½ inch expansion bolts.
Page 20 02-01-2013 Figure 3-1a: Dimensional Drawing (Analyzers with a Water-Cooled Cryocooler) P-840LT Pour Point Analyzer Installation and Startup...
Page 21 02-01-2013 Figure 3-1b: Dimensional Drawing (Analyzers with an Air-Cooled Cryocooler) P-840LT Pour Point Analyzer Installation and Startup...
Page 22: Piping
02-01-2013 IPING The P-840LT Pour Point Analyzer incorporates fittings for connecting process sample, instrument air, and optional detection cell purge gas. Analyzers with a water-cooled cryocooler also have connections for plant cooling water. These fittings are located on the sides of the instrument.
Page 23 Control Enclosure Reset Button Customer Connections Enclosure Instrument Air In Measurement Enclosure Process Sample In Process Sample Out Optional Detection Cell Purge Gas In Figure 3-2b: Left Side View (Analyzers with an Air-Cooled Cryocooler) P-840LT Pour Point Analyzer Installation and Startup...
Page 24 02-01-2013 Control Enclosure Power Switch Measurement Enclosure Coolant Reservoir Coolant Circulating Pump Measurement Enclosure Drain Figure 3-3a: Right Side View (Analyzers with a Water-Cooled Cryocooler) P-840LT Pour Point Analyzer Installation and Startup...
Page 25 02-01-2013 Control Enclosure Power Switch Measurement Enclosure Measurement Enclosure Drain Figure 3-3b: Right Side View (Analyzers with an Air-Cooled Cryocooler) P-840LT Pour Point Analyzer Installation and Startup...
Page 26: Process Sample
URGE UPPLY The P-840LT Pour Point Analyzer’s provides for an optional inert gas purge to prevent condensation from forming on the cryocooler. This optional purge, if supplied, requires clean, dry nitrogen (98% pure) or other inert gas at a pressure of 0.7 bar (1.0 psi); This insert gas connection is made on the left side of Measurement Enclosure (Figures 3-2a and 3-2b).
Page 27: Wiring
Proper building codes and safety regulations should be followed. The P-840LT Pour Point Analyzer requires an independent 100 to 240 VAC (±10%), 50/60 Hz. power supply. AC power connections are made through the Customer Connections box attached to the upper left of the top enclosure (Figures 3-2a and 3-2b).
Page 28: Control Room Signals
(Figure 3-4) or the Control Enclosure (Figure 3-6). Analog Output One isolated 4-20 mA output is standard on the P-840LT Pour Point Analyzer. An optional two additional 4-20 mA outputs may be provided. These connections are made in the Customer Connections Enclosure (Figure 3-4).
Page 29: Modbus
ModBus is available as a factory-installed option which utilizes either the Analyzer’s TCP/IP connection for ModBus or its serial ModBus connection. This connection is made in the Control Enclosure (Figure 3- 6). Consult ORB Instruments for more information. Digital Inputs The Analyzer incorporates four sets of voltage dry contacts that allow the control room to remotely activate selected functions.
Page 30: Startup
Analyzers with a water cooled cryocooler. Turn the coolant supply On and check for leaks. Close the Measurement Enclosure door. You are now ready to run analyses using the factory default settings or program the instrument with your desired operational parameters (see Section 4, Programming). P-840LT Pour Point Analyzer 3-12 Installation and Startup...
Page 31: Programming Section
ECTION CREEN When the P-840LT Pour Point Analyzer is powered up, a short initialization program runs and either the Main Run Screen or Main Menu will appear. The Main Run Screen appears if the unit is programmed to power up in On-Line mode; the Main Menu appears if the unit is programmed to power up in the Off-Line mode.
Page 32: Advance Screen Key
This menu item provides access to the Alarms History sub-menu, which lists conditions which have activated one or more of the Analyzer’s alarm functions. It is described in further detail in Section 5 – Normal Operation. Touch the Enter key to access this sub-menu. P-840LT Pour Point Analyzer Programming...
Page 33: Validation
It is accessed from the Main Menu by touching the Enter key when this menu item is highlighted. To return to the Main Run screen, touch the Advance Screen key. P-840LT Pour Point Analyzer Programming...
Page 34: Setup Sub-Menu
UTPUT ETTINGS This menu item is used to program the Analyzer’s analog and digital outputs. It is also used to establish how pour point measurement information will be displayed on the Main Run screen. P-840LT Pour Point Analyzer Programming...
Page 35: Out 1 / 4-20 Out 2 / 4-20 Out 3
4-20 Out 1 / 4-20 Out 2 / 4-20 Out 3 — The P-840LT Pour Point Analyzer’s analog outputs (2 standard; one optional) can be programmed to output various types of information, as well as the range of the analog signal and an offset.
Page 36: Alarm Settings
Cycle — This menu item allows you to establish the maximum number of consecutive measurement cycles that can occur without detecting pour point before an alarm is activated. P-840LT Pour Point Analyzer Programming...
Page 37: Other Settings
Temperature Scale — This menu item allows you to select the scale on which temperature will be displayed (°F or °C). Valid EV — This is the expected pour point temperature. P-840LT Pour Point Analyzer Programming...
Page 38: Valid Bw
Cool Drag — This is the % power applied to the heater while the detection cell is cooling. It is intended to prevent the cryocooler from cooling the sample too rapidly. This setting should not be changed without first consulting the factory. P-840LT Pour Point Analyzer Programming...
Page 39: Customer Alarm
When Normal is selected, power will be applied to the relay when an alarm condition is detected; when Failsafe is selected, power will be removed from the relay when an alarm condition is detected. P-840LT Pour Point Analyzer Programming...
Page 40: State Table Setup
Cell Heat — This is used to preheat the sample prior to cooling and/or warm the sample after cooling. Return — This should always be the last step in the State table. It tells the Analyzer to return to step 1. P-840LT Pour Point Analyzer 4-10...
Page 41 02-01-2013 Factory Default State Table Step Data Flush Heat Wait Cool Return Return Return Return Return Return Return Return Return P-840LT Pour Point Analyzer 4-11 Programming...
Page 42: Time/Date Setup
(Hour/Minute/Second) which needs to change. Use the Up/Down Arrow Keys to change the value in the selected field. Touch the Enter key a second time to accept the new date entry. ACTORY ETUP This is a password protected sub-menu intended for factory use only. P-840LT Pour Point Analyzer 4-12 Programming...
Page 43: Normal Operation Section
Analyzer’s liquid crystal display. Measurement data are also output as analog and digital signals. Upon the application of power, the P-840LT runs a short initialization program and then displays either the Main Run screen or the Main Menu, depending on how the Standby mode has been set up (see Section 4 –...
Page 44 Temperature — The temperature of the detection cell. Message Line — Important operational messages, such as the detection of an alarm condition, initiation of a validation measurement, remote standby, etc. are displayed in this area. P-840LT Pour Point Analyzer Normal Operation...
Page 45: Signal Outputs
NALOG UTPUTS The P-840LT Pour Point Analyzer outputs analog signals proportional to the last measured values. The range of the analog signals is user-programmable (see Section 4 – Programming). The signal is updated at the end of the measurement cycle.
Page 46: Alarm Critical
Operational alarms are logged and may be accessed via the Alarms History sub-menu. To access this sub-menu, go to the Main Menu, select Alarms History, and touch Enter. The Alarms History screen will appear. To clear the alarm history, touch the Enter key when Reset is highlighted. P-840LT Pour Point Analyzer Normal Operation...
Page 47: Taking The Analyzer Off-Line
02-01-2013 AKING THE NALYZER The P-840LT Pour Point Analyzer may be taken off-line either locally from the front panel of the instrument or, if wired to do so, remotely via a contact closure from the control room. OCALLY To exit analysis from the instrument’s front panel, first access the Main Menu by touching the Advance Screen Key with the magnetic pencil and then select Status.
Page 48: Internal Sample Leak
Measurement and Control Enclosures. To restore power once the leak has been corrected and fluid removed from the Measurement Enclosure, press the Power Reset Button on the side of the Customer Connections Enclosure. P-840LT Pour Point Analyzer Normal Operation...
Page 49: Routine Maintenance & Service - Section
Cryocooler cooling medium Weekly ERVICE AND PERATIONAL HECKS The P-840LT Pour Point Analyzer incorporates a special Service screen from which the operator can perform a variety of verification and diagnostic functions, including: • Exercise the Analyzer’s various components • Output a fixed analog signal to check/calibrate external devices •...
Page 50: Sample
Arrow keys are used to change the value or status of the highlighted selection. PWM Load — This is the percent of maximum power applied to the heater. Heater — The detection cell is heated when this menu item is switched from OFF to ON. P-840LT Pour Point Analyzer Routine Maintenance & Service...
Page 51: Cooler
Pressure — This is the status of the differential pressure sensor. 1 = open, 0 = closed. DI — These values show the status of the Analyzer’s various digital inputs. 1 = open, 0 = closed. P-840LT Pour Point Analyzer Routine Maintenance & Service...
Page 52 02-01-2013 [THIS PAGE INTENTIONALLY BLANK] P-840LT Pour Point Analyzer Routine Maintenance & Service...
Page 53: Spare And Replacement Parts Section
Sample Hammer, 1 each ..................650044 Sample Hammer O-Ring, 2 each ............... 650045 Air Operated Bypass Valve, 2 each ..............650047 4 Way Solenoid, 2 each ..................650019 RTD Sensor, 2 each ................... 660001 P-840LT Pour Point Analyzer Spare and Replacement Parts...
Page 54: Replacement Parts
Pour Point Converter PCB Assembly, 1 each ................798024 Main Control PCB, 1 each ......................700318 Power Supply (+24 VDC), 1 each ....................620038 TE Driver PCB, 1 each ......................... 620079 Pour Point Analysis Module, 1 each ..................... 700520 P-840LT Pour Point Analyzer Spare and Replacement Parts...
