AutoMotionShade 4285 Quick Reference Manual

Pairing 1st gen remotes with 1st gen rf motors

Quick Reference Guide # 10

Pairing 1

Gen Remotes with 1

Note: The 3-inch white wire is antenna. Do not shorten the length of this wire.

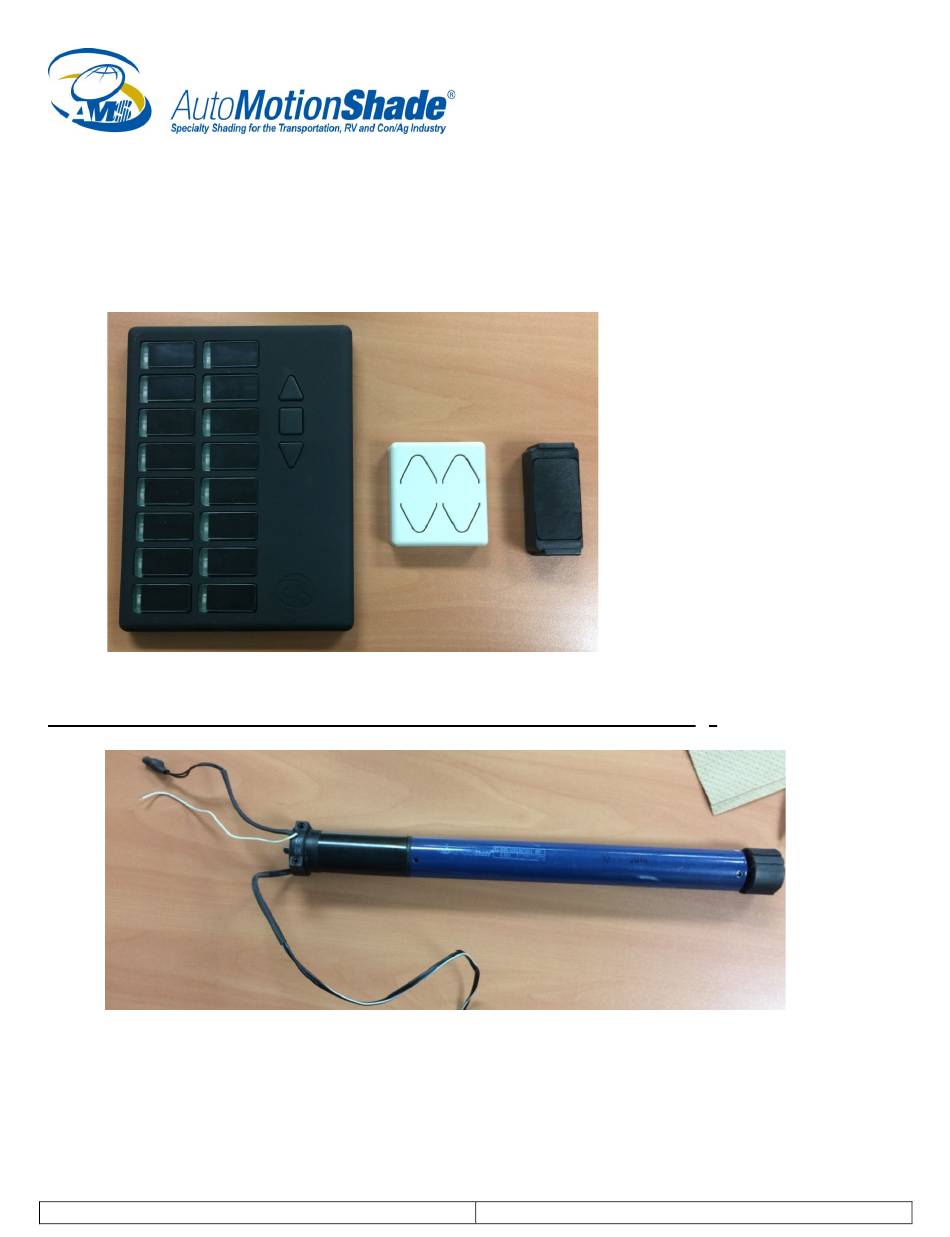

Pairing old Remote-transmitter with old RF-Motor, 4285

Note 1: for this motor you can NOT have a dash switch.

Note 2: For Wiring, solid Black wire to +12VDC and Black wire with white stripe to ground (Negative of battery).

First you need to delete old program on the on the motor. To delete, Press and hold the pushbutton on the

motor until motor jerks (back & forth), keep holding the button until it jerks again to confirm (totally two jerks).

411: R-1:09/18

Gen RF Motors 4285

and 4275

(F)

Effective Date: Sep 19, 2018

Table of Contents

Need help?

Do you have a question about the 4285 and is the answer not in the manual?

Page 1 4275 Note: The 3-inch white wire is antenna. Do not shorten the length of this wire. Pairing old Remote-transmitter with old RF-Motor, 4285 Note 1: for this motor you can NOT have a dash switch. Note 2: For Wiring, solid Black wire to +12VDC and Black wire with white stripe to ground (Negative of battery).
Page 2 To pair 1-channel or 2-channel remotewith a 4285 motor: 1. Press and hold motor pushbutton until it jerks once. 2. Now press Up & Down buttons on the remote together at same time. The motor confirms by jerking twice.
